6. AL , HSG ILL and HSG DMD Assembly:
6.1 Placed “AL” on the HSG DMD .The “raised surface” of “AL” shall toward “DMD direction”
(Fig 6-1)
6.2 Assemble ” HSG ILL Module” to HSG DMD and cover over on “AL”(Fig 6-2)

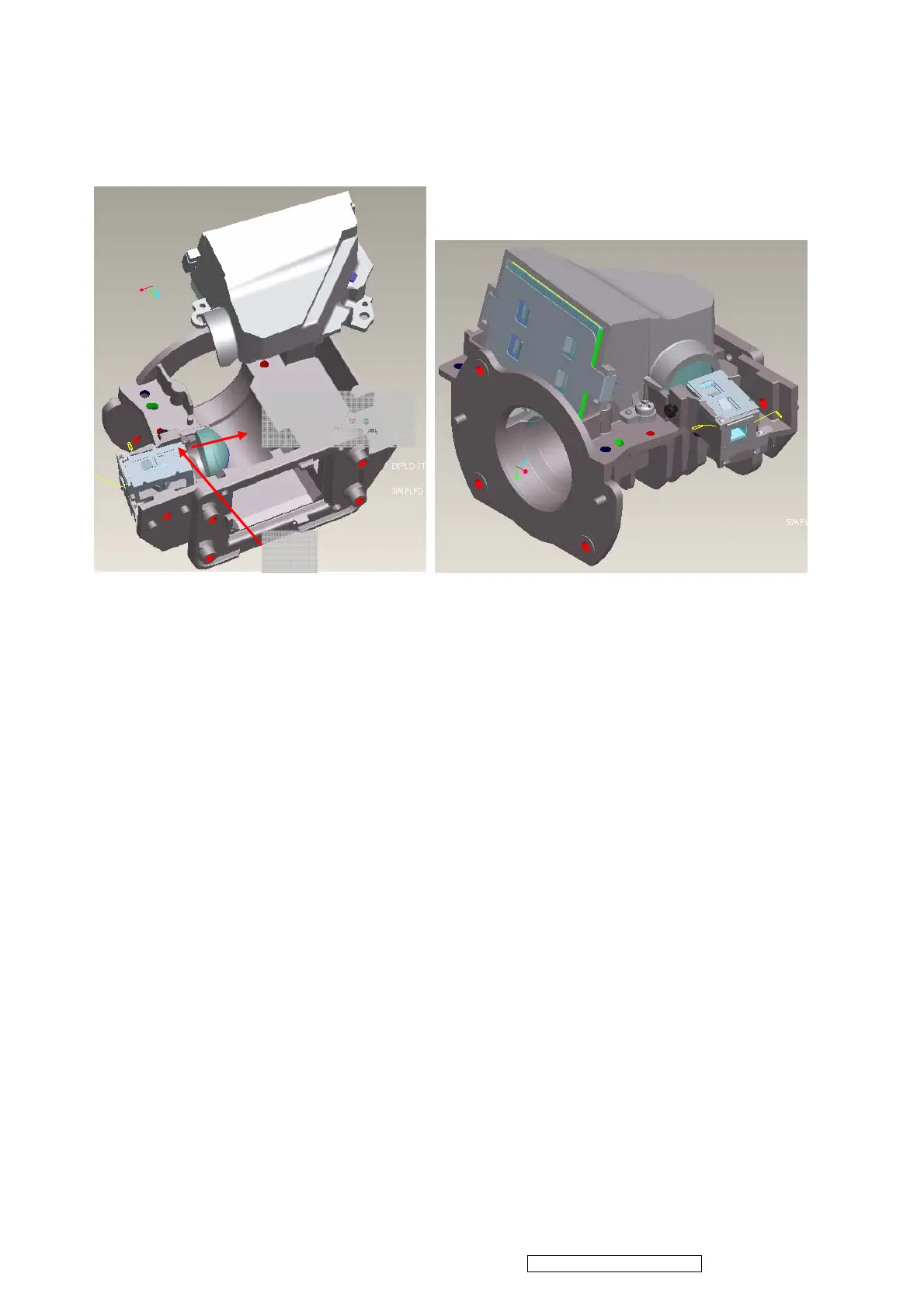

Figure 6-1 Figure 6-2
AL
DMD Direction
