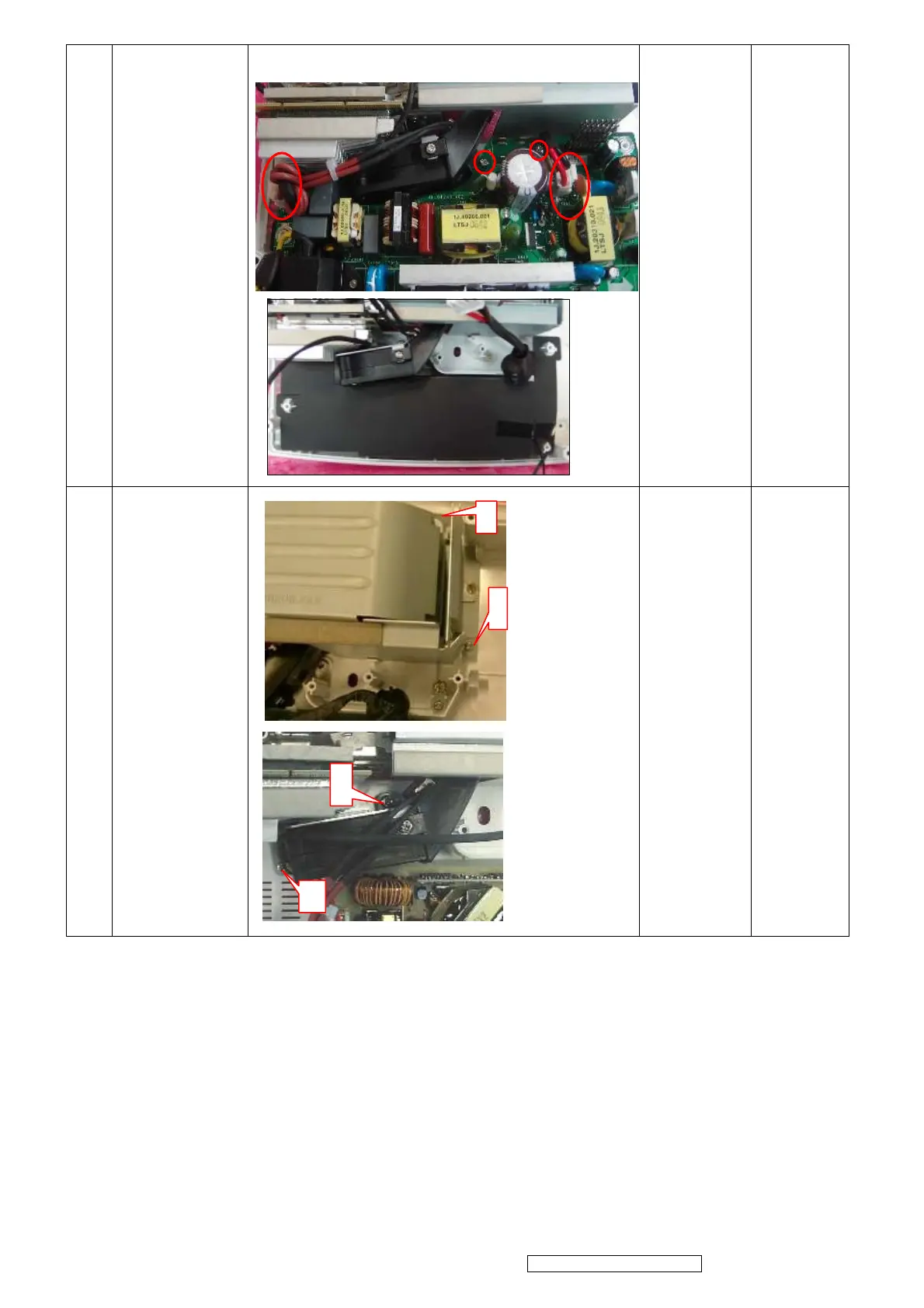

disassembly
the wire*2
and screw*2,
take off the
power BD and
ballast Mylar
screw*2;
power BD;
ballast mylar
11
disassembly
the screw*2,
take off the
lamp box;
disassembly
the screw*2,
take off the
blower fan
screw*4;
lamp box;
blower fan
2
1
2
1
