ViewSonic PX700HDH - Projection Dimensions; 16:9 Image on a 16:9 Screen

15

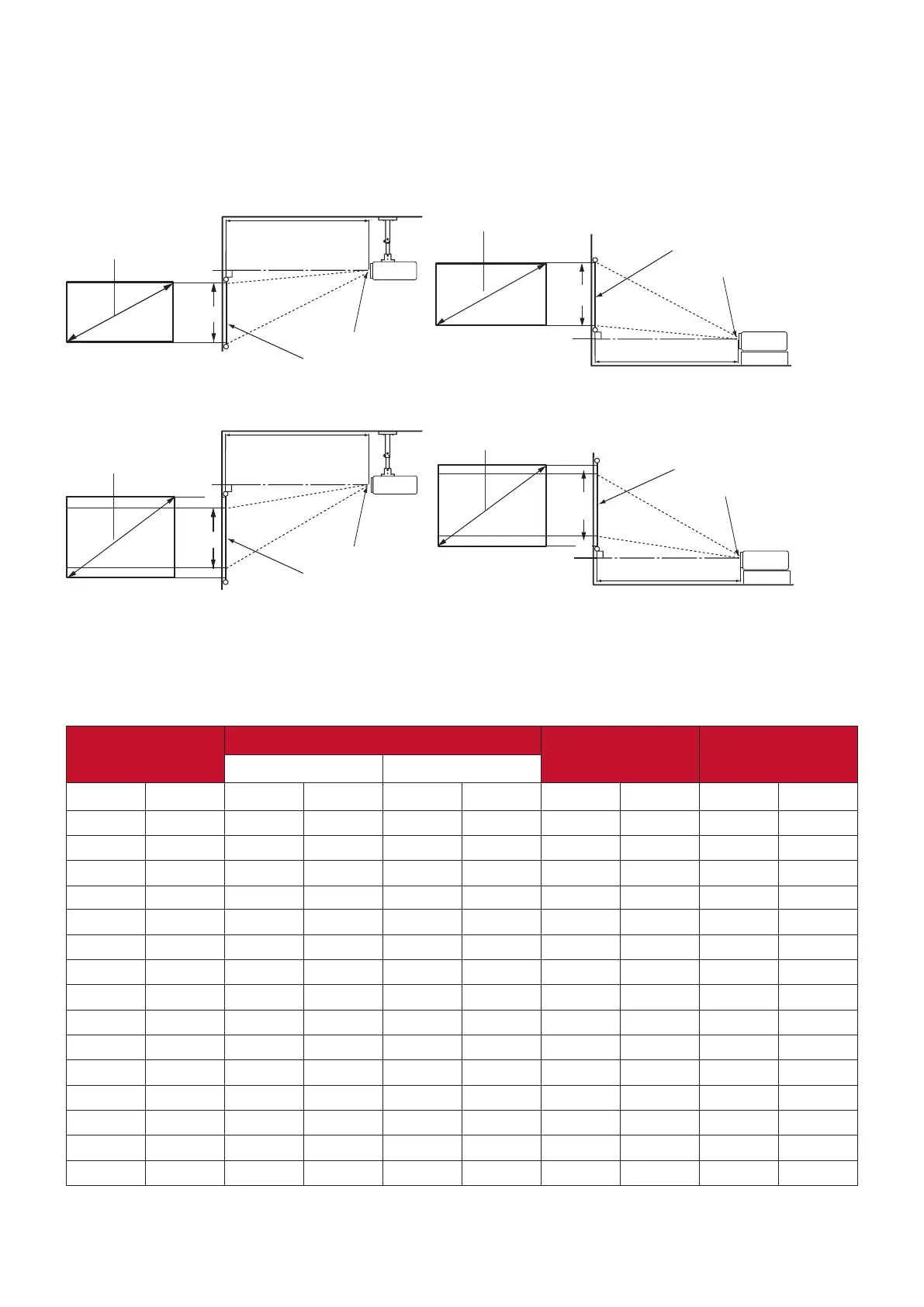

Projection Dimensions
NOTE: See “Specicaons” on page 54 for the nave display resoluon of this
projector.
• 16:9 Image on a 16:9 Screen
(a)
(d)
(c)
(b)
(e)
(f)
(a)
(c)
(b)
(e)
(f)
(d)
• 16:9 Image on a 4:3 Screen
(a)
(c)
(b)
(e)
(f)
(d)
(a)
(c)
(b)
(e)
(f)
(d)
NOTE: (e) = Screen
(f) = Center of Lens
16:9 Image on a 16:9 Screen
(a) Screen Size (b) Projection Distance (c) Image
Height
(d) Vertical
Offset
minimum maximum
in. mm in. mm in. mm in. mm in. mm
60 1524 77 1958 85 2154 29 747 2.4 59.8
70 1778 90 2284 99 2513 34 872 2.7 69.7
80 2032 103 2611 113 2872 39 996 3.1 79.7
90 2286 116 2937 127 3231 44 1121 3.5 89.7
100 2540 128 3263 141 3589 49 1245 3.9 99.6
110 2794 141 3589 155 3948 54 1370 4.3 109.6
120 3048 154 3916 170 4307 59 1494 4.7 119.5
130 3302 167 4242 184 4666 64 1619 5.1 129.5
140 3556 180 4568 198 5025 69 1743 5.5 139.5
150 3810 193 4895 212 5384 74 1868 5.9 149.4
160 4064 206 5221 226 5743 78 1992 6.3 159.4
170 4318 218 5547 240 6102 83 2117 6.7 169.4
180 4572 231 5874 254 6461 88 2241 7.1 179.3
190 4826 244 6200 269 6820 93 2366 7.5 189.3
200 5080 257 6526 283 7179 98 2491 7.8 199.2
