ViewSonic TD2230 User Manual

4
Quick Installation
1. Connect video cable
• Make sure both the display and computer are turned OFF.
• Remove rear panel covers if necessary.
• Connect the video cable from the display to the computer.
Macintosh users: Models older than G3 require a Macintosh adapter. Attach the
adapter to the computer and plug the video cable into the adapter.

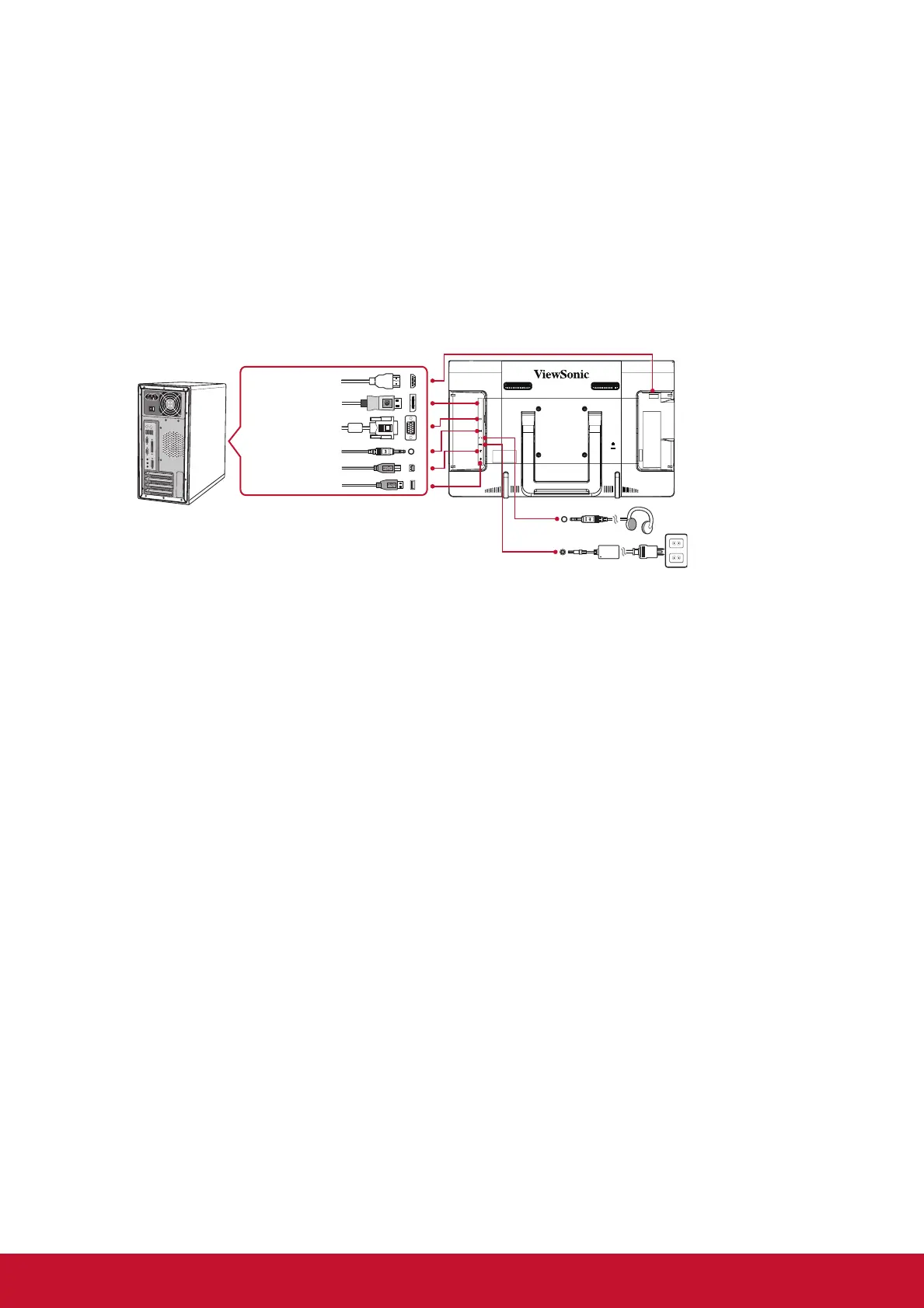

2. Connect power cord (and AC/DC adapter if required)
DP
IENJ
HDMI
DisplayPort
VGA
Audio In
USB UP
USB Down
Power Cord
Audio out
3. Turn ON the display and computer
Turn ON the display, then turn ON the computer. This sequence (display before
computer) is important.
NOTE: Windows users may receive a message asking them to install the INF
file. To download the file, visit the “Download” section of the monitor product
page on the ViewSonic website.
4. Windows users: Set the timing mode (example: 1024 x 768)
For instructions on changing the resolution and refresh rate, see the graphics
card’s user guide.
5. Installation is complete. Enjoy your new ViewSonic display!

ViewSonic TD2230 Specifications

General

Panel type	ADS
Pixel pitch	0.24825 x 0.24825 mm
Screen shape	Flat
Display diagonal	21.5 \
Touch technology	Multi-touch
Touchscreen type	Multi-user
Display brightness	250 cd/m²
Display technology	LCD
Vertical scan range	50 - 76 Hz
Maximum refresh rate	76 Hz
Horizontal scan range	24 - 82 kHz
Touchscreen technology	Projected capacitive system
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display diagonal (metric)	54.6 cm
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Number of simultaneous touchpoints	10
Certification	cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
Product color	Black
Display viewable area (HxV)	476.64 x 268.11 mm
Cables included	AC, Audio (3.5mm), HDMI, USB
Audio input	1
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	2
Tilt angle range	20 - 70 °
Number of OSD languages	12
Panel mounting interface	100 x 100 mm
AC input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	25 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 90 %
Package depth	114 mm
Package width	550 mm
Package height	371 mm
Package weight	4700 g
NVIDIA G-SYNC	No
Other operating systems supported	Android
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
RMS rated power	6 W
Sustainability certificates	CE, EPEAT Bronze, ErP, REACH, RoHS
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	47 mm
Width (with stand)	490 mm
Height (with stand)	299 mm
Weight (with stand)	3580 g
