Wall Mounting (Optional)
NOTE: For use only with UL Listed Wall Mount Bracket with minimum weight/load:
9.9kg.
To obtain a wall-mounting kit or height adjustment base, contact ViewSonic
®
or
your local dealer. Refer to the instructions that come with the base mounting kit.
To convert your display from a desk-mounted to a wall-mounted display, do the
following:
1. Verify that the power button is turned OFF, then disconnect the power cord.
2. Lay the display face down on a towel or blanket.
3. Remove the base (removal of screws might be required).

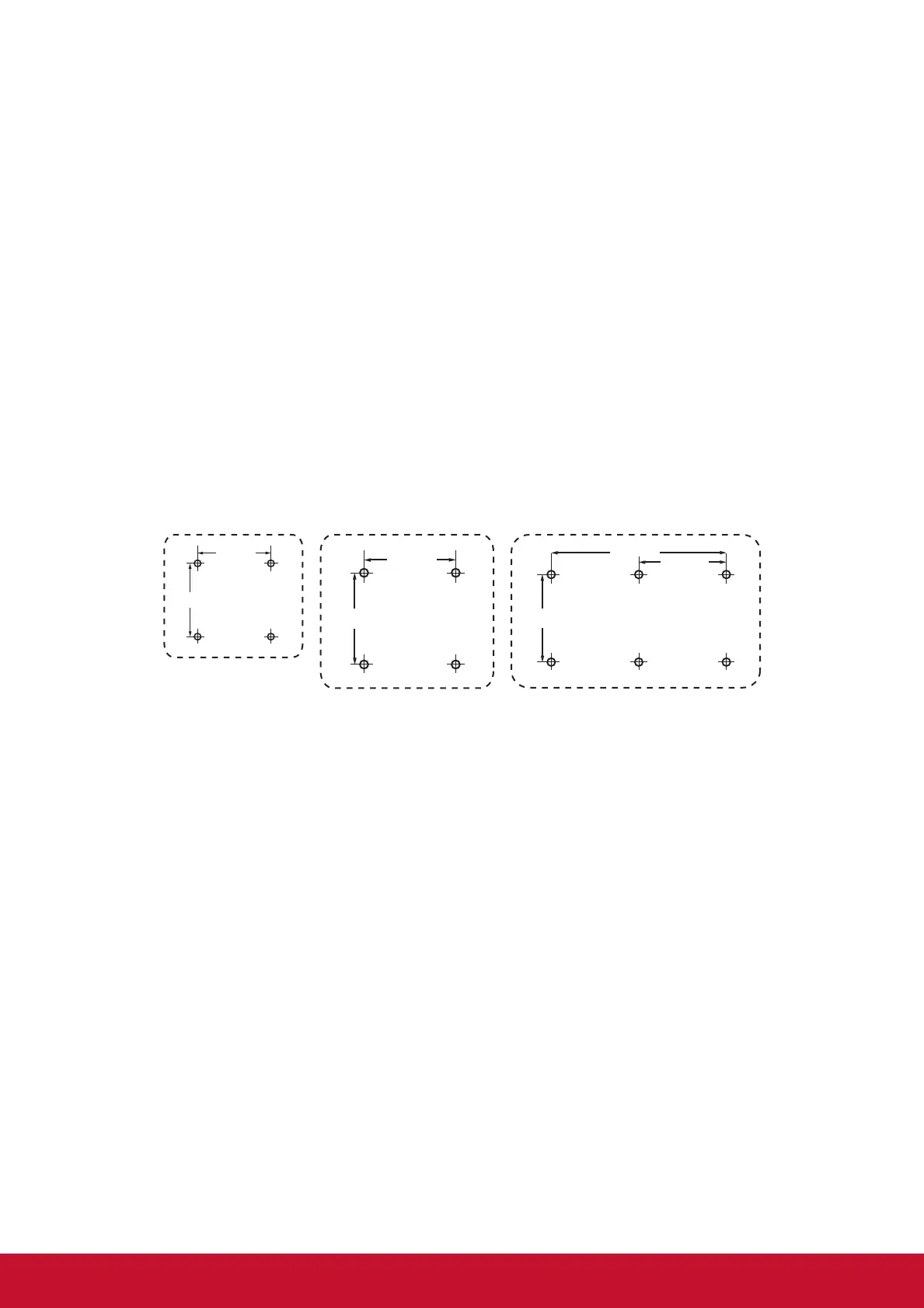

4. Find and identify one of the following VESA mount interfaces (a,b,c) located
on the back of your display (refer to the “Specifications” page of your display's
mounting interface). Attach the mounting bracket from the VESA compatible wall
mounting kit using screws of the appropriate length.
a. b. c.
75mm
75mm
100mm
100mm
100mm
100mm
200mm
5. Attach the display to the wall, following the instructions in the wall-mounting kit.

ViewSonic TD2230 Specifications

General

Panel type	ADS
Pixel pitch	0.24825 x 0.24825 mm
Screen shape	Flat
Display diagonal	21.5 \
Touch technology	Multi-touch
Touchscreen type	Multi-user
Display brightness	250 cd/m²
Display technology	LCD
Vertical scan range	50 - 76 Hz
Maximum refresh rate	76 Hz
Horizontal scan range	24 - 82 kHz
Touchscreen technology	Projected capacitive system
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display diagonal (metric)	54.6 cm
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Number of simultaneous touchpoints	10
Certification	cULus, FCC-B, ICES003, Energy Star 8.0, EPEAT Bronze, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BIS, CCC, China RoHS, China Energy Label, CECP
Product color	Black
Display viewable area (HxV)	476.64 x 268.11 mm
Cables included	AC, Audio (3.5mm), HDMI, USB
Audio input	1
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	2
Tilt angle range	20 - 70 °
Number of OSD languages	12
Panel mounting interface	100 x 100 mm
AC input voltage	100-240 V
Power supply type	AC
AC input frequency	50 - 60 Hz
Power consumption (typical)	25 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	20 - 90 %
Package depth	114 mm
Package width	550 mm
Package height	371 mm
Package weight	4700 g
NVIDIA G-SYNC	No
Other operating systems supported	Android
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
RMS rated power	6 W
Sustainability certificates	CE, EPEAT Bronze, ErP, REACH, RoHS
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	47 mm
Width (with stand)	490 mm
Height (with stand)	299 mm
Weight (with stand)	3580 g
