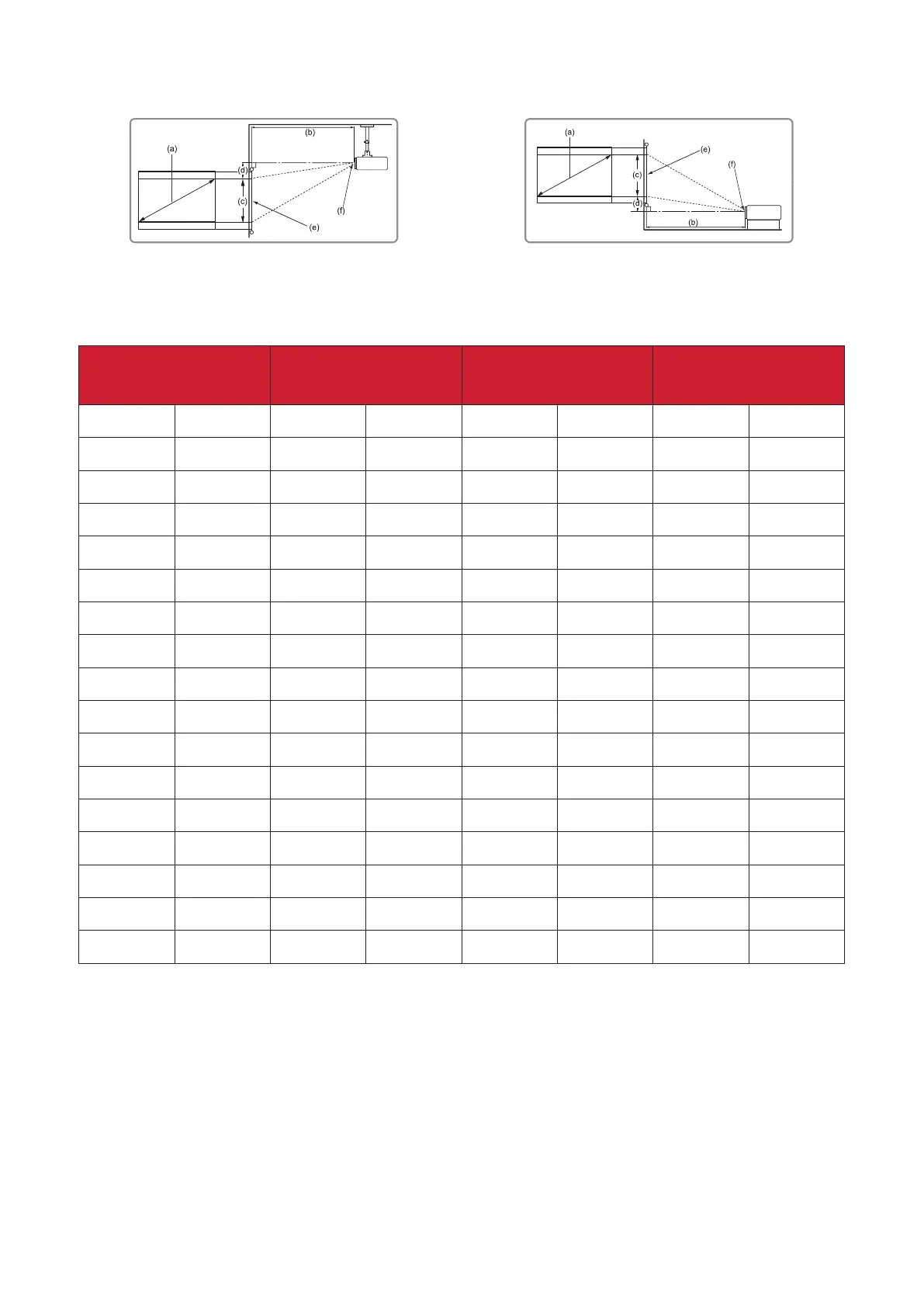

16:10 Image on a 4:3 Screen
NOTE:
• (e) = Screen (f) = Center of Lens
(a) Screen Size
(b) Projecon
Distance
(c) Image Height (d) Vercal Oset
in.
mm
in.
mm
in.
mm
in.
mm
35 889 14.59 371 17.50 445 2.17 55
40 1016 16.67 423 20.00 508 2.48 63
50 1270 20.84 529 25.00 635 3.10 79
60 1524 25.01 635 30.00 762 3.72 94
70 1778 29.18 741 35.00 889 4.34 110
80 2032 33.34 847 40.00 1016 4.96 126
90 2286 37.51 953 45.00 1143 5.58 142
100 2540 41.68 1059 50.00 1270 6.20 157
110 2794 45.85 1165 55.00 1397 6.82 173
120 3048 50.02 1270 60.00 1524 7.44 189
130 3302 54.18 1376 65.00 1651 8.06 205
140 3556 58.35 1482 70.00 1778 8.68 220
150 3810 62.52 1588 75.00 1905 9.30 236
200 5080 83.36 2117 100.00 2540 12.40 315
250 6350 104.20 2647 125.00 3175 15.50 394
300 7620 125.04 3176 150.00 3810 18.60 472
NOTE:
• These gures are for reference purposes only. Please refer to the actual
projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector
to physically test the projecon size and distance using the actual projector
before you permanently install it.
