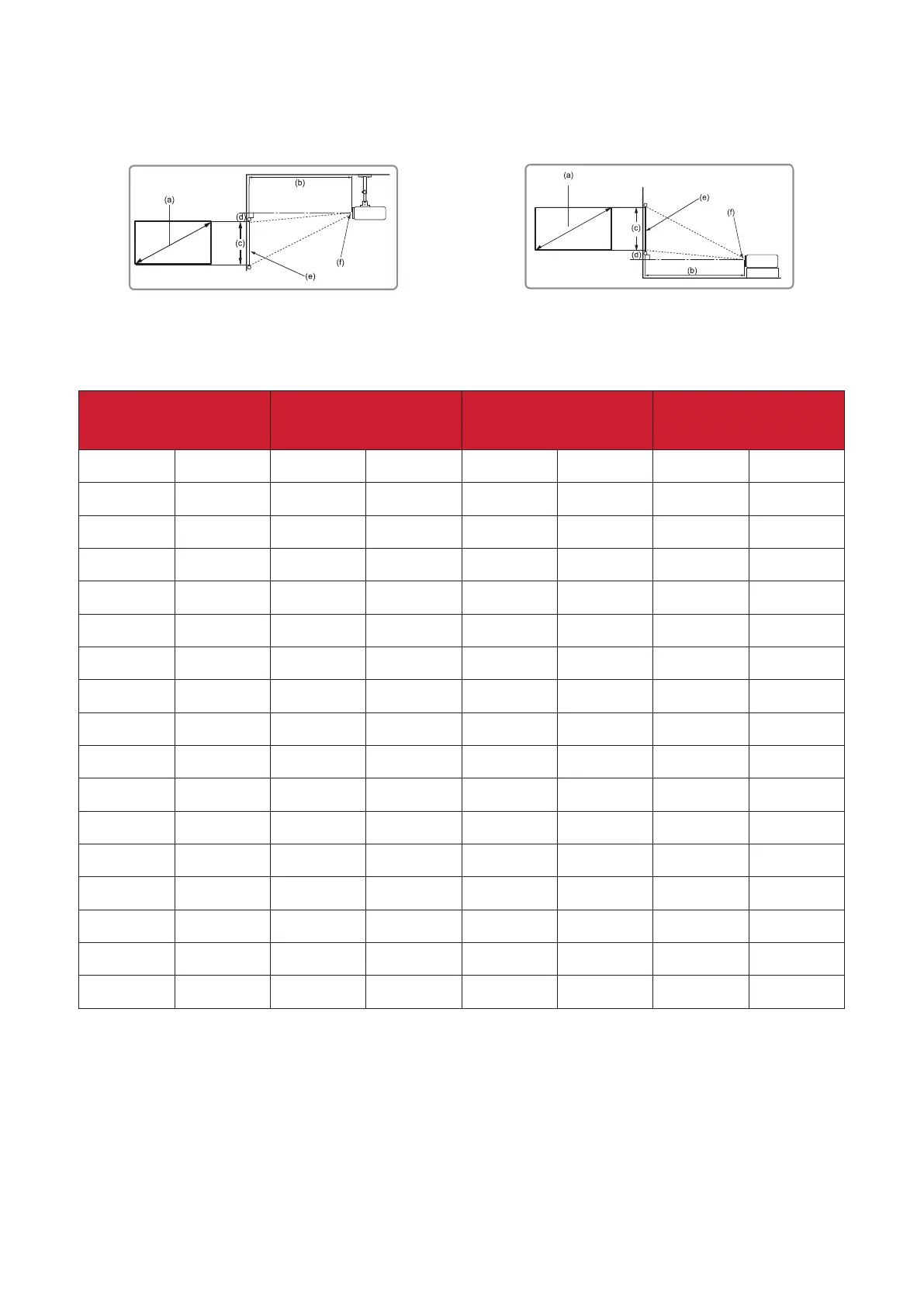

Projecon Dimensions - LS711HD
16:9 Image on a 16:9 Screen
NOTE:
• (e) = Screen (f) = Center of Lens
(a) Screen Size
(b) Projecon
Distance
(c) Image Height (d) Vercal Oset
in.
mm
in.
mm
in.
mm
in.
mm
35 889 15.13 384 17.16 436 2.75 70
40 1016 17.29 439 19.61 498 3.14 80
50 1270 21.62 549 24.51 623 3.92 100
60 1524 25.94 659 29.42 747 4.71 120
70 1778 30.26 769 34.32 872 5.49 139
80 2032 34.58 878 39.22 996 6.28 159
90 2286 38.91 988 44.12 1121 7.06 179
100 2540 43.23 1098 49.03 1245 7.84 199
110 2794 47.55 1208 53.93 1370 8.63 219
120 3048 51.88 1318 58.83 1494 9.41 239
130 3302 56.20 1427 63.73 1619 10.20 259
140 3556 60.52 1537 68.64 1743 10.98 279
150 3810 64.85 1647 73.54 1868 11.77 299
200 5080 86.46 2196 98.05 2491 15.69 398
250 6350 108.08 2745 122.57 3113 19.61 498
300 7620 129.69 3294 147.08 3736 23.53 598
NOTE:
• These gures are for reference purposes only. Please refer to the actual
projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector
to physically test the projecon size and distance using the actual projector
before you permanently install it.
