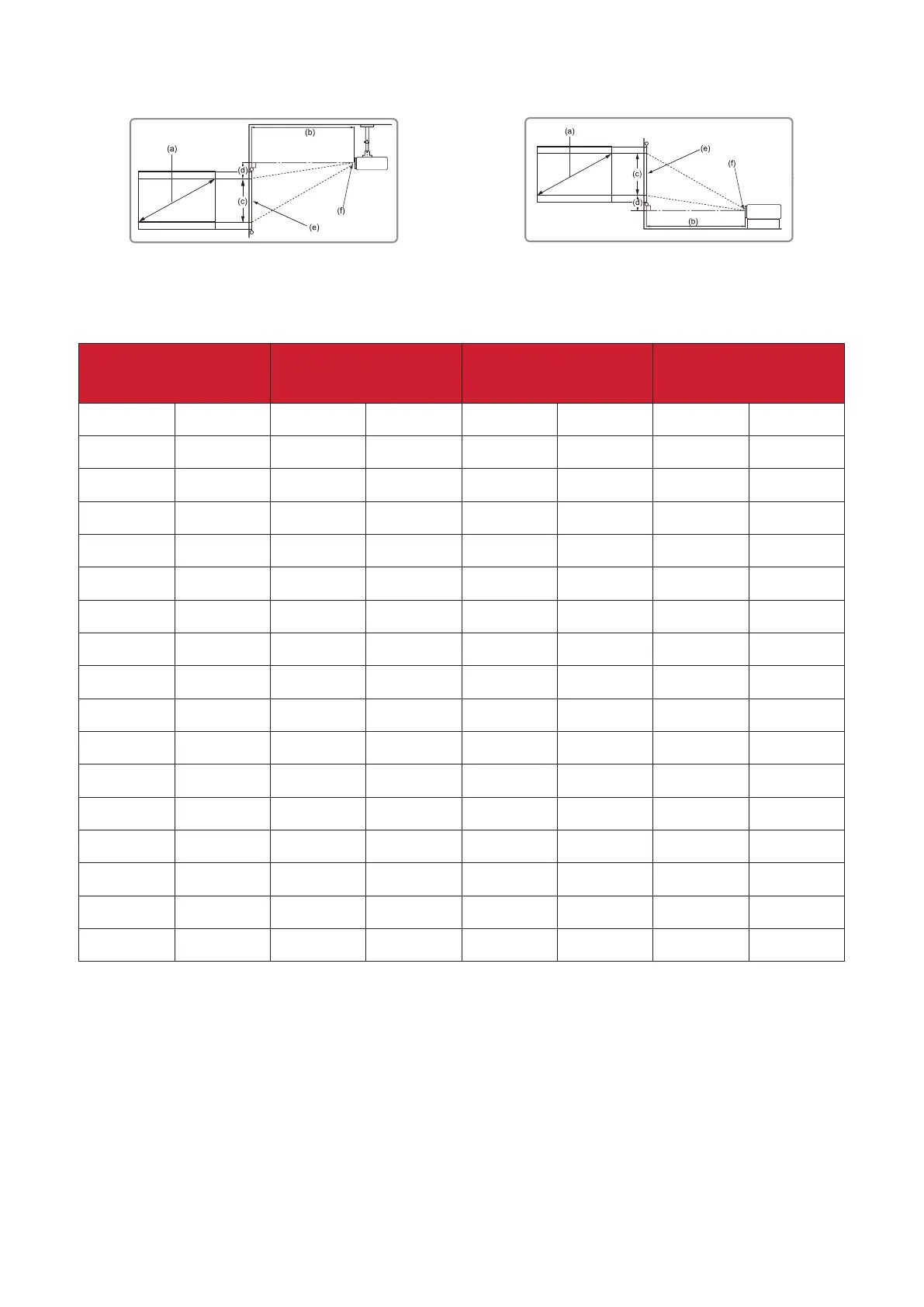

16:9 Image on a 4:3 Screen
NOTE:
• (e) = Screen (f) = Center of Lens
(a) Screen Size
(b) Projecon
Distance
(c) Image Height (d) Vercal Oset
in.
mm
in.
mm
in.
mm
in.
mm
35 889 13.89 353 15.75 400 2.52 64
40 1016 15.87 403 18.00 457 2.88 73
50 1270 19.84 504 22.50 572 3.60 91
60 1524 23.81 605 27.00 686 4.32 110
70 1778 27.78 706 31.50 800 5.04 128
80 2032 31.74 806 36.00 914 5.76 146
90 2286 35.71 907 40.50 1029 6.48 165
100 2540 39.68 1008 45.00 1143 7.20 183
110 2794 43.65 1109 49.50 1257 7.92 201
120 3048 47.62 1209 54.00 1372 8.64 219
130 3302 51.58 1310 58.50 1486 9.36 238
140 3556 55.55 1411 63.00 1600 10.08 256
150 3810 59.52 1512 67.50 1715 10.80 274
200 5080 79.36 2016 90.00 2286 14.40 366
250 6350 99.20 2520 112.50 2858 18.00 457
300 7620 119.04 3024 135.00 3429 21.60 549
NOTE:
• These gures are for reference purposes only. Please refer to the actual
projector for the precise dimensions.
• It is recommended that if you intend to permanently install the projector
to physically test the projecon size and distance using the actual projector
before you permanently install it.
