Viking 24" - VIH Island Hoods

19

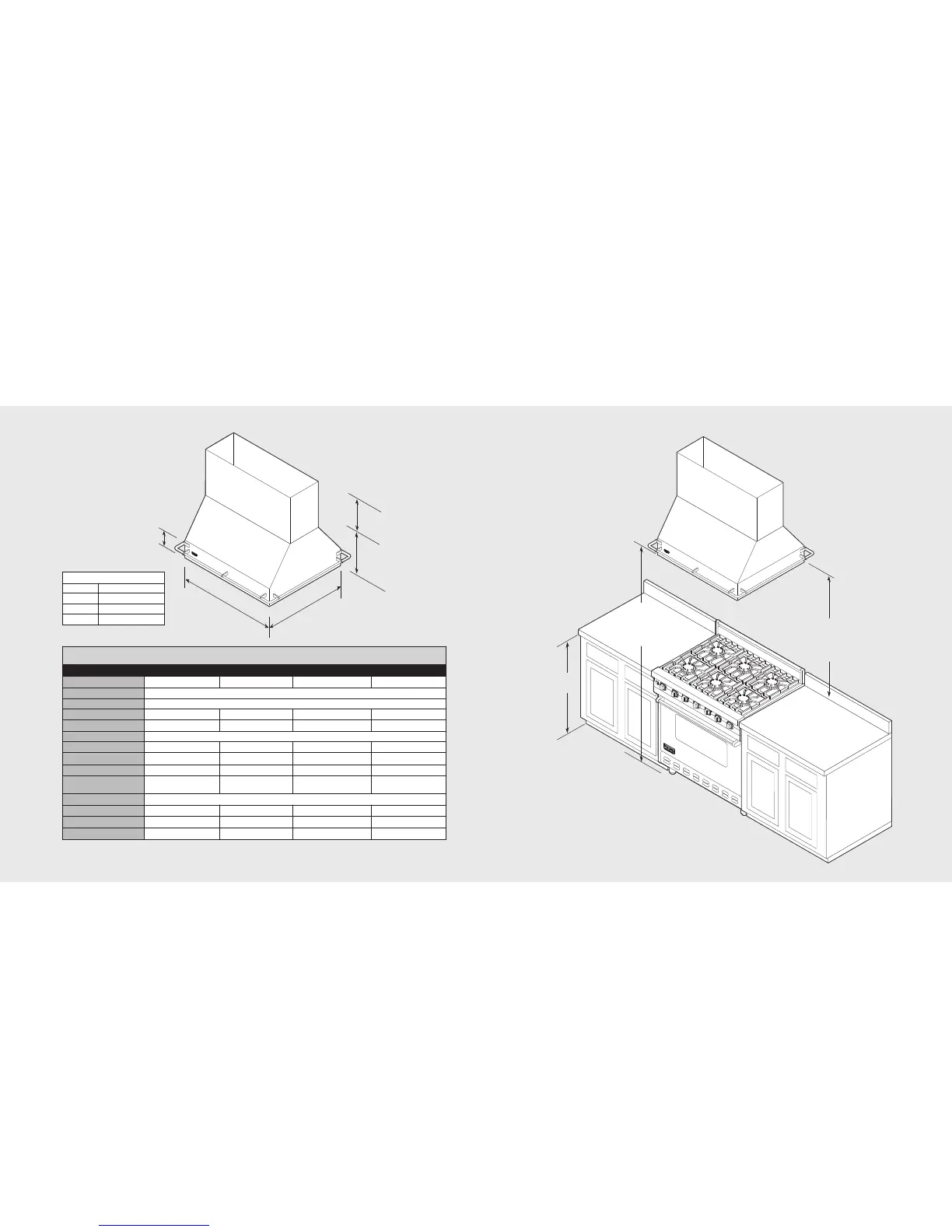

Dimensions & Specifications
18
3
0
”
(7
6
.2
c
m
)
A
1
8
”
(4
5
.7
c
m)
6
”
(1
5.
2
cm
)
A (Hood width)
36”W. 35-7/8” (91.1 cm)
42”W. 41-7/8” (106.4 cm)
54”W. 53-7/8” (136.8 cm)
66”W. 65-7/8” (167.3 cm)
1
2
”
(3
0
.5
c
m)
(VIH Island Hoods 36”, 42”, 54”, & 66”)
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.
Max duct run is 50 ft.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs. Max duct run is 75 ft.
NOTE: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-
wire with ground. An interior- or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
3
0”
m
in
.
(
7
6.
2
c
m
)
to
36
”
m
a
x
.
(
9
1.
4
c
m
)
6
6
”m
in
.
(16
7.6
c
m)
t
o
7
2
”m
ax
.
(18
2.9
c
m)
3
6”
(
91
.
4
c
m)
Clearance Dimensions
(VIH Island Hoods)
NOTE: Optional duct cover sold separately.
VIH Island Hoods
Description 36” 42” 54” 66”
Duct cover width
35-7/8” (91.1 cm) 41-7/8” (106.4 cm) 53-7/8” (136.8 cm) 65-7/8” (167.3 cm)
Duct cover depth
12” (30.5 cm)
Duct cover height
12” (30.5 cm)
Number of lights
4 4 6 8
Number of filters
4 4 6 8
Heat lamps
N/A
Interior ventilator kits
VINV600/1200* VINV600/1200* VINV1200* VINV1200*
Exterior ventilator kits
DEV900/1200* DEV900/1200*/1500** DEV1200*/1500** DEV1200*/1500**
In-line ventilator kits
DIL900/1200 DIL900/1200 DIL1200 DIL1200
Interior duct size
7” (17.8 cm)/
10” (25.4 cm)
7” (17.8 cm)/
10” (25.4 cm)
10” (25.4 cm) 10” (25.4 cm)
Exterior duct size
10” (25.4 cm)
Interior—Maximum amps
4.6/7.7 4.6/7.7 8.5 9.3
Exterior—Maximum amps
7.4/4.7 7.4/4.7/5.5 5.5/6.2 6.3/7.1
In-Line—Maximum amps
4.7/6.5 4.7/6.5 7.3 8.1
