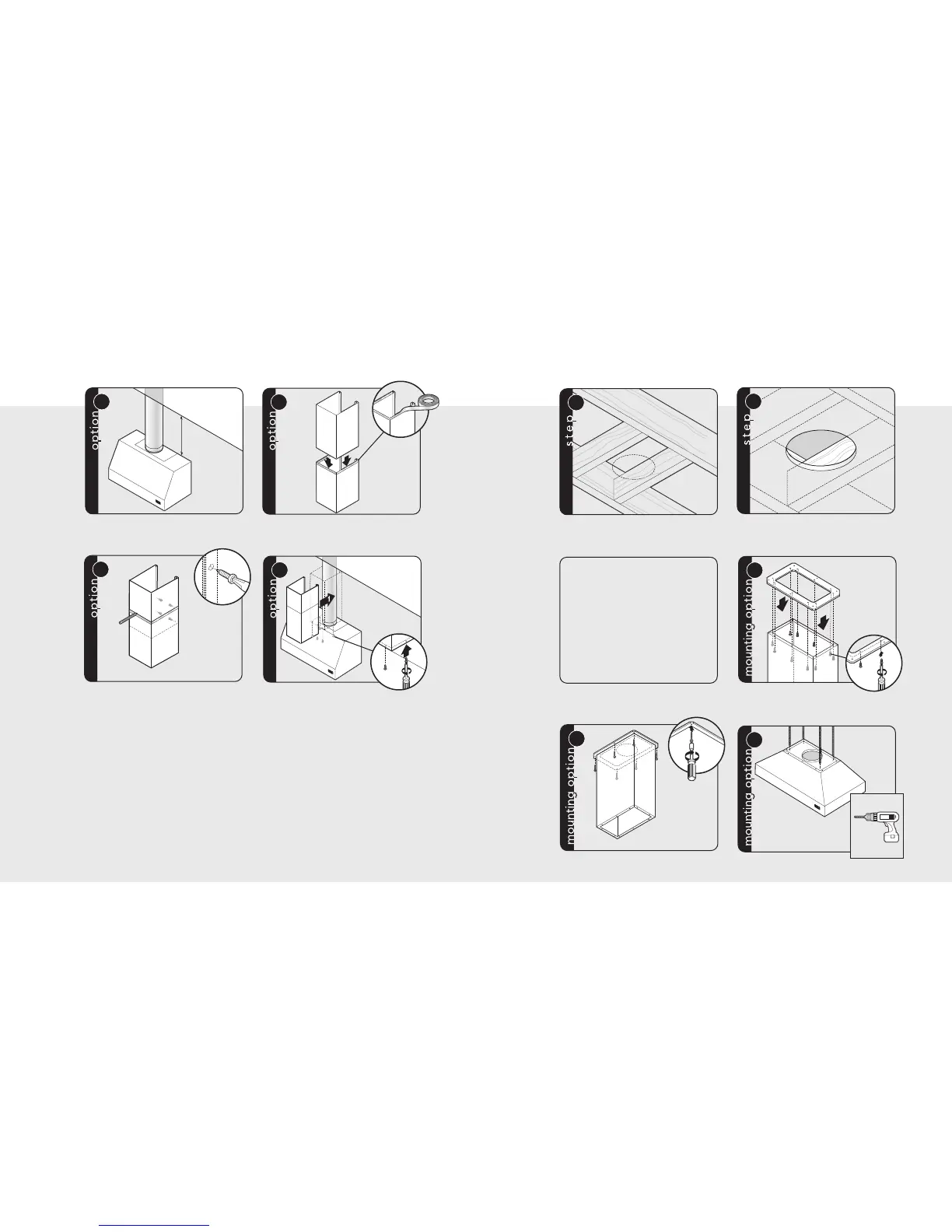

Viking 24" - Duct Cover Option (VCWH Chimney Wall Hoods); Installation (VIH;VCIH Island Hoods)

44 45
Check framing where cutout will be.
NOTE: 200 lb. limit.
Cut appropriate size hole in ceiling. Either 7” or 10”
depending on your specific unit and ventillator kit.
1
2
Mounting options:
Using duct cover with ceiling mounting
bracket. (Option A - VCIH only)
Using threaded rod for additional support.
(Option B)
Attaching hood directly to soffit or
duct cover.
(Skip to step 3)
Installation (VIH/VCIH Island Hoods)
A1
Attach duct cover to optional ceiling mounting bracket.
Attach duct cover to ceiling. The ceiling bracket can be
hidden by using a locally supplied trim.
A2
5/1
6”
nut
dri
ver
B1
Additional support option. Drill holes in all four corners
for threaded rod and run rods from hood to ceiling.
3
4
2
Place duct cover top inside duct cover base and lower until
desired height is found. Mark height. Use the retaining
nuts and bolts to fasten in place and remove tape.
Slide the duct cover in place and fasten from inside
canopy using the sheet metal screws provided.
1
2
Measure distance from ceiling to canopy.
Tape to avoid scratching.
Duct Cover Option (VCWH Chimney Wall Hoods)
