Description of Operation (con’t)
Lockout
The control will lockout if any self-checks fail during normal operation. Also, the control will lockout if it failed to ignite
gas after the selected number of ignition attempts or ignition recycles. In lockout the valve and ignition means are
turned off. The control must be manually reset by cycling bake or broil off and back on.
F
lame with Gas Valve Off
If there is proof of flame for ten seconds with the gas valve off, the control will go to lockout. If there is flame for less
than ten seconds, the control will reset.

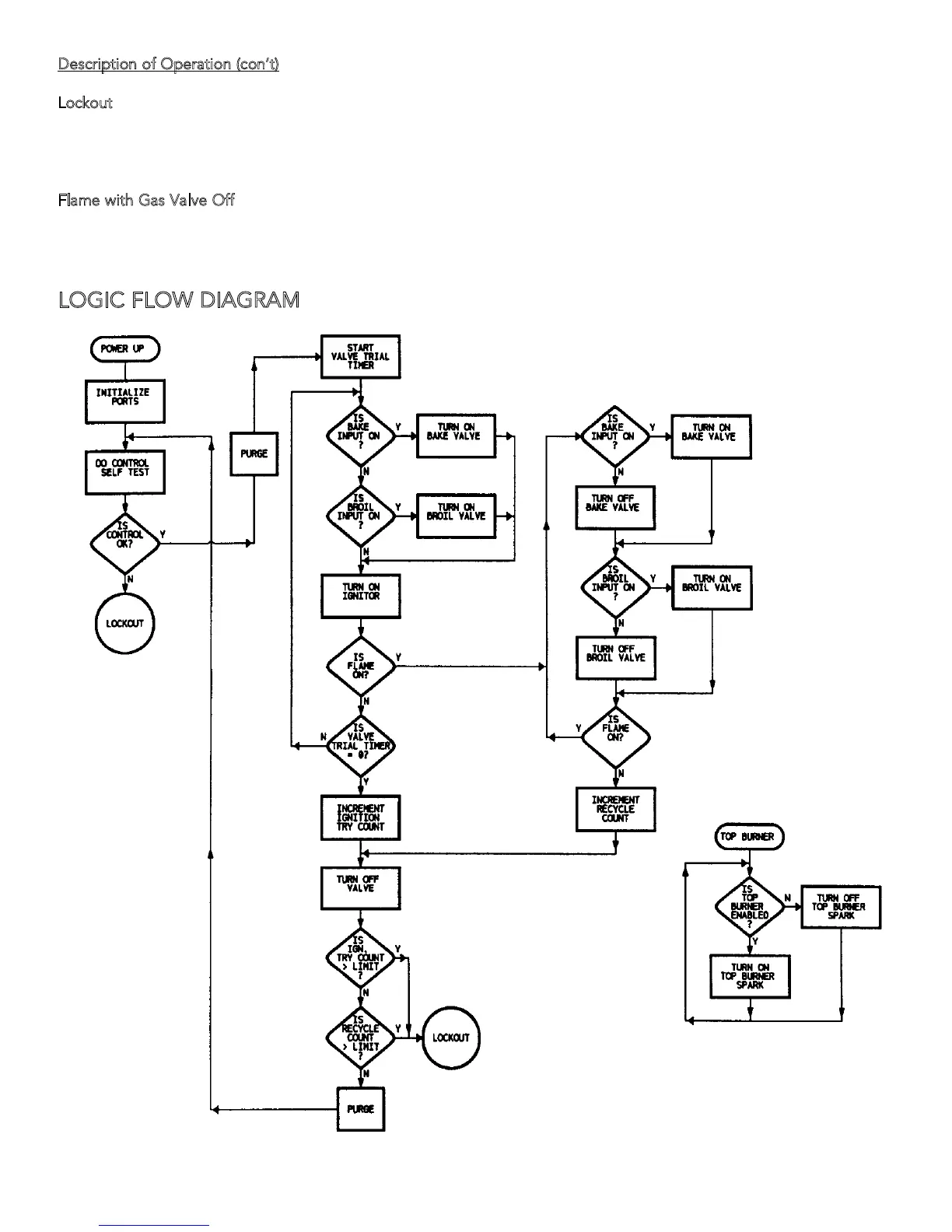

LOGIC FLOW DIAGRAM
To Next Page
