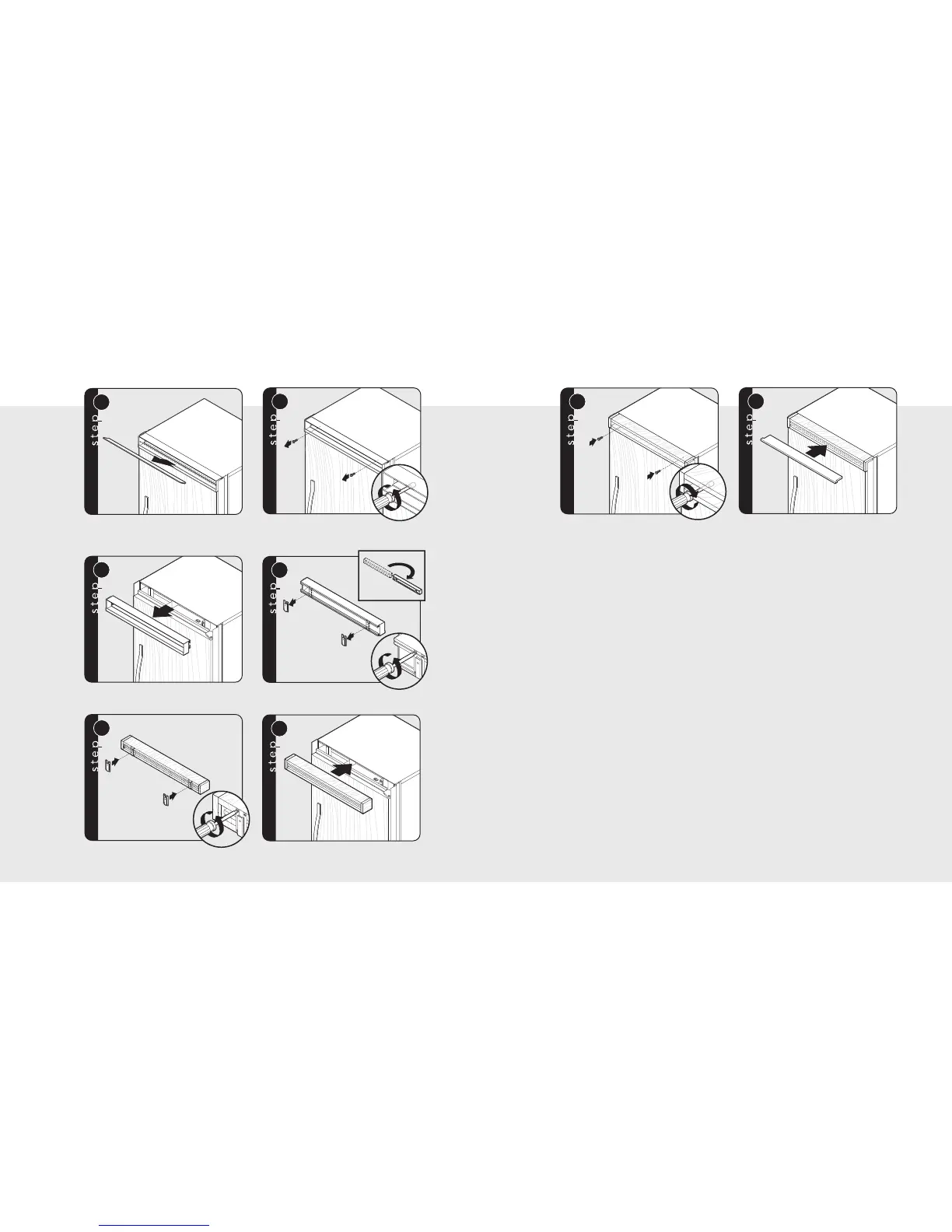

Viking DFBB363 - Custom Grille Installation; Grille Assembly Installation

53
1
2
Remove air grille center blade.
Remove two 1/4” (.6 cm) screws with a magnetic
extended screwdriver at least 8” (20.3 cm) long.
3
4
Pull air grille assembly forward.
Remove two mounting brackets from the grille air
assembly.
5
6
Using eight screws removed from the mounting brackets,
attach mounting brackets to the custom wood grille using
predrilled pilot holes. (See grille overlay specifications for
proper alignment and pilot hole placement.)
Insert custom air grille assembly.
Custom Grille Installation
54
Install two 1/4” (.6 cm) screws with a magnetic
extended screwdriver at least 8” (20.3 cm) long.
Install custom air grille center blade.
7
8
