Viking DFBB363 - Door Stop Adjustment; Side-by-Side and Bottom Mount Models; Kickplate Installation; Panel and Screw Attachment

61

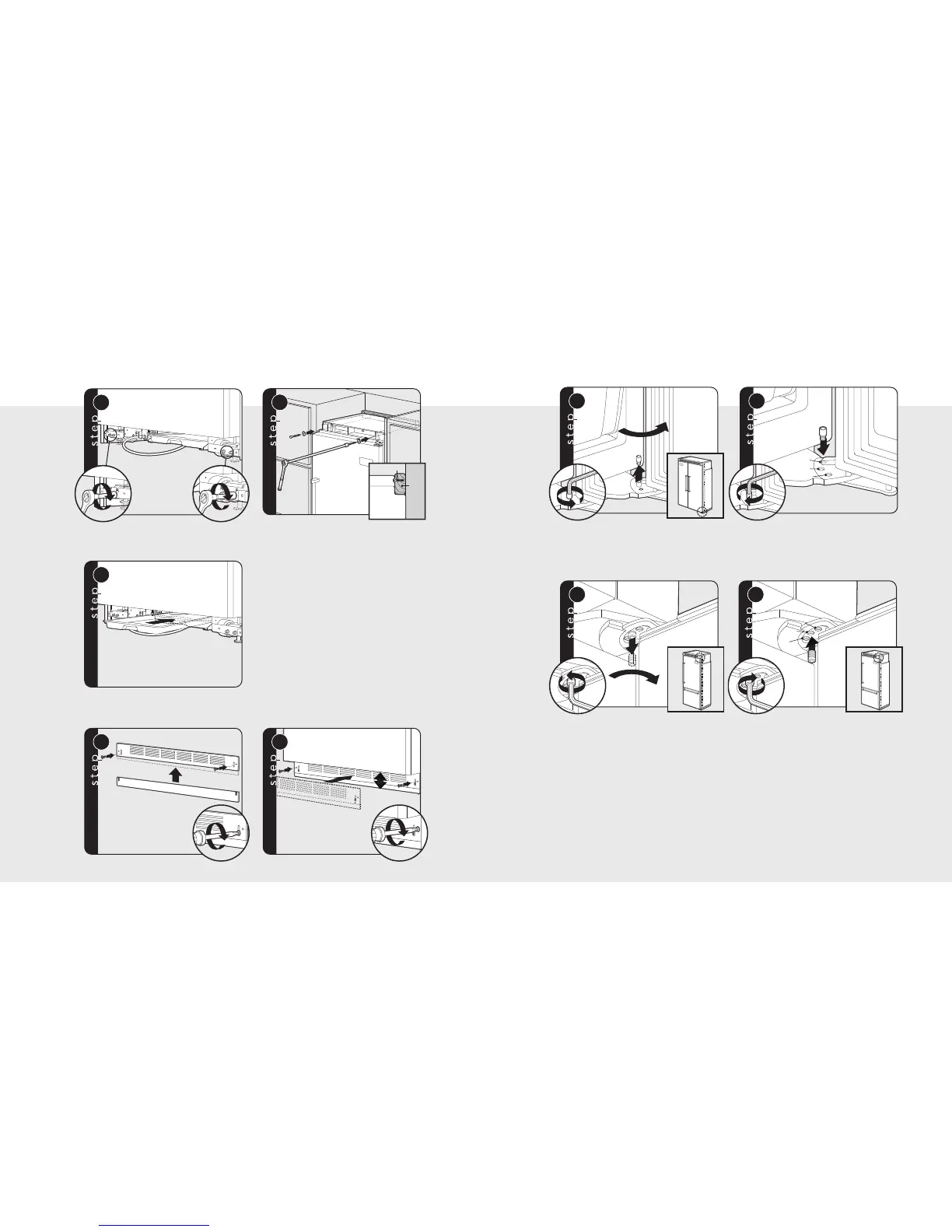

Lift unit off rollers to desired height and level unit using
a 5/16” head wrench.
Note: DO NOT use an electric device. Overtightening
can cause damage.
Attach positive secure self-tapping bolts to 2x4
using a 22” extension.
Verify that drain pan is installed and aligned.
Align holes on both ends of louvered panels and insert
screws.
Using a Phillips screwdriver, attach the
kickplate to the unit and adjust to desired height.
15
W
all
2 x 4
Refrigerator
Screw
16
17
1
2
18
2
1
3
19
Kickplate Installation
62
3
1
2
20
Open refrigerator door so door stop and shoulder
screw are accessible.
Note: Shoulder screw should be in 110˚ door opening position.
Remove shoulder screw and place in 90˚ or
120˚ position.
3
1
2
22
1
2
23
110˚110˚110˚
90˚
120˚120˚120˚
Open refrigerator door so door stop and
shoulder screw are accessible.
Note: Shoulder screw should be in 110˚ door opening position.
Remove shoulder screw and place in
90˚ or 120˚ position.
Door Stop Adjustment (Side-by-Side)
Door Stop Adjustment (Bottom Mount)
1
2
21
110˚
120˚
90˚
