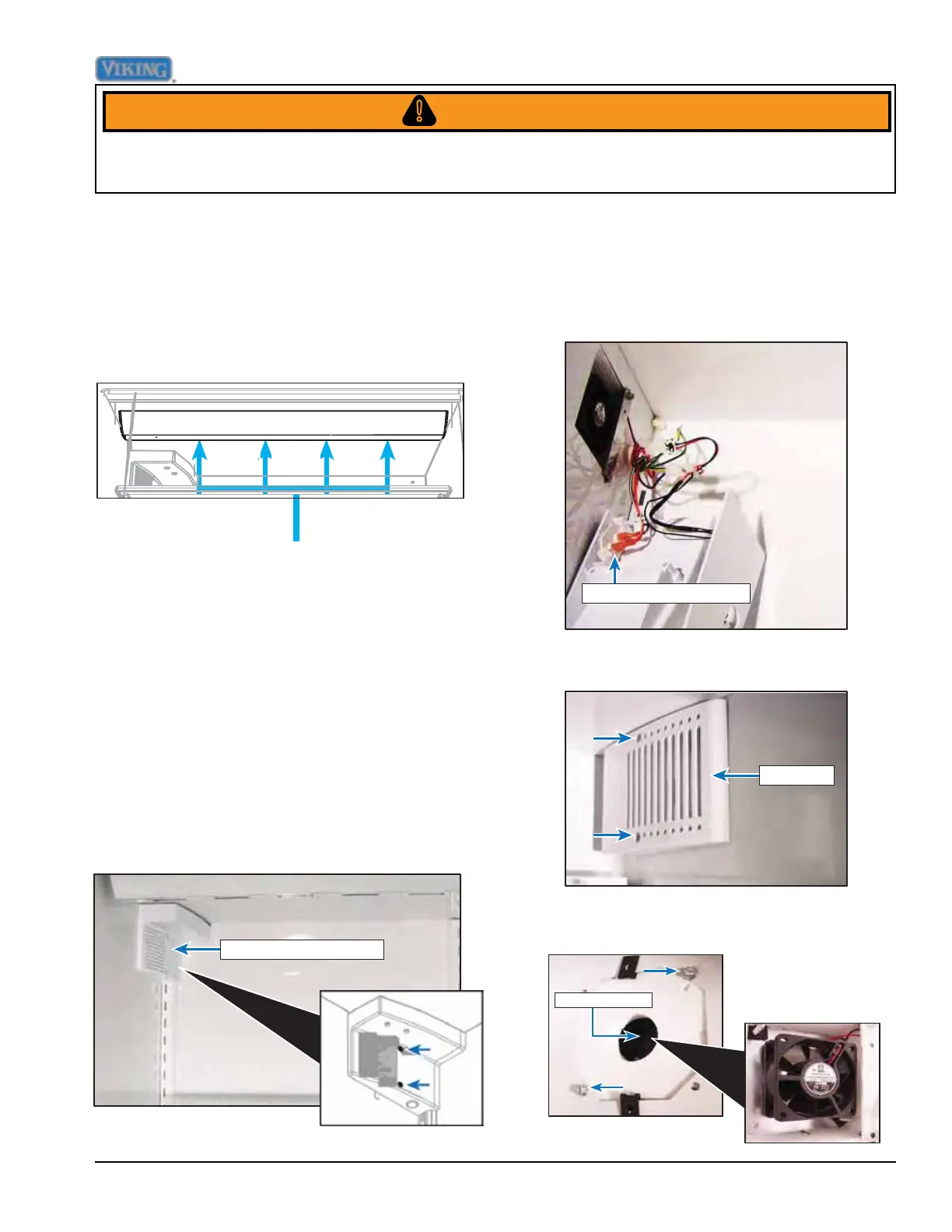

Disassembly
©2012 Viking Preferred Service 19
WARNING!
1. To access the fan, open the refrigerator
door and remove the upper shelf.
Remove (2) screws securing fan cover.
2. Lower fan cover to expose fresh food fan
and disconnect wiring.
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power source to unit, unless
test procedures require power to be connected. Ensure all ground wires are connected before certifying unit as
repaired and/or operational.
Fresh Food Fan Assembly
To check bulb, verify lament is not broken,
resistance in the bulb, and voltage is
supplied to the socket.
The unit uses 40 watt bulbs to light the unit.
The bulbs are located at the top of unit.
To access bulbs, remove light cover and bulb
is accessible.
Light Assembly
Fresh Food fan cover
The Side-by-Side units uses a fresh food fan to
circulate air through the refrigerator compartment
The fresh food fan is wired in parallel with the cross
over fan. When the board calls for the fan to operate,
24 VDC is sent to the fan via the E1 (Purple) at the
H.V. Board.
3. Open freezer door and remove (2) screws
securing air cover.
Fresh Food thermistor
Bulbs
Air cover
4. Remove (2) screws securing fresh food
fan and repair/replace fan.
Fresh food fan
