Service Procedures
44 ©2012 Viking Preferred Service

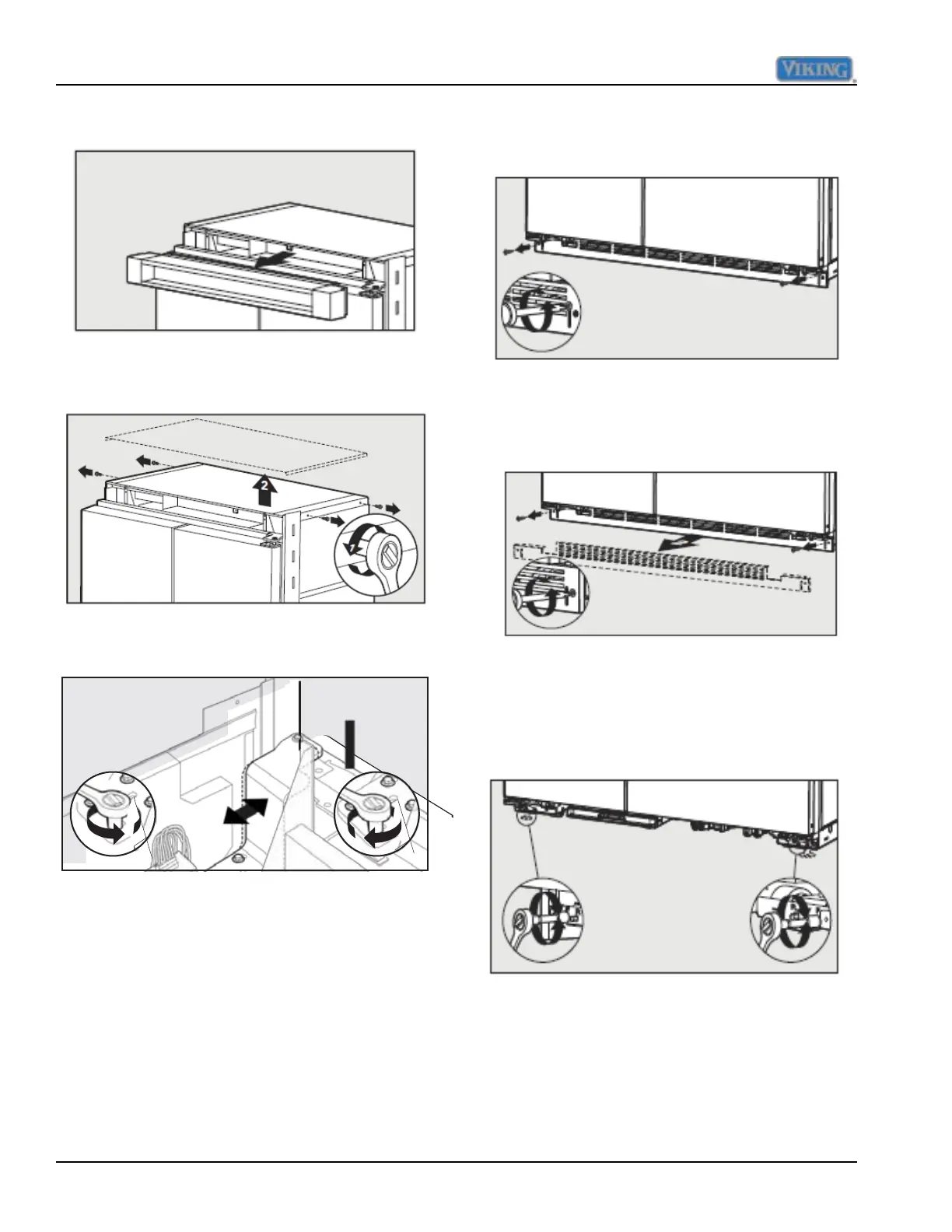

Height Adjustment
Removal of the kickplate allows access
to rollers and stabilizing legs for height
adjustment.
Note: DO NOT use an electric device. Over
tightening can cause damage.
3. Using a 5/16” head wrench, turn the front
(F) adjustment screws to raise or lower
the front of the refrigerator.
2. Remove upper kickplate screws using a
Phillips screwdriver. Remove kickplate
assembly.
3. Remove grille assembly.
4. Remove four side screws and remove unit
top.
5. Loosen the four hinge screws. Adjust door.
6. Reverse procedure for reinstallation.
1. Remove lower kickplate screws using a
Phillips screwdriver.
To Next Page
