Service Diagnostics and Procedures–Disassembly
WARNING
To avoid risk of electrical shock, personal injury, or death, disconnect electrical power to unit using power
switch before servicing. Wires removed during disassembly must be replaced on proper terminals to insure
correct earth ground and polarization. After servicing, reconnect power using power switch.

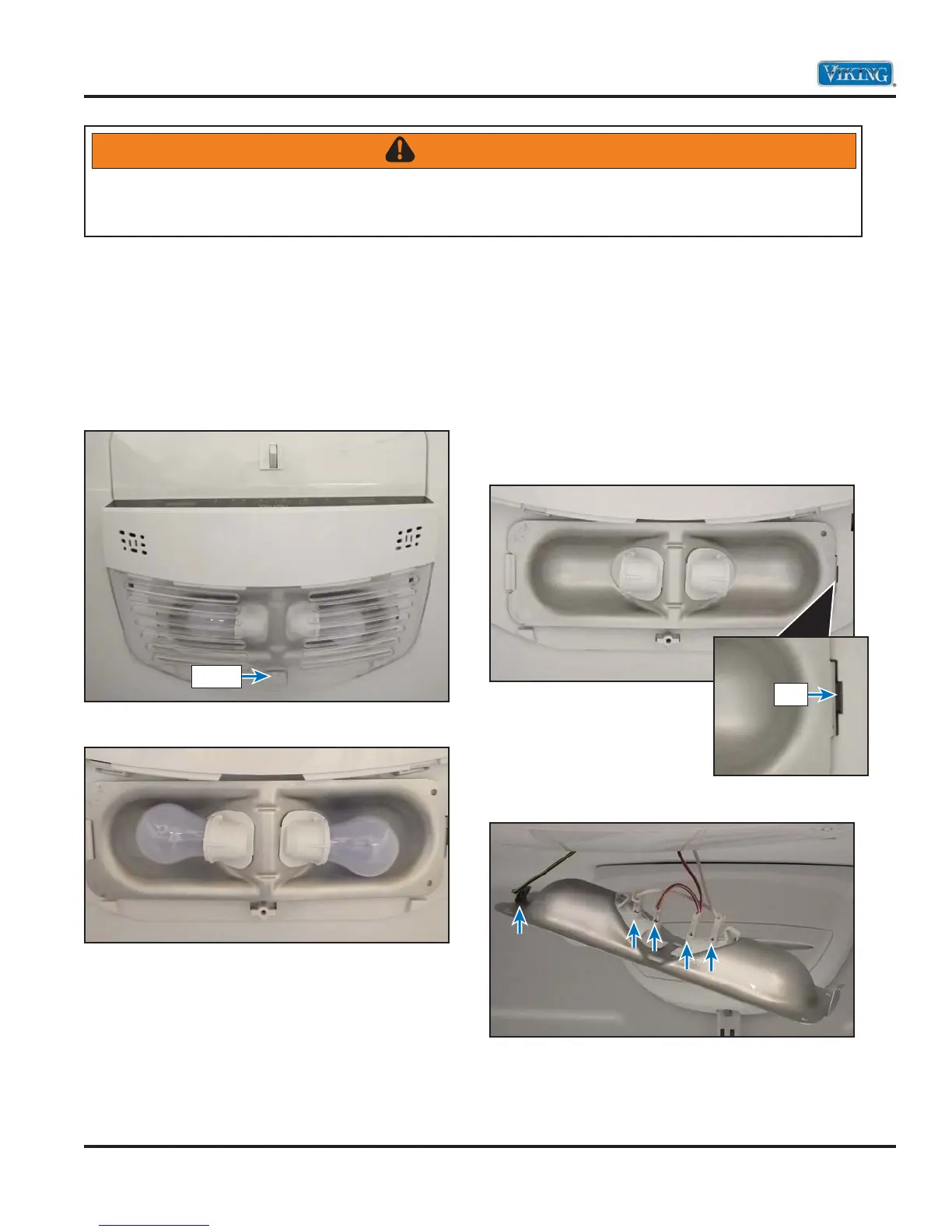

Refrigerator Light Bulb
The unit uses standard 40W, 120 VAC light bulbs to
illuminate the refrigerator compartment.
To access the light bulb:
1. Open fresh food door, loosen mounting screw
and slide cover to rear to release holding tabs.
2. Replace light bulb.
3. Reverse procedure to reinstall cover
Refrigerator Light Housing
To access light housing:
1. Open doors and remove shelves.
2. Remove light bulb cover and light bulbs (see
Refrigerator Light Bulb section at left).
3. Using a screw driver, press tab on the right
side of light housing and lower housing into
refrigerator cabinet.
4. Disconnect wiring.
5. Replace or repair as necessary.
6. Reverse procedure to reinstall.
Screw
Tab
