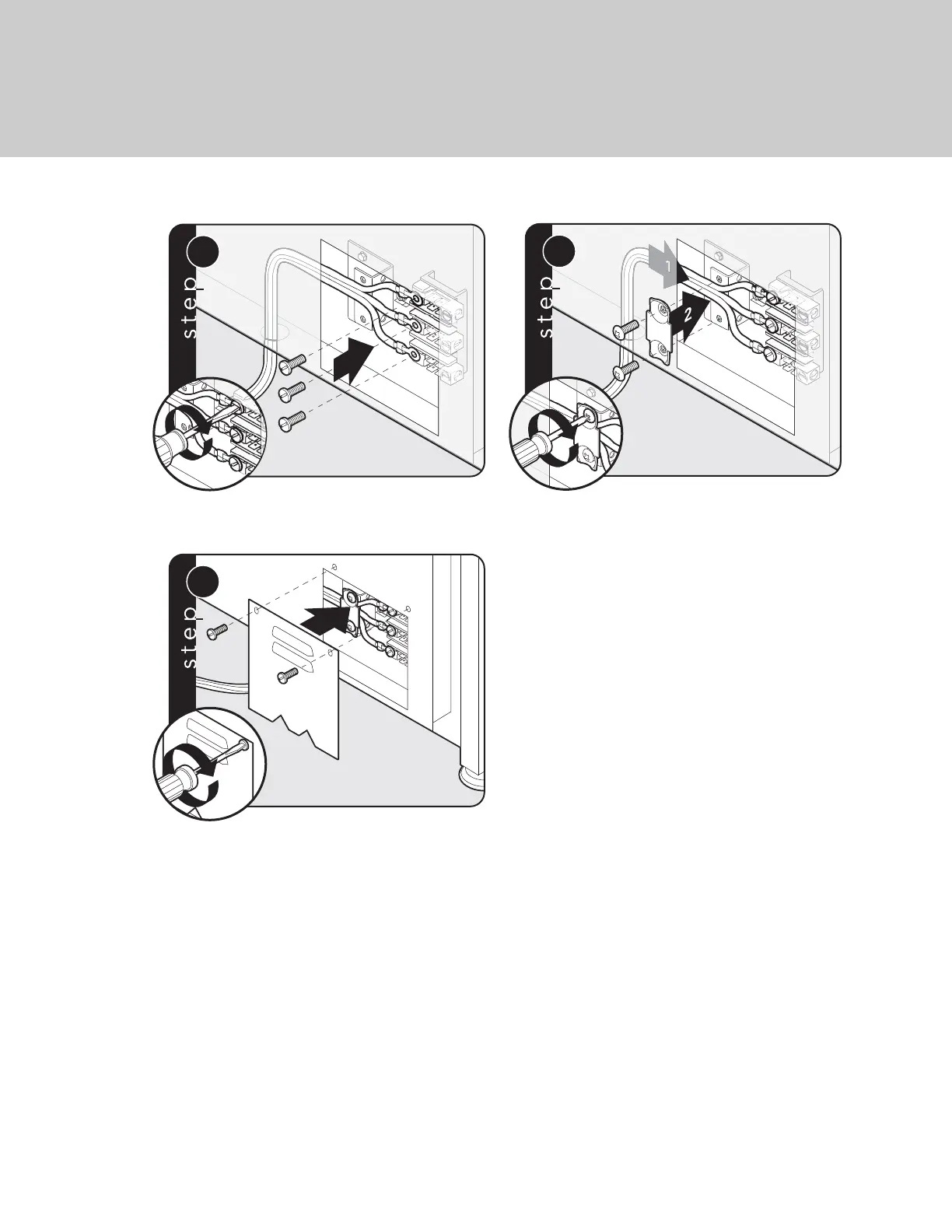

Attach line #1 (red) and line #2 (black)
leads to outside terminals. Attach neutral wire (white)
to center terminal on the terminal block.
Push supply cord toward terminal
block to relieve strain, reattach supply cord strain relief
bracket over supply cord.
