Viking VGR736 - Anti-Tip Device Installation

4
Attach bracket with
mounting hardware provided.
22
1
Measurement (A)
Measurement (A)
Measurement (A)
+1/4”
+1/4”
(.64 cm)
(.
64 cm)
Measurement (A)
+1/4” (.64 cm)
X
2
Measure from floor to bottom
of the anit-tip opening located on the back of range.
This will be measurement (A).
Locate anti-tip bracket on rear wall with the top left corner at
measurement (A) plus 1/2” (1.3 cm) from the floor and “X” from
where the right side of range (facing range) is to be located.
WARNING
TIPPING HAZARD
To reduce the risk of property
damage or personal injury;
install anti-tipping device
provided in accordance with
the installation instructions
in this document. Device
must be engaged properly to
prevent product from tipping
over.

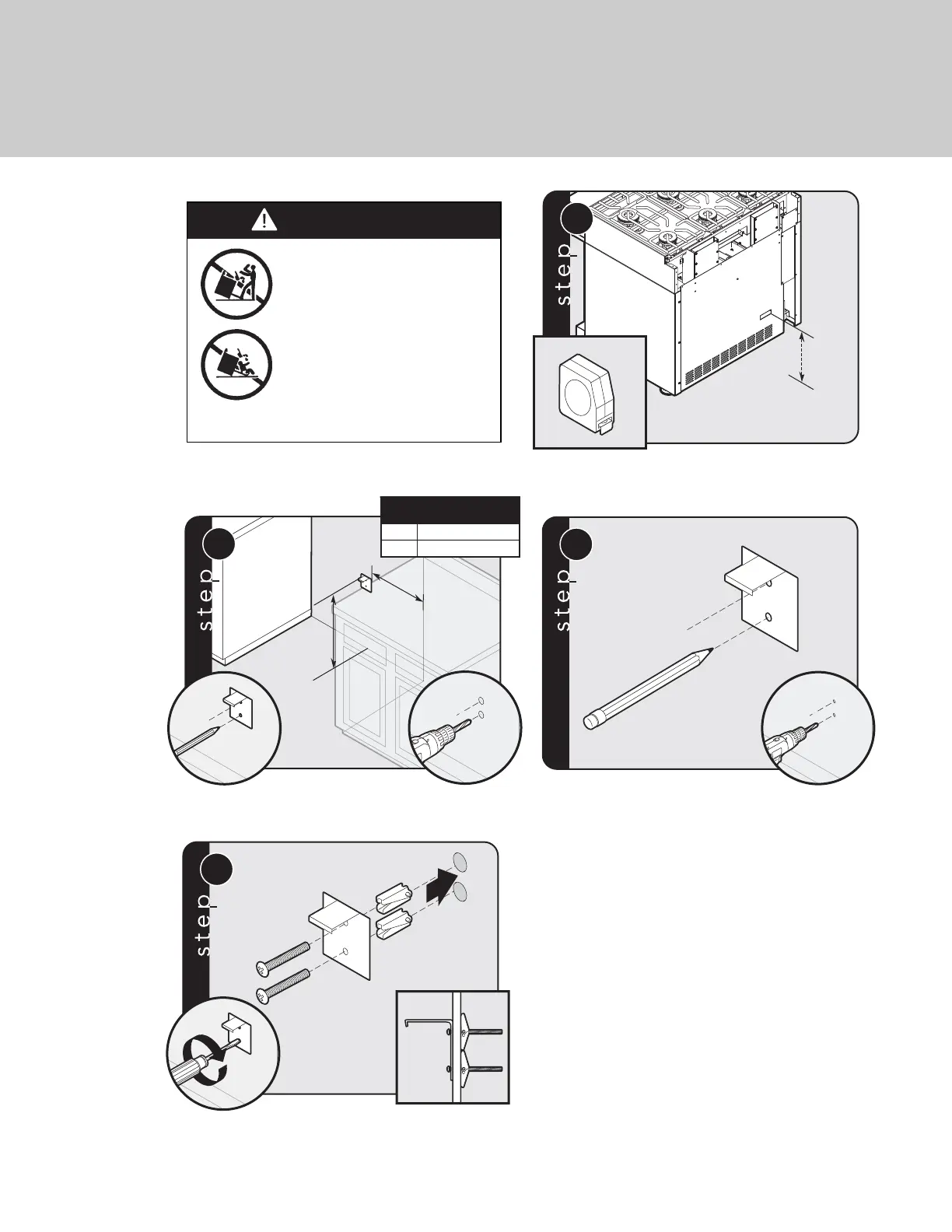

Anti-tip Device Installation (Wall Mount)
Range
Width
“X”
Dimension
36” 24-5/8” (62.5 cm)
48” 22-3/4 (57.8 cm)
3
Mark and drill holes where bracket will be located.
Installation
