Viking VGR736 - Door Replacement

25
1
1
1
2
2

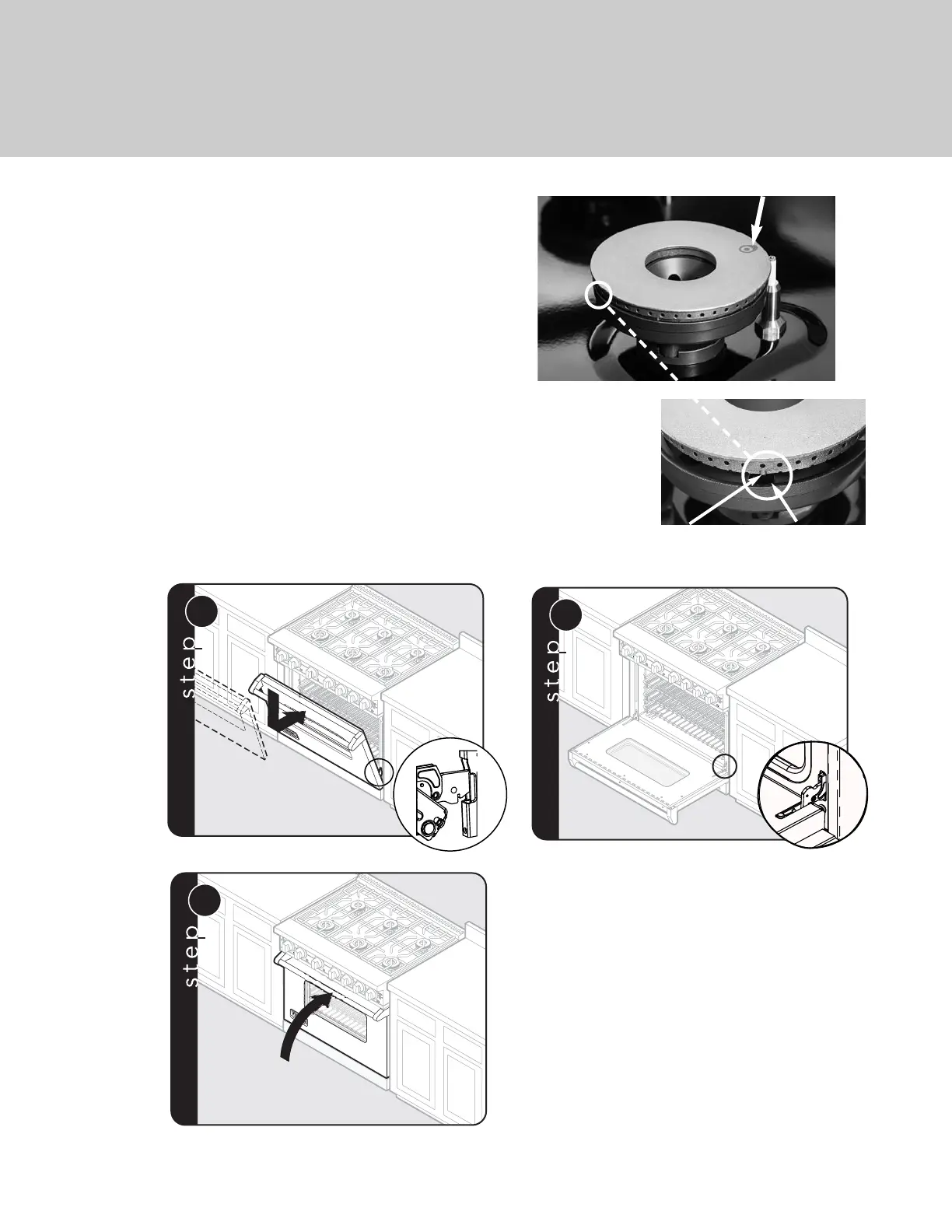

Reattach door to range.
Open door completely. Fold latches forward until
locked in place.
3
Close door.
Door Replacement
Installation
Proper alignment of Burner Head
When placing the burner head on the burner base,
carefully align the locator key in the outer edge below the
burner ports with the small notch in the top front edge of
the burner base. This will align the burner port with the
ignitor. When properly installed, the locator graphic will
be aligned with the ignitor and opposite the locator pin.
locator graphic
locator pin
burner base notch
