Service Procedures
18 ©2012 Viking Preferred Service

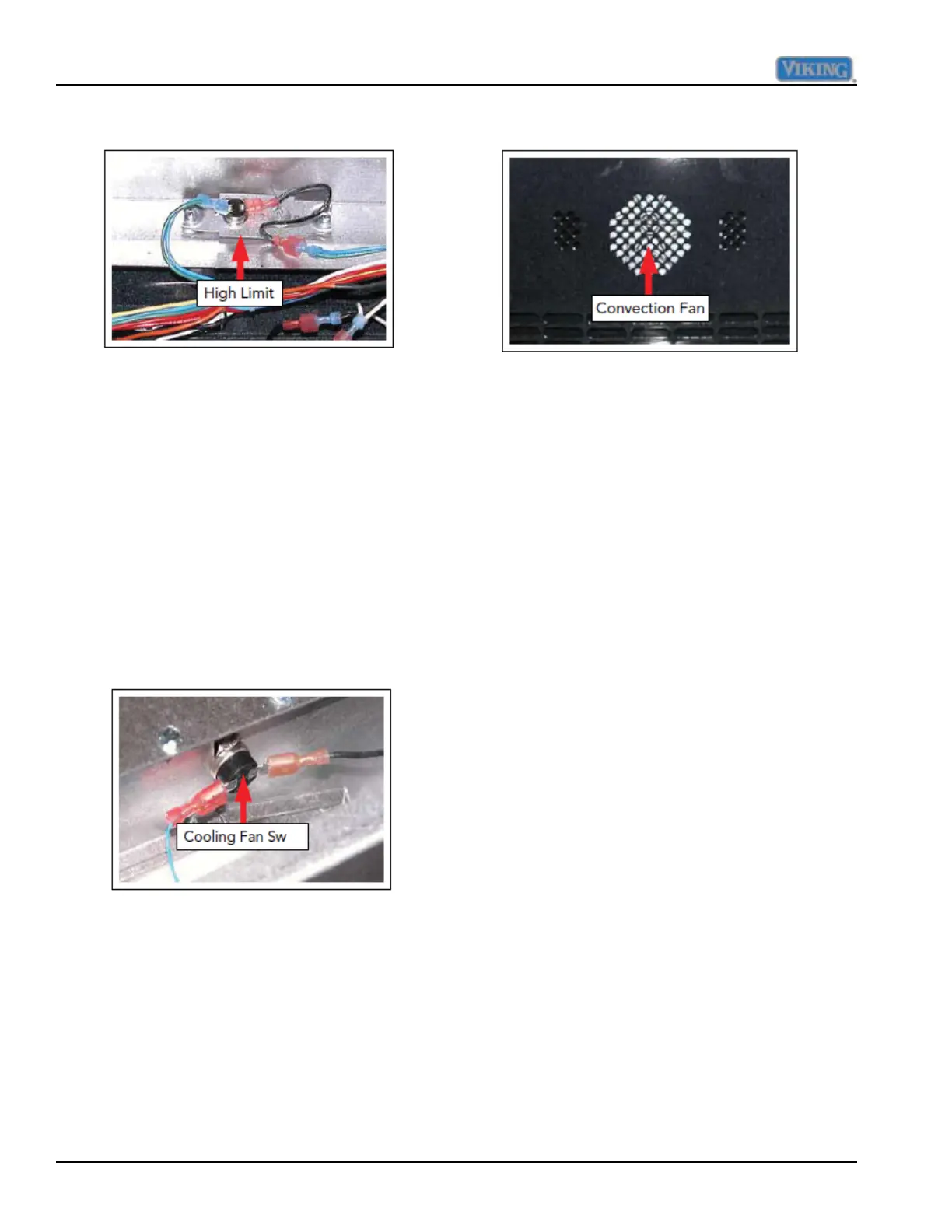

High Limit
The oven is protected by a high temperature
limiter. The limiter is located directly behind
the control panel. To access, slide the wall
oven forward 6” to
8”. Remove the screws securing the top trim
piece, the screws securing the control panel
(two at top and bottom, and screws on side
of control panel). With control panel removed,
limiter will be accessible on the right hand
side. The limiter is normally closed
and will open at 180˚F.
Cooling Fan Switch
The cooling fan is activated by a temperature
switch. The switch is located on the right
hand side by the cooling fan.
To access the switch, remove the oven from
installation. The main top will need to be
removed and the switch will be visible along
the right hand side by the cooling fan. The fan
switch is normally open and closes at 160˚F,
energizing the cooling fan.
Convection Fan Motor
The oven utilizes a 120 VAC convection fan
motor to move air through the cavity. When
the convection fan motor is required, power is
supplied from the thermostat through selector
switch.
To access the convection fan assembly,
remove the oven door, oven racks, and
convection fan cover. The assembly is now
accessible and can be removed from inside
the oven cavity.
The convection fan motor receives L1 power
from the selector switch (CV to 3 closing) and
neutral from the power cord.
