K40980 - K40981
EN
160/165 cm
120 cm
155,2 25,3
24,5
184,3
146,1
86,9

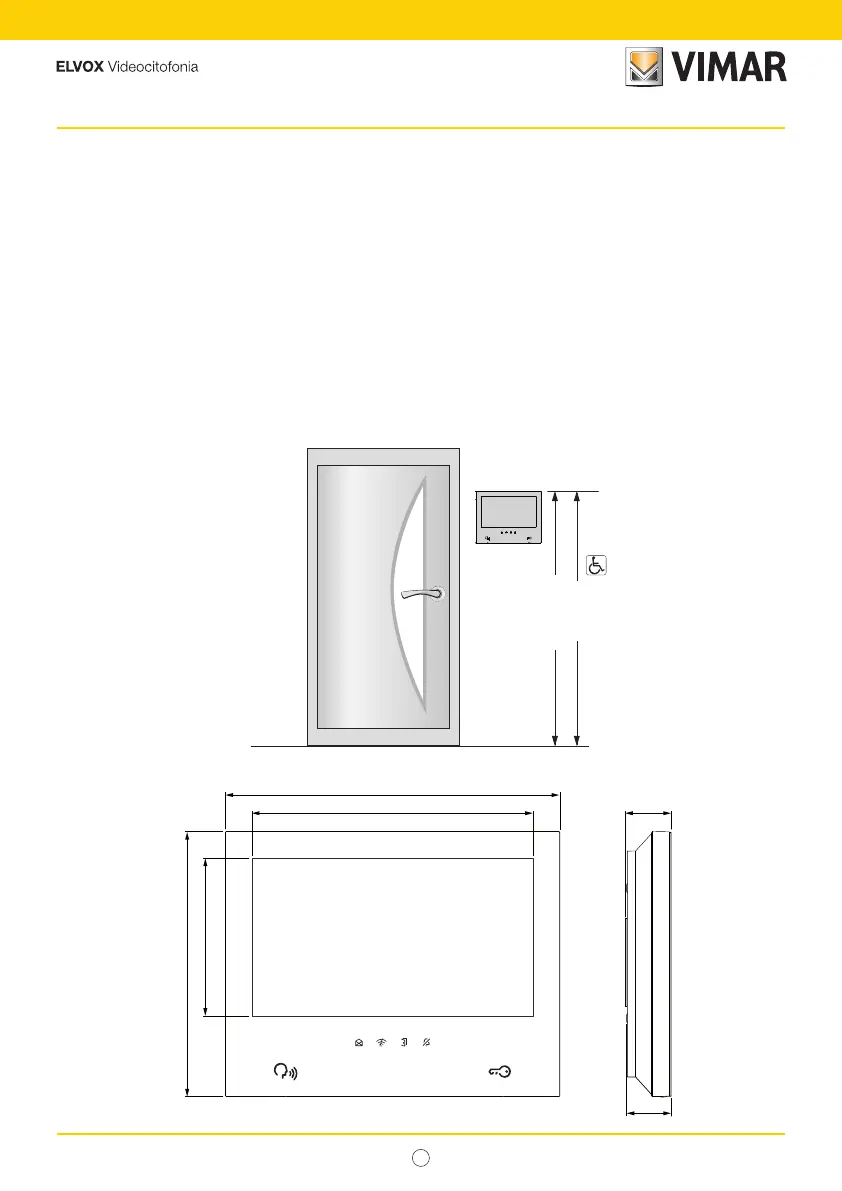

Indoor Station Installation
Theindoorstationcanbeinstalledonawallsurface.
Notethattheindoorstationissuppliedcompletewithabracketthatiscompatiblewithushmountingboxes:
- Mountingbox7249(withbracket40196)
- Roundmountingbox2MV71701
- Horizontal/verticalmountingbox3MV71703,V71303
- BritishStandardsquaremountingbox
Usethescrewsandwallplugsprovidedinthekittoinstallthebracketonthewall.
Inordertooperate,theindoorstationmustbeconnectedtothesystembus.
Theconnectiontothesystembusmustbemadeeitherdirectlyviathepowersupplyunitbusorviathebusofanotherindoor
station.
