19
a
a
a
b
c
7511020
1. LIFT SUPPLY PACKAGE
- Complete platform
- Preassembled column or column disassembled into
2 parts
- Upper oor gate complete with controls
- Panelling
- Remote call column (OPT)
- Lift gate (if present)
2. PLACE OF INSTALLATION
The lift may be installed INDOORS or OUTDOORS.
3. TRANSPORT
3.1) Handling
The lift, disassembled and on a pallet, must be handled
with the aid of suitable lifting equipment with rated load
at least 250 kg (Fig. 1).
Follow the instructions provided in chap. 4
of the assembly manual with regard to the correct
procedures for lifting and positioning the unit.
3.2) Storage
- Store the unit in a dry place
- Protect from dust with PVC sheeting.
4. INSTALLATION INSTRUCTIONS
- Check that the mains voltage specications corre-
spond to those stated on the lift’s nameplate.
- Check that the lift and shaft dimensions are as stated
on the installation drawings.
- Check that raceways have been provided for the po-
wer supply cables and that a water drainage pit has
been constructed if necessary.
- Check that the base plinth on which the lift is to rest
is level.
- Place the lift in the intended position, with the distan-
ces from the wall shown in the installation diagrams.
4.1 Column wall mounting

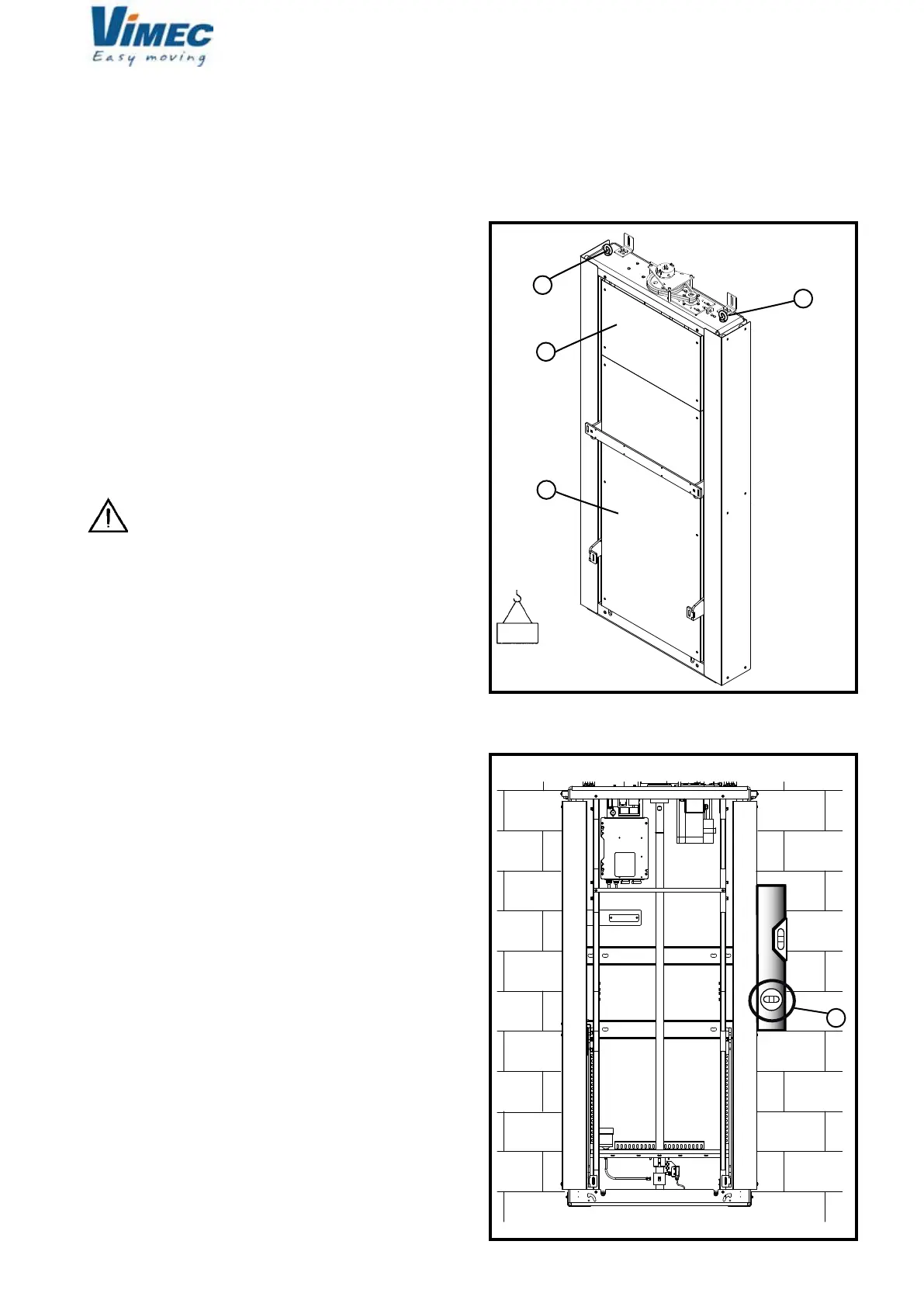

- Use the eyebolts (Fig.1/a) to remove the column from
the packaging and from the crate and remove any front
casings (Fig. 1/b-1/c).
FIG.1
FIG.2
- Utilizzare un apparecchio di sollevamento e fasce
d’imbragatura per accostare la colonna al muro in
posizione verticale.
250 kg
7512020
