3) DESCRIPTION OF THE UNIT

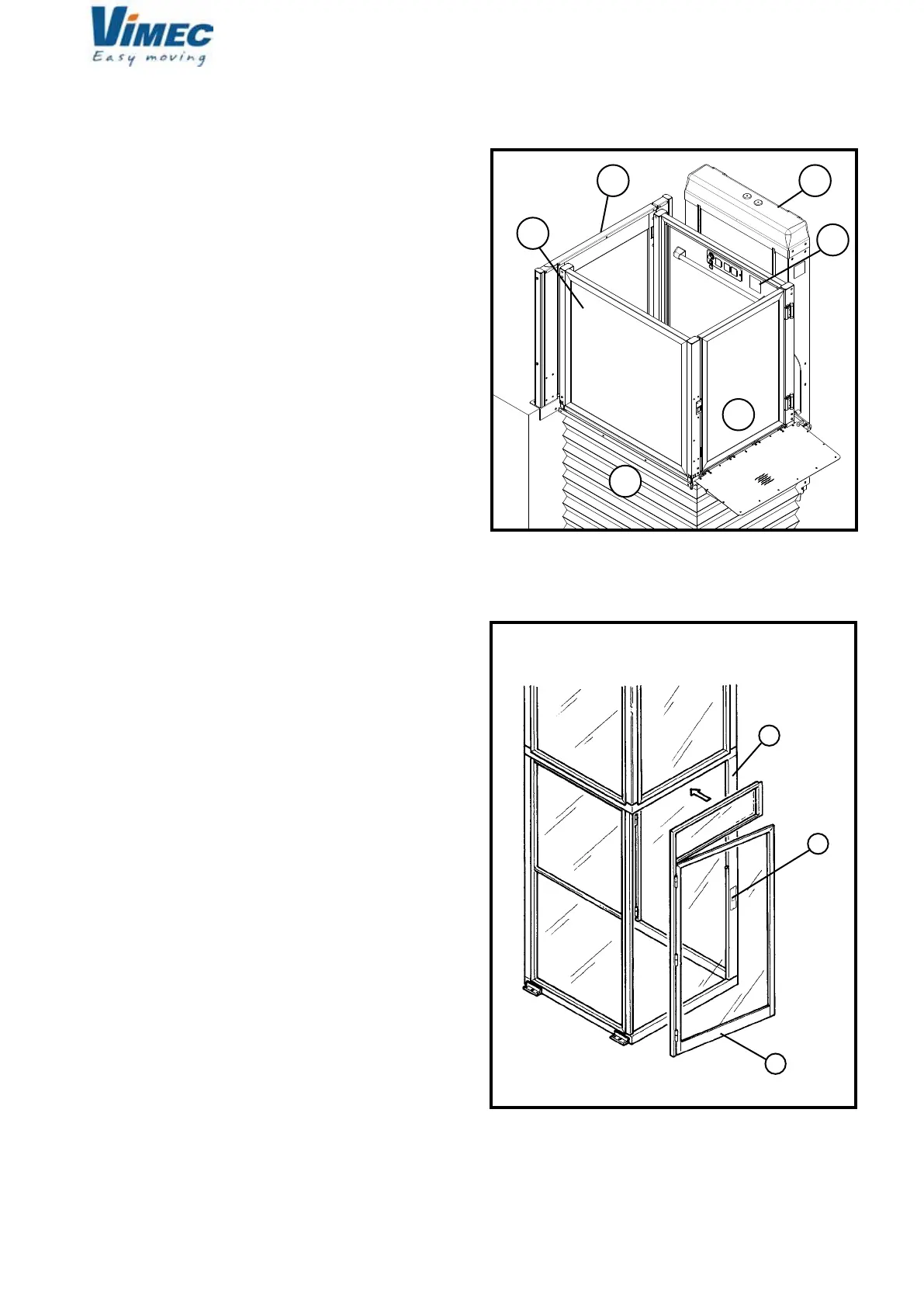

3.1) General Description - Fig. 1
The S11 lift is a platform lift designed to trans¬port
disabled persons with or without an attendant. This
machine can work both in open and closed shaft.
The shaft, if required, is an enclosed metallic (Fig. 2/a)
or masonry structure with oor doors (Fig. 2/b) enabling
the entrance to the platform. In order to guarantee the
safety of people, oor doors are locked by a safety
door lock. The opening of a door is allowed only when
the platform is at a determined oor. Upon request,
oor doors can optionally be provided with a motorized
opening and closing system. A push button control is
provided near each entrance door (Fig. 2/c).
It comprises the following:
- Upper platform with non-slip surface (Fig. 1/a)
- Column group (Fig. 1/c)
- Edge protection (Fig. 1/d)
- Bellows guard (if present) (Fig. 1/e)
- Lift gate (if present)
- Hand-operated gates at oor 1 (Fig. 1/f)
- CE marking and serial number nameplate (Fig. 1/g)
- Doors
- Locks
- Metal scaffold (if required)
FIG.1
7512020
FIG.2
