vimec S11 User Manual

26
a
a
b
b
7511020
FIG.23
FIG.24

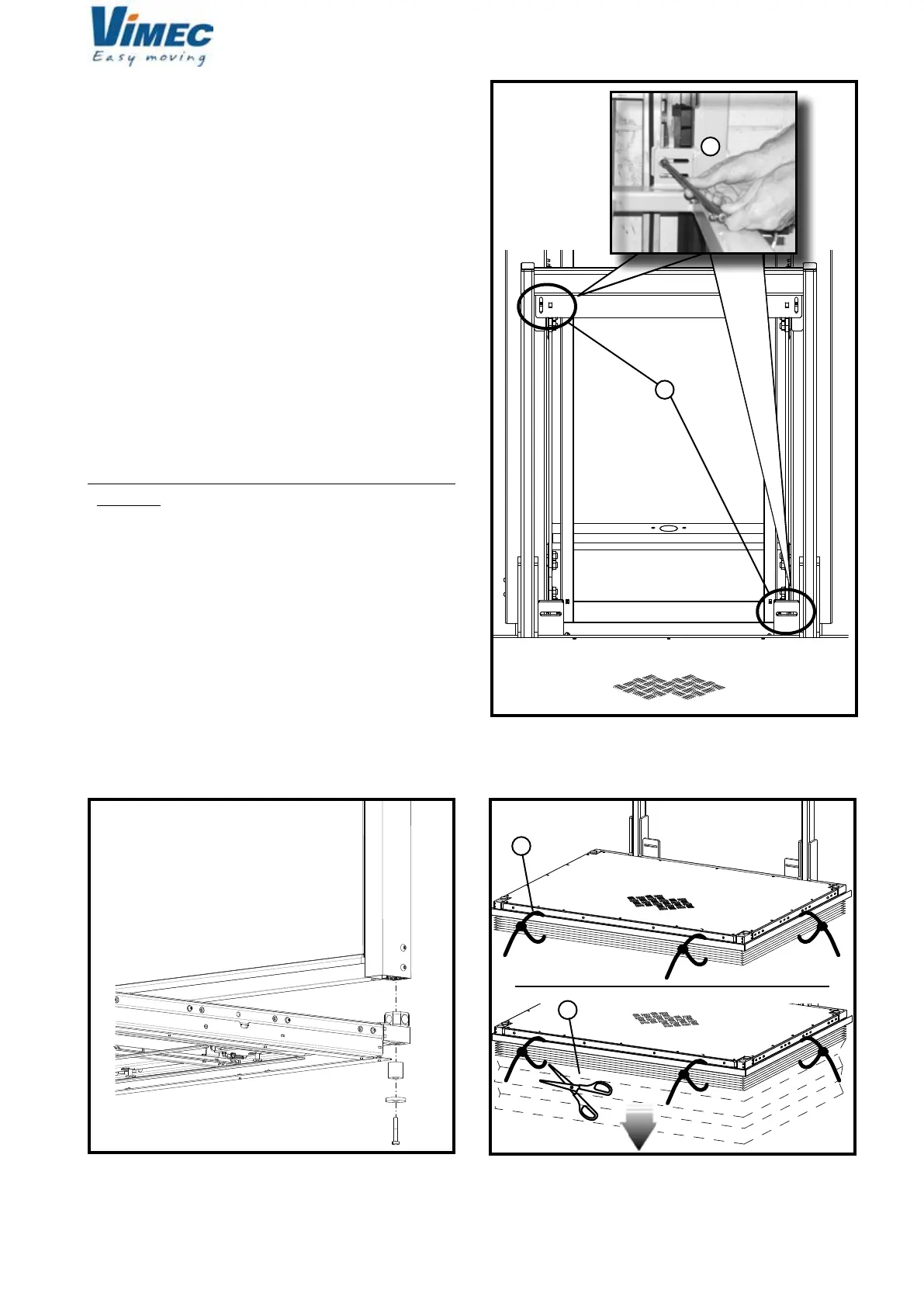

4.4 Mounting the platform
Without shaft
- Raise the platform and position it so that the slotted
plates coincide with those on the trolley (Fig. 23/a).
NOTE: Before xing the platform, close the bellows
(if present) with straps (Fig. 24/a).
This operation makes it easier to mount the platform
with bellows, without creating impediments.
- Screw the platform to the trolley using the screws
provided (Fig. 23/b).
- Free the bellows (if present) from the platform by
cutting the straps (Fig. 24/b) and lay it on the ground.
With shaft
In this case (“with shaft”), the bottom safe edge is not
provided.
4.5 Mounting on board guards
- Screw the on board guards to the platform structure
as indicated in Fig. 25.
FIG.25
7512020
