vimec S11 User Manual

27
a
b
7511020

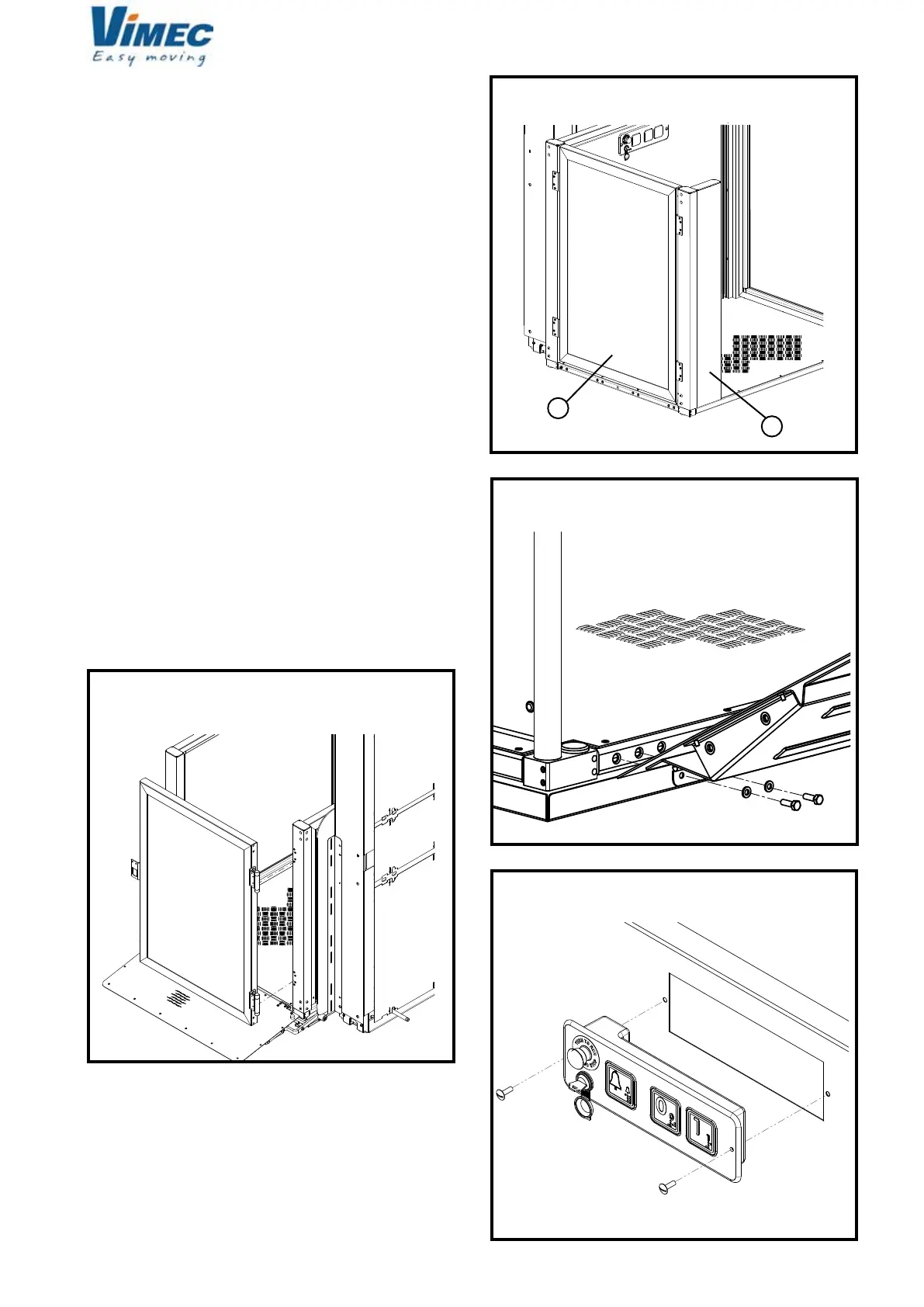

FIG.26
FIG.27
FIG.28
FIG.29
4.6 Mounting the lift gate
- After xing the on board guards on the column side
and on the column opposite side, secure the lift gate
by screwing the hinges to the upright (Fig. 26).
4.7 Mounting the 90° landing guard
- After xing the tubular sections for 90° landing (Fig.
27/a, see Fig. 25 for assembly), x the door (Fig. 27/b)
to the tubular sections using the screws provided.
4.8 Mounting the slide
- Using the screws provided, screw the hinges on the
slide to the holes on the platform structure (Fig. 28).
4.9 Mounting the push-button panel
Fix the push-button panel to the rail side guard using
the screws provided (Fig. 29).
7512020
