28
7511020
FIG.31
FIG.32
FIG.30

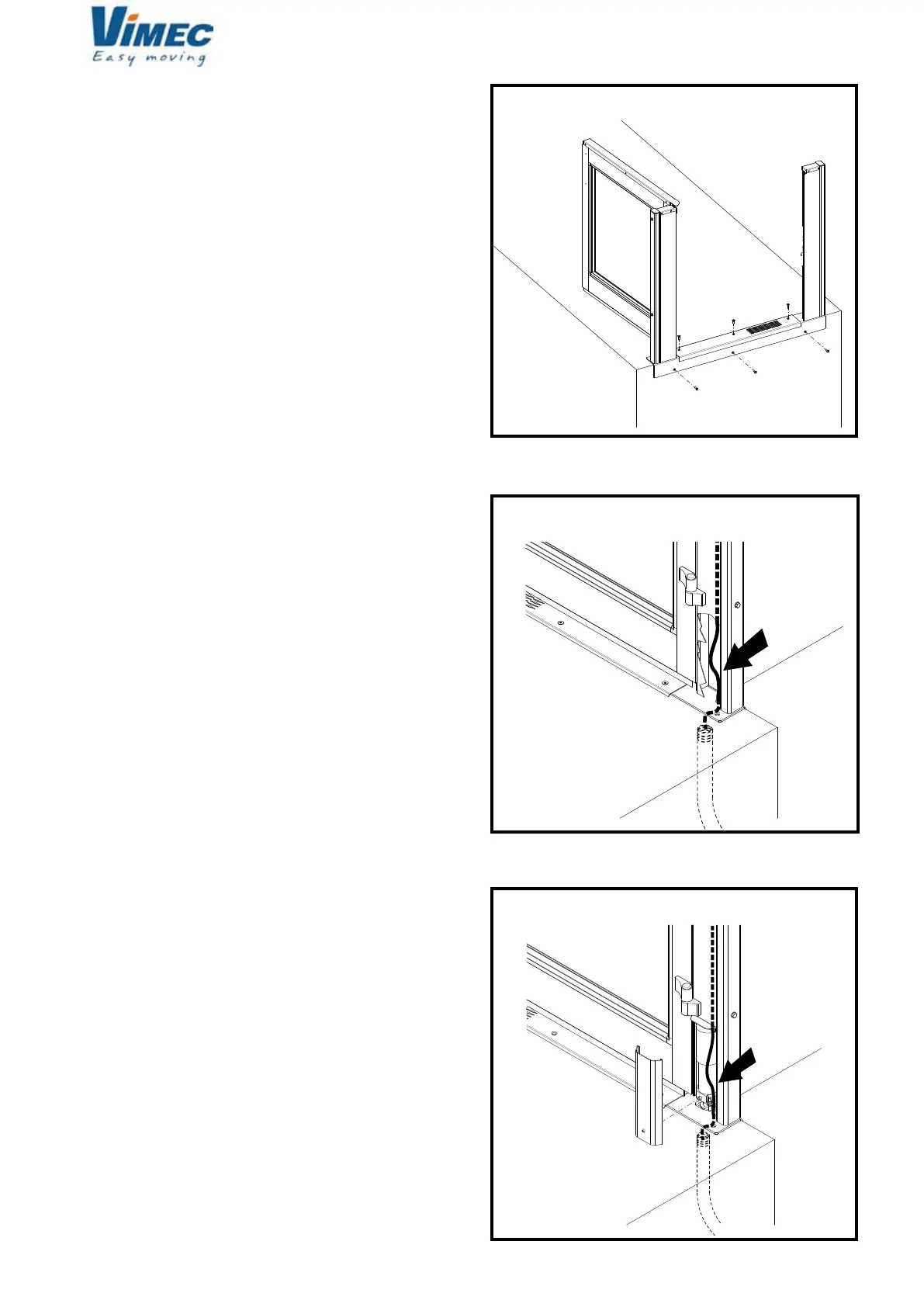

4.10 Mounting the 1st oor gate
- Install the top oor gate, complying with the stated
measurements, and x it to the ground and to the wall
using the expansion plugs (Fig. 30).
4.11 Electrical wiring
- Connect the wiring to the push-button board.
- Connect the electrical wiring of the bottom safe edge
(if present).
- Connect the microswitch sheaths of the lift gate (if
present).
- Connect the power supply cable provided to the circuit
breaker prepared previously.
- Insert the cable inside the corrugated cable hose
lead¬ing to the lift control panel (Fig. 31) and t the
connector.
- Connect the cable to the panel in the positions shown
on the enclosed wiring diagrams.
- Connect the main sheath to the connectors provided,
remove the call control board and the lock, and con-
nect it to the sheath as shown in the diagram.
- Motor-operated gate: Wire the motor and sensor to
the main sheath (Fig. 32).
7512020
