Turbine Station Conguration Guide
A100K11194
2 Intercom Connections
2.1 Connectors on Turbine Compact Intercoms
The Turbine Compact Board is used by the following stations: TCIS-1, TCIS-2, TCIS-3, TCIS-4,
TCIS-5, TCIS-6, TKIS-2, TMIS-1.
L Note that the TCIA-2 has a dierent set of connectors
See Appendix A: Compact Board Connectors for further information.

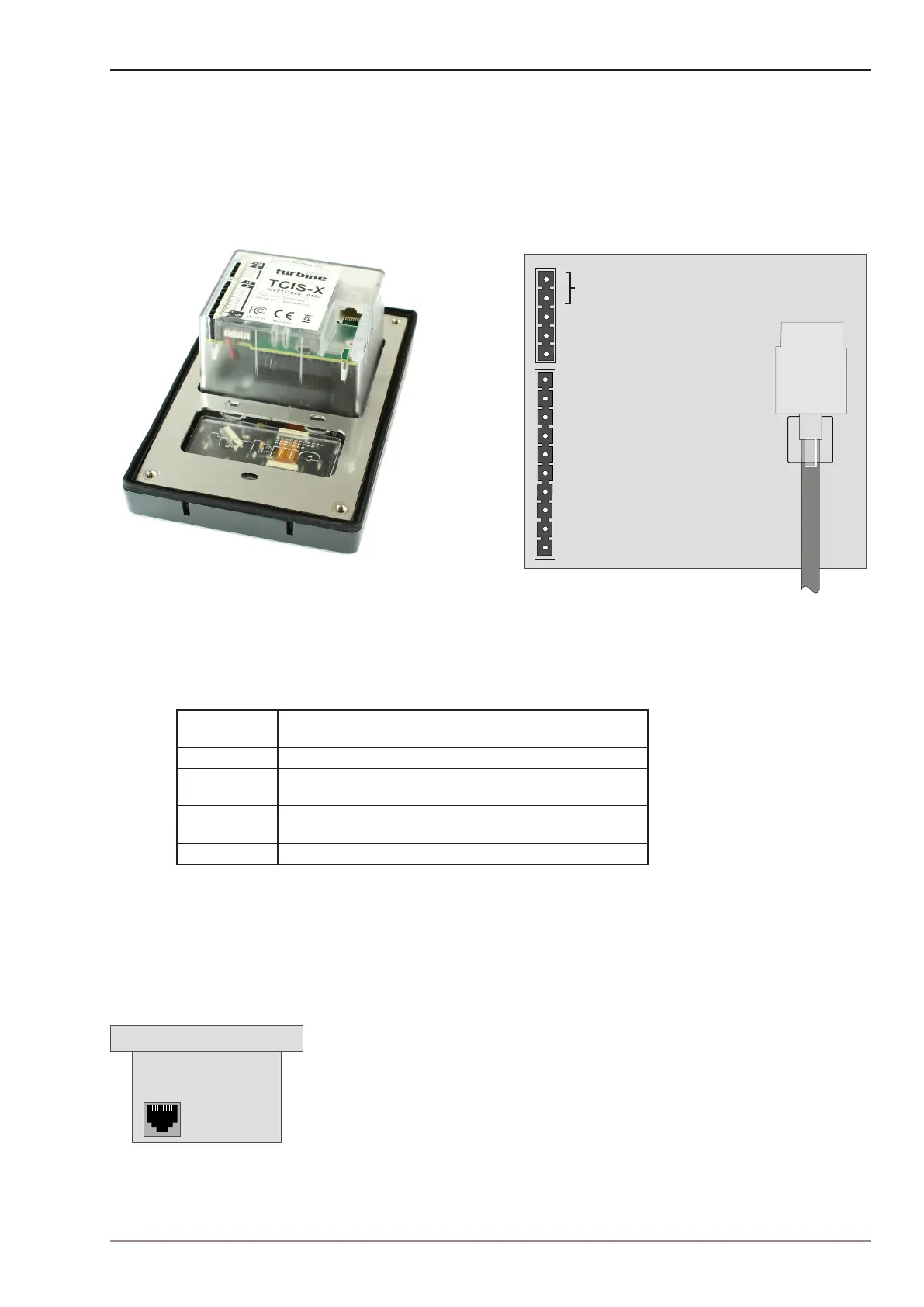

Figure 9 Connectors on Turbine Compact Station
The following table is an overview of the main connectors involved when installing the Turbine IP
Stations.
Ethernet / Power 10/100 Mbps Ethernet RJ-45 port for LAN (uplink) connection. Supports PoE
(802.3af). Draws power from either spare line or signal line.
Secondary Power 24 VDC (16 – 48 V) secondary power is provided from an external adapter.
Relays There is one Double Throw relay contact with 60W switching power. COM, NO,
NC contacts are provided. Max: 250VAC/220VDC, 2A, 60W.
Input/Output 6 general purpose I/Os are available. Each I/O can be congured as either
button input or LED driver.
Audio Line Out A balanced 600 ohm audio line out with induction loop signal
2.1.1 Power Supply
The Turbine Compact Station supports Power over Ethernet (PoE, IEEE 802.3 a-f) where power can
be drawn from either the spare line or signal line. If PoE is not available, the Turbine Compact Station
can be connected to a 24 VDC local power supply.
2.1.2 Network Connection
There is one RJ-45 port located on the Turbine Compact station that is
used for PoE/LAN Ethernet connection.
PoE port
1
5
4
3
2
1
6
10
5
4
3
2
9
8
7
RJ-45
PoE
port
24 VDC for external secondary power
if PoE is not used. Pin 1 is positive.
- 5.3V (LED driver)
- GND
- Input/Output 5
- COM relay
- NC relay
- NO relay
- Input/Output 1
- Input/Output 2
- Input/Output 3
- Input/Output 6
- 600 ohm balanced line out +
- 600 ohm balanced line out -
- Input/Output 4
Ethernet Connection
