Turbine Station Conguration Guide
2.1.3 Input/Output Connections
There are 6 I/O connection options for the Turbine Compact Station.
These connections can be used to interface with external I/O devices. The connections are typically
used as digital input (eg. form a closing contact), digital output (5V), or LED driving (20mA max)
for connecting sensors, indicators or integration to other systems. See Appendix A for further
information.
2.2 Connectors on Turbine Extended
The Turbine Extended board is used in the following stations: TFIE-1, TFIE-2, ECPIR-3P, TKIE-1,
TFIX-1, TFIX-2, TFIX-3, TFIX-4.
See Appendix B: Extended Board Connectors for further information.

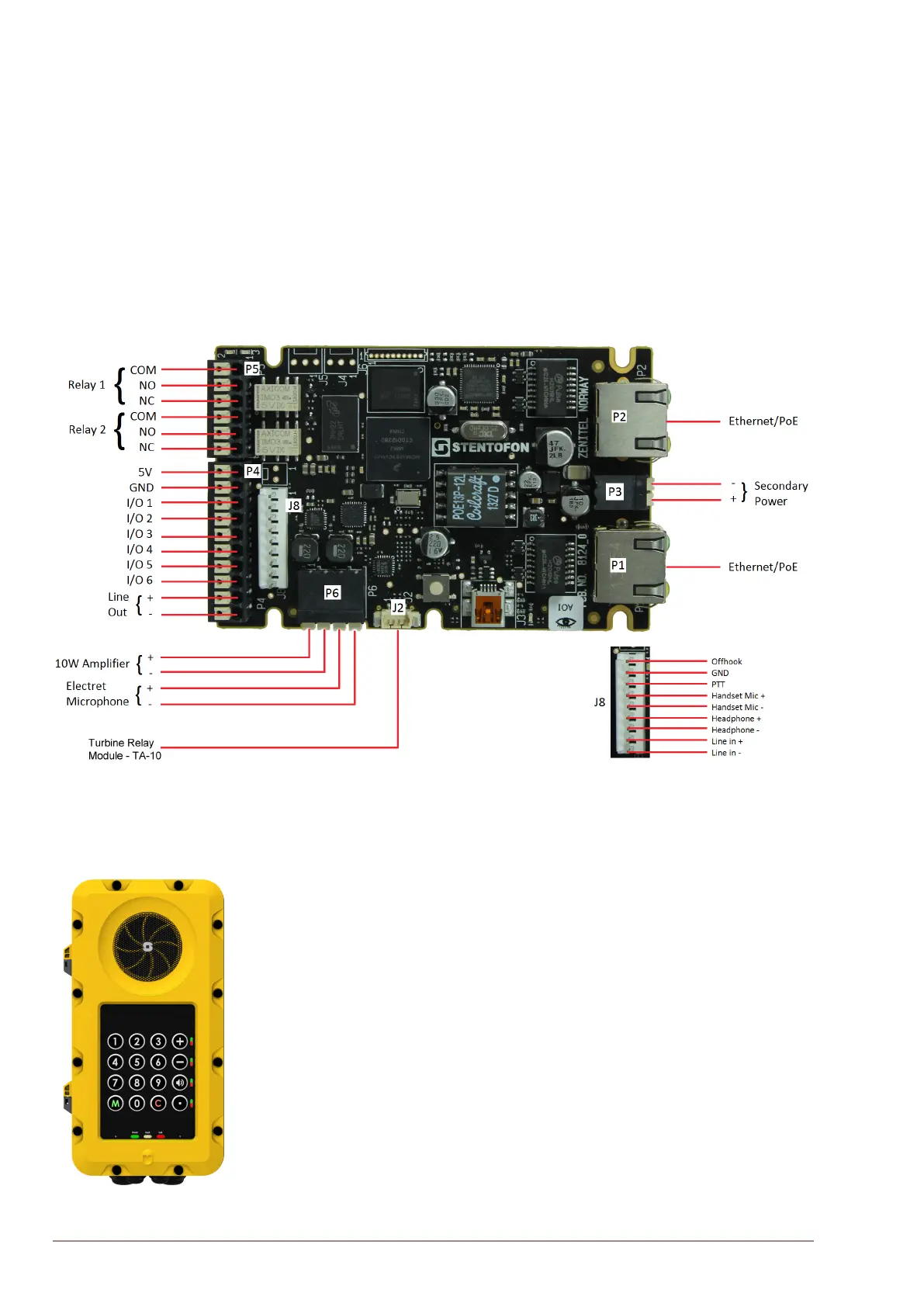

Figure 10 Connectors on Turbine Industrial Station
L All connections are made on the main board inside the enclosure of the Turbine Industrial station.
2.2.1 Power Supply
The Turbine Industrial Station supports Power over Ethernet (PoE, IEEE 802.3
a-f) where power can be drawn from either the spare line or signal line.
If PoE in not available, the Turbine Industrial Station can be powered from a 24-
48 VDC local power supply.
L If used together with PoE the station can be powered by 24 VDC as a local power
backup.
L If connected to two PoE-capable switches, only one of the ports will negotiate
PoE; hence this is not a good solution for power redundancy (switch failure might
lead to a reboot). Instead a “dumb” PoE injector (spare-pair power) should be used
for the two Ethernet ports or a local 24 VDC local power backup.
