18
A100K11194
Turbine Station Conguration Guide

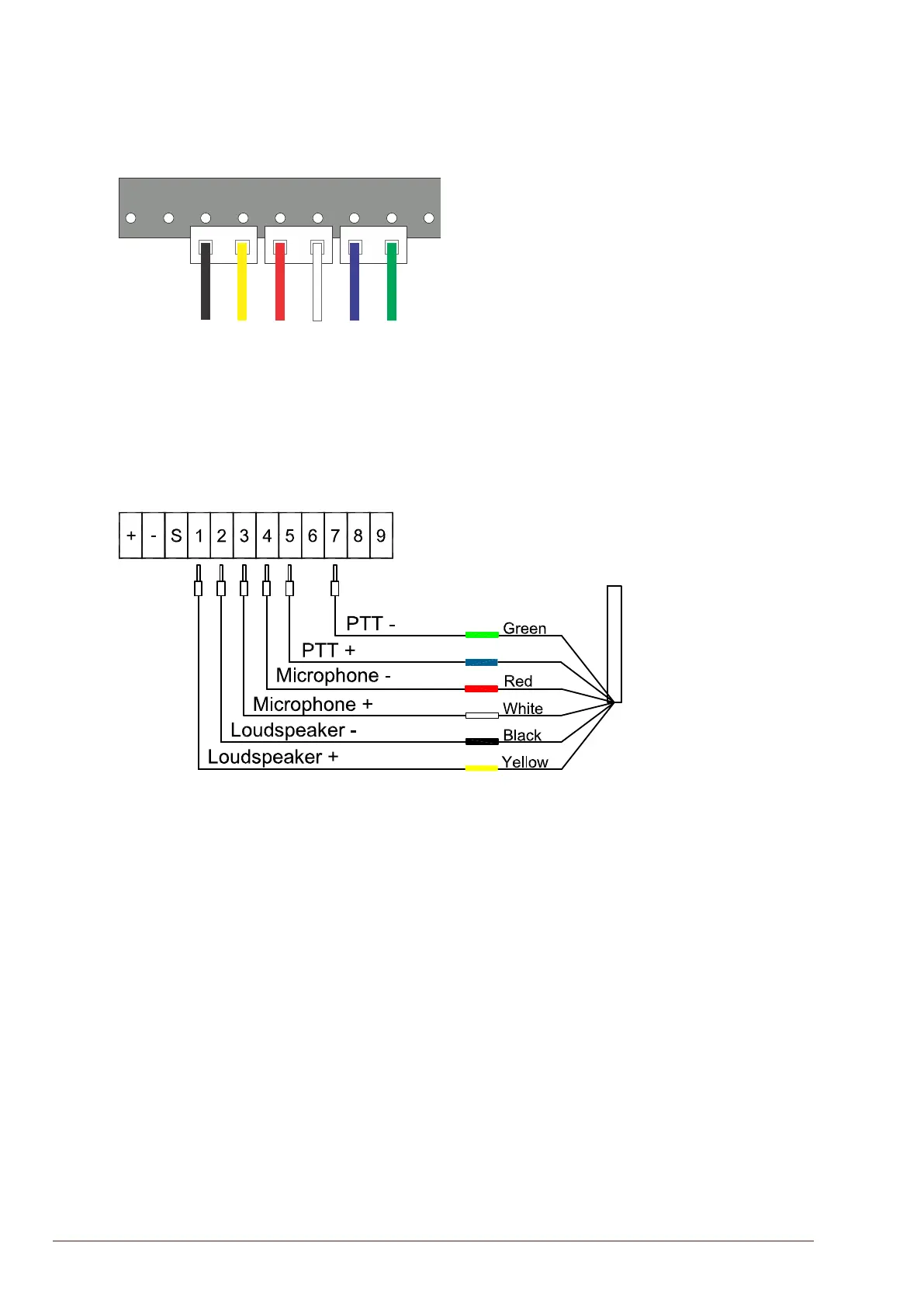

3.2.1 Connecting TA-23 Handset to TFIE-x Industrial Intercoms
Plug the IDC connectors on the Handset cable into the J8 terminal block according to the pin
conguration below.
1
6
5
4
3
2
9
8
7
Black
Yellow White Blue Green
TA-23 Handset Connection
on 9-Pin Terminal J8
Red
PTT-
PTT+
Mic+
Mic-
LS+
LS-
3.2.2 Connecting TAX-3 Handset to TFIX-x Ex Intercoms
Connect the wire ferrules on the Handset cable to the terminal block according to the pin
conguration below.
Blue
3.3 AK5850HS Headset for Turbine Extended with TA-22b/TAX-2b
Plugbox
The Headset comes with a boom microphone, curled cord and plug.
The Plugbox comes with a PTT button and 10-meter long cable.
TA-22b: used with Turbine Industrial Intercoms
TAX-2b: used with Turbine Ex Intercoms
