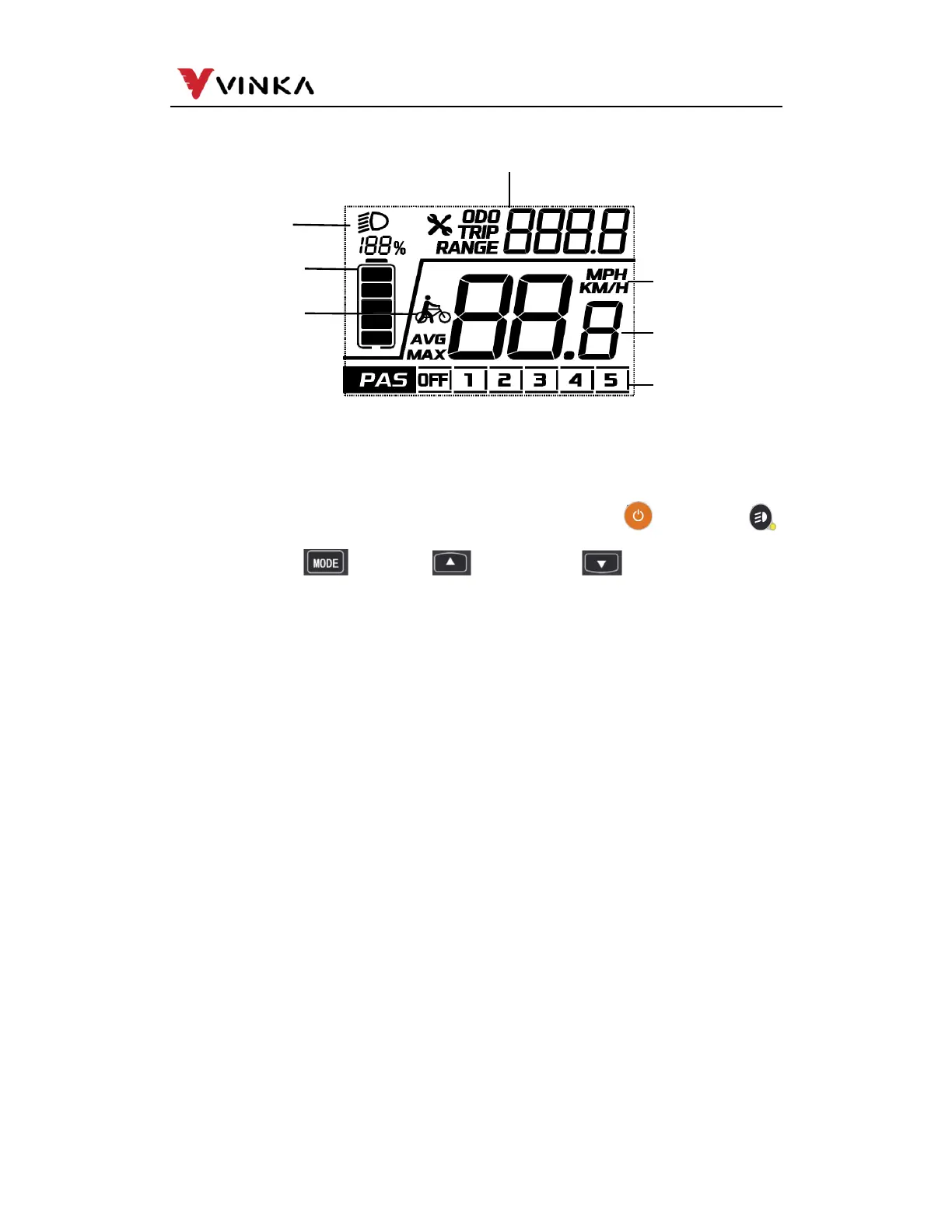

5. Function Area Distribution
6. Button definition
There are five buttons on DR25 display: power button , light button ,
MODE button , UP button , DOWN button . In this manual we use
words “ON/OFF”, “Light” , ”MODE”, “UP”and “DOWN” to represent these 5 buttons.
7. Installation
DR25 can be mounted on the left side of handlebar close to its grip. Adjust the
angle for a good screen view. Cut off the power before connecting the corresponding
connectors between display and controller.
8. General Operation
Switching the E-bike System mode ON/OFF
To switch on the E-bike system and provide the power supply to the controller, hold the
ON/OFF button for 1s.
To switch off E-bike system, hold the ON/OFF button for 1s. The E-bike system no
longer uses the battery power.
When E-bike system is switched off, the leakage current is less than 1 μA.
When the E-bike is parked for over 15 minutes, the E-bike system switches
off automatically.
Display Interface
After switching on the E-bike system, the display will show Real-time Speed and
Trip Distance, ODO, battery SOC by default.
Assist-level
Light
Push-assist
BatteryInterface
SpeedInfo
UnitInfo
GeneralfunctionInfo
Function Info
To Next Page
