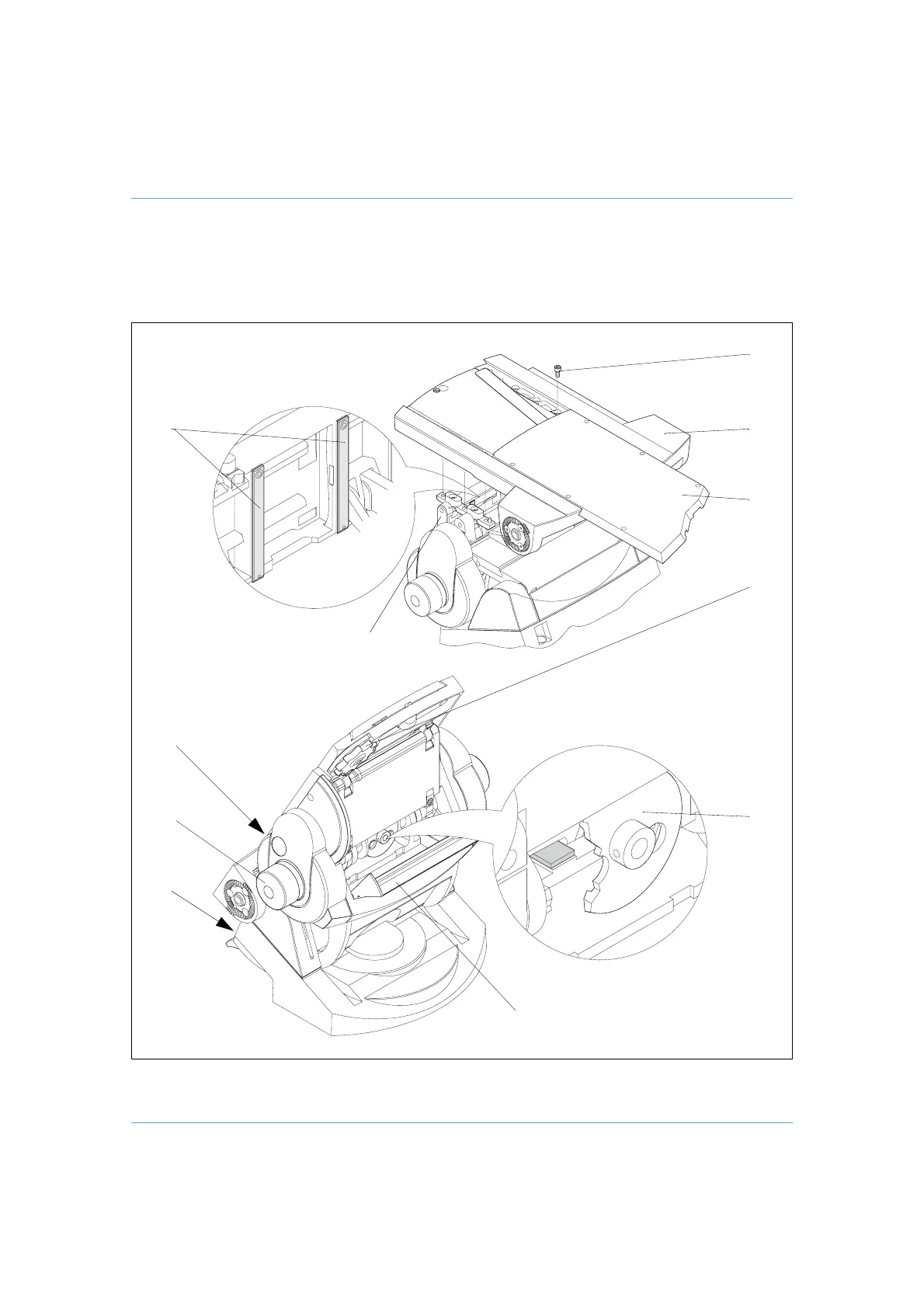

Install the platform (20) on the balance mechanism (21) and secure with six screws (19),
using Loctite 222E.
Using the adjustment knob (13) wind the sliding plate forwards to the central position.
Refit the payload (if required) and rebalance the head.
Cleaning balance mechanism tracks
(19)
(13)
(12)
(20)
(23)
(22)
(21)
(17)
(24)
(14)
(5)
