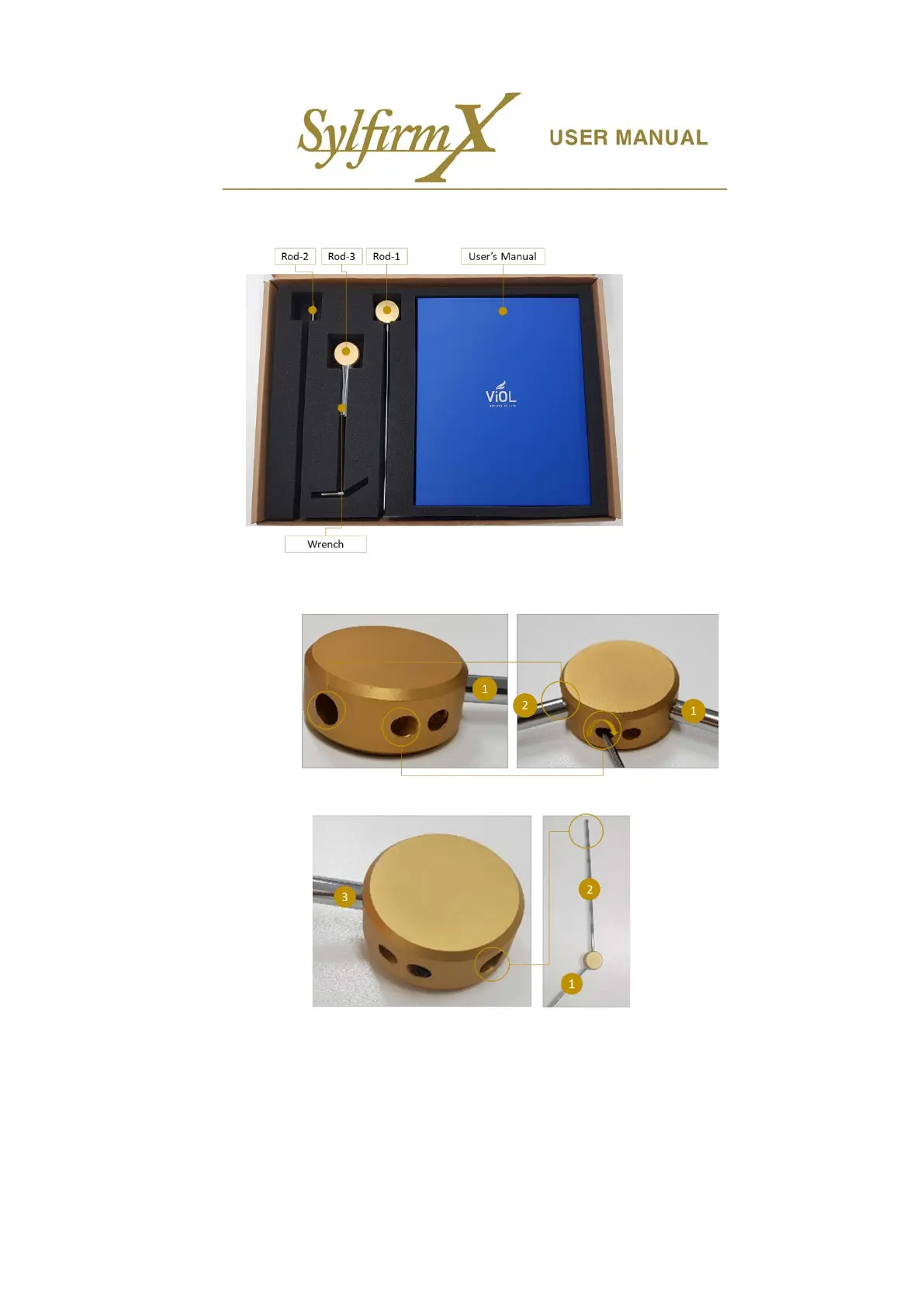

2) Connection of Hand piece hanger
< in side of Accesory box >
i. Insert the Rod-2 into the Rod-1’s upper hole indicated in the image above. Use the wrench to
tighten(clockwise) the bolt inside Rod-2 to secure it.
< Rod-1 >
< Assemble Rod-1 and Rod-2 >
ii. Insert the Rod-3 into the Rod-2’s upper hole indicated in the image above.
< Rod-3 >
< Assemble Rod-2 and Rod-3 >
