3.4 How to install SYLFIRM X

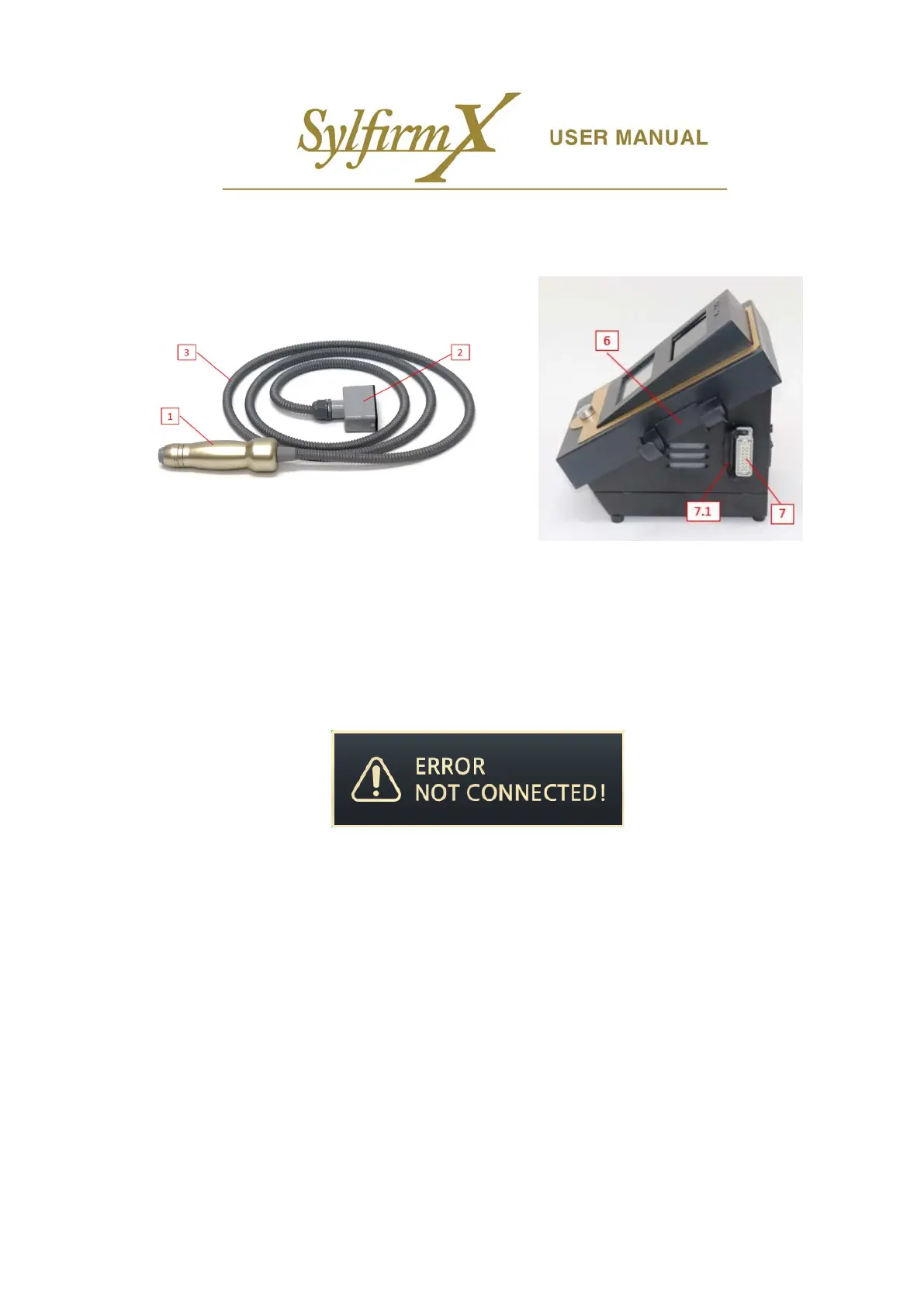

1) Connection of Hand-piece
< Hand-piece >
i. Connect the hand-piece's female connector (2) to the hand-piece connector (7) on the right side of the
main device.
ii. The hand-piece connector is a directional connector and must be gently fastened in the correct direction.
Be careful when inserting forcibly while the direction is not correct because it may damage the equipment.
iii. After inserting the connector, check the fastened state (if it is tightened vertically, it is properly fastened).
When the fastening is completed, fasten the securing latch (7.1).
iv. If the hand-piece connector is installed incorrectly, the following error message will be generated when
setting up the equipment.
