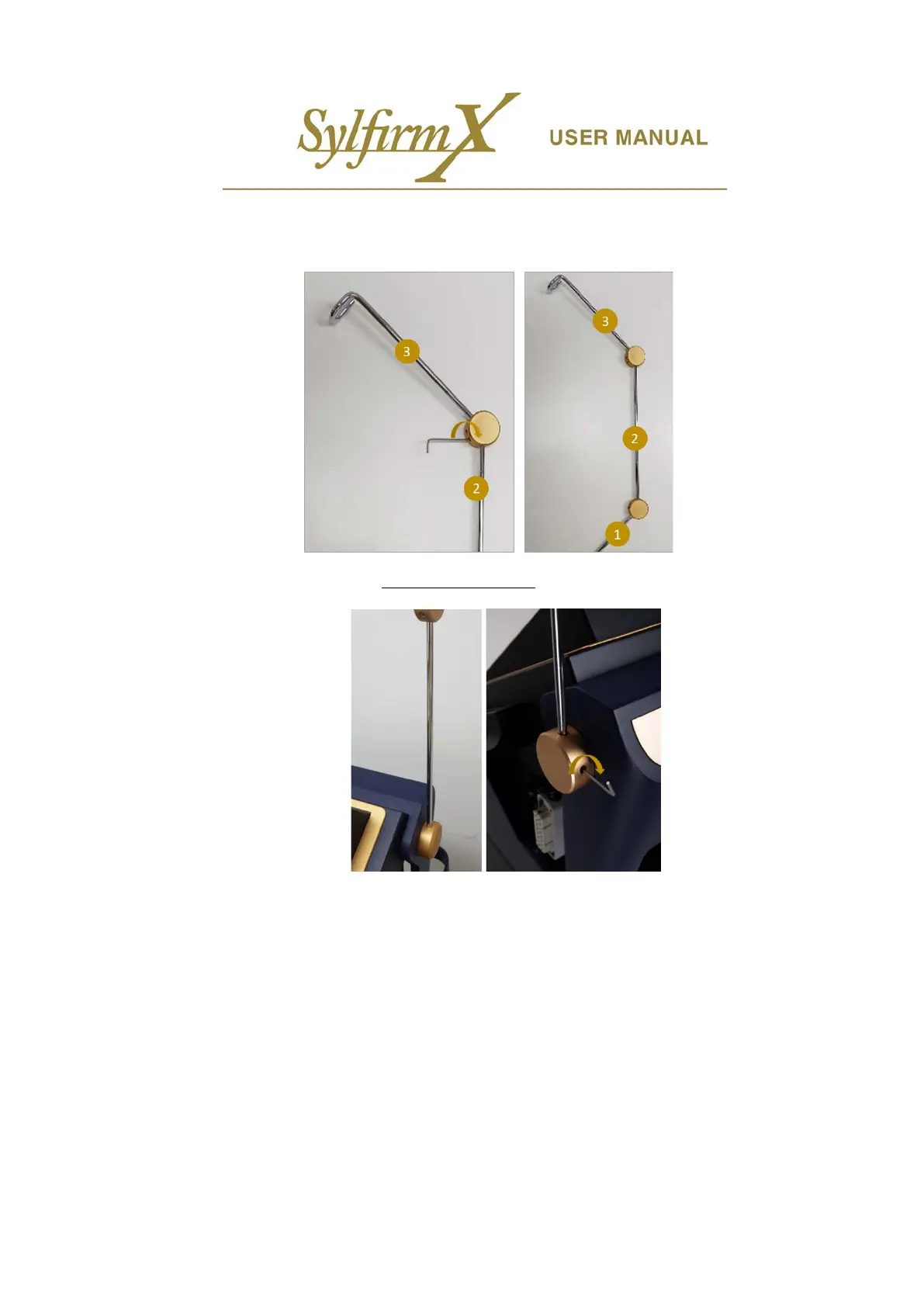

iii. Connect the Rod-3 to the Rod-2’s open end. Use the wrench to tighten the bolt inside the Rod-3.
※ Note that the hook at the end of the Rod-3 should face upward (“U” shape)
iv. Use the wrench, rotate clockwise to tighten the bolt inside the lower hole of the main component as shown
in the image above.
To Next Page
