4) Connection of Power cable

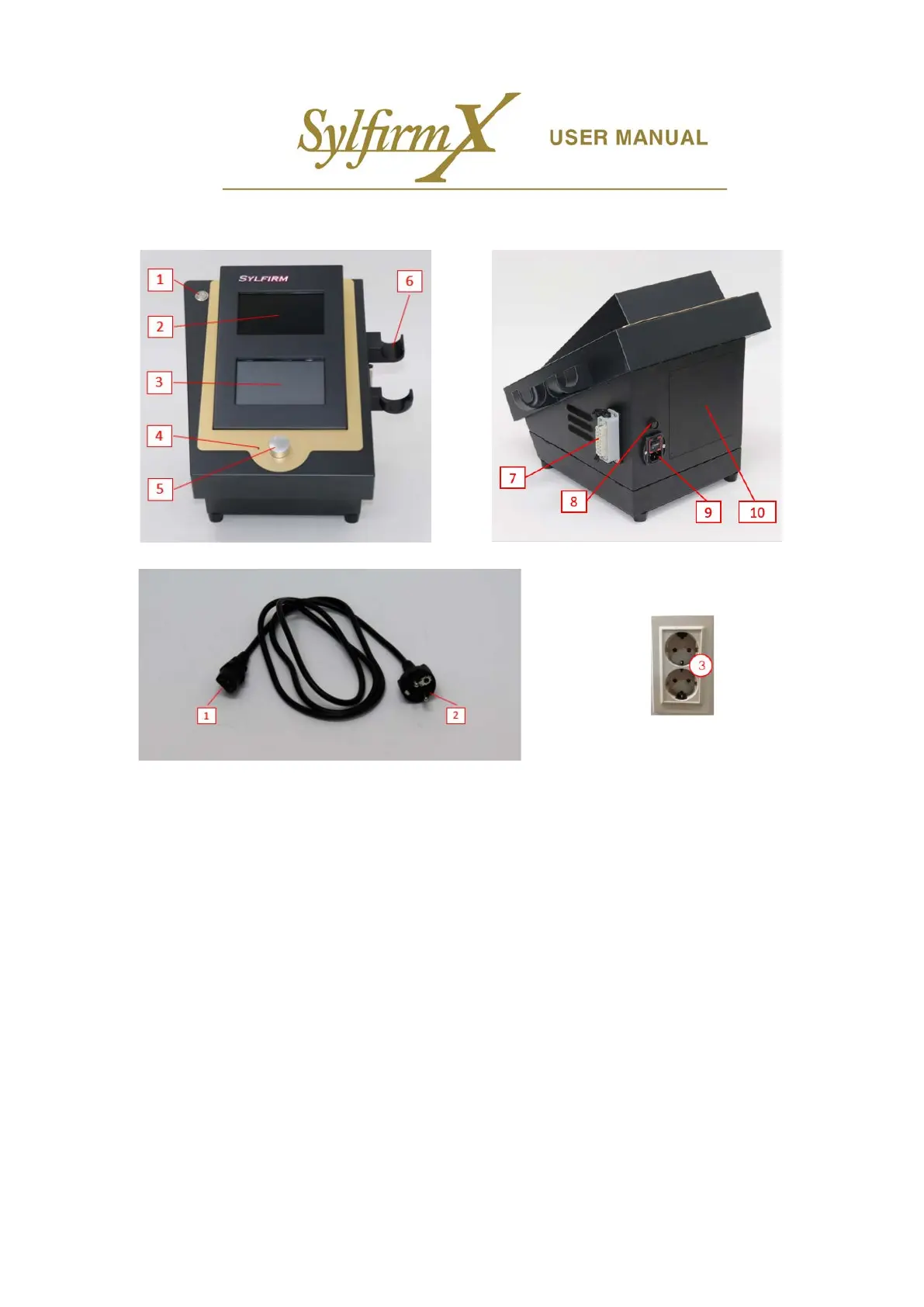

< Main device – Front >
< Main device – Side >
< Power cables>
< Electric outlet >
i. Make sure that the power switch on the main device power inlet (9) is OFF (I: ON, O: OFF).
ii. Make sure that the front power switch (1 is in the OFF state (the switch is in the extruded state).
iii. Plug the power cable receptacle ('Power cable' Figure, 1) into the power inlet of the main device (‘Main
device - Side’ Figure, 9).
iv. Connect the plug of the power cable ('Power cable' Figure, 2) to the electric outlet (‘Electric outlet’ Figure,
3).
