5) Connection of Consumable tip
i. When connecting the Consumable tip to the hand-piece, it should be capped. Be careful not to connect the
needle assembly to the motor when connected with the cap removed.

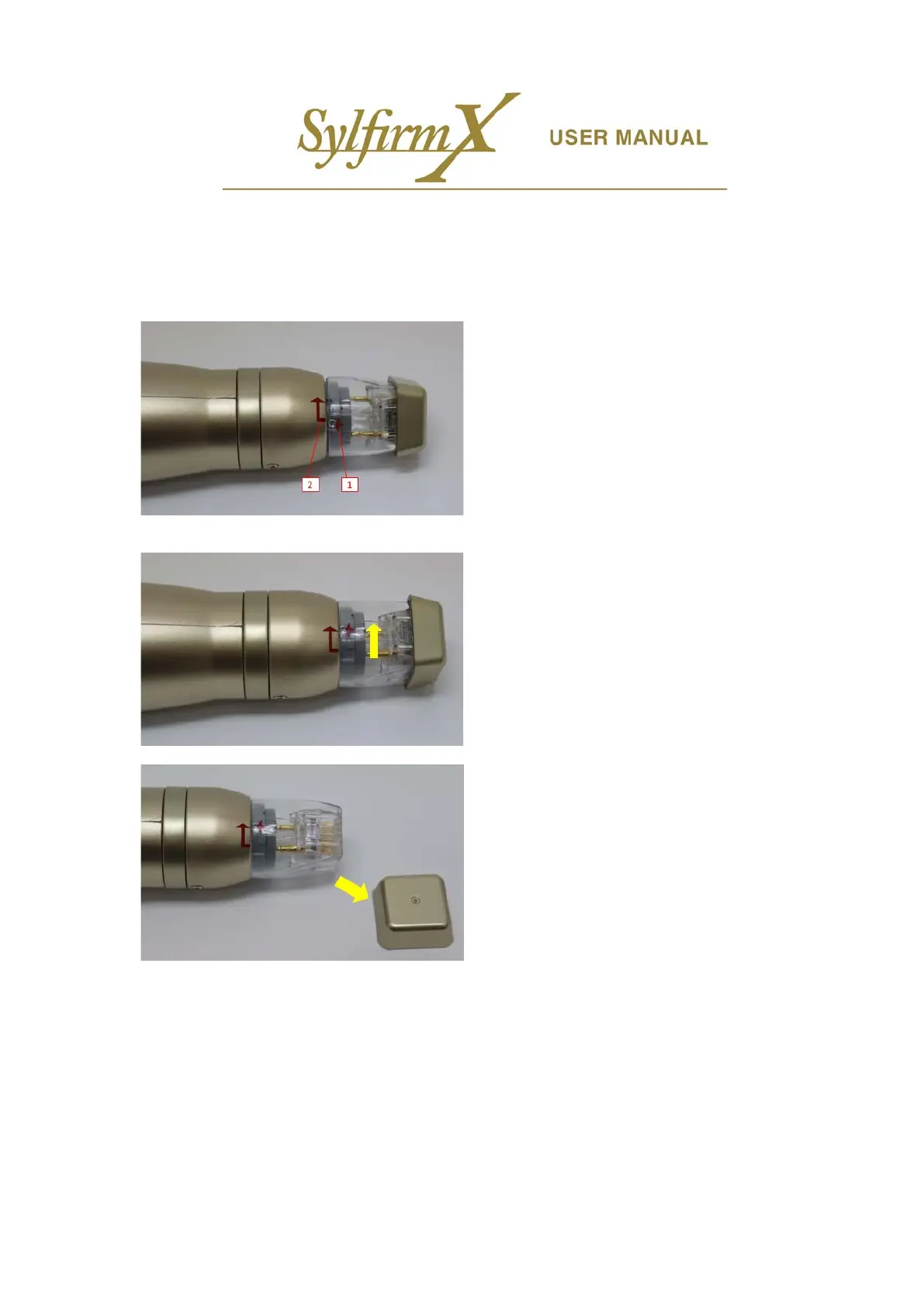

ii. Insert the consumable tip in the direction of the arrow as shown in the figure below.
- Insert (1) into (2).
iii. Turn the Consumable Tip counterclockwise to complete the tightening, and when removed, operate the
opposite.
iv. Remove the cap of the Consumable tip when starting the procedure.
