VIOMI V3 Max User Manual

16

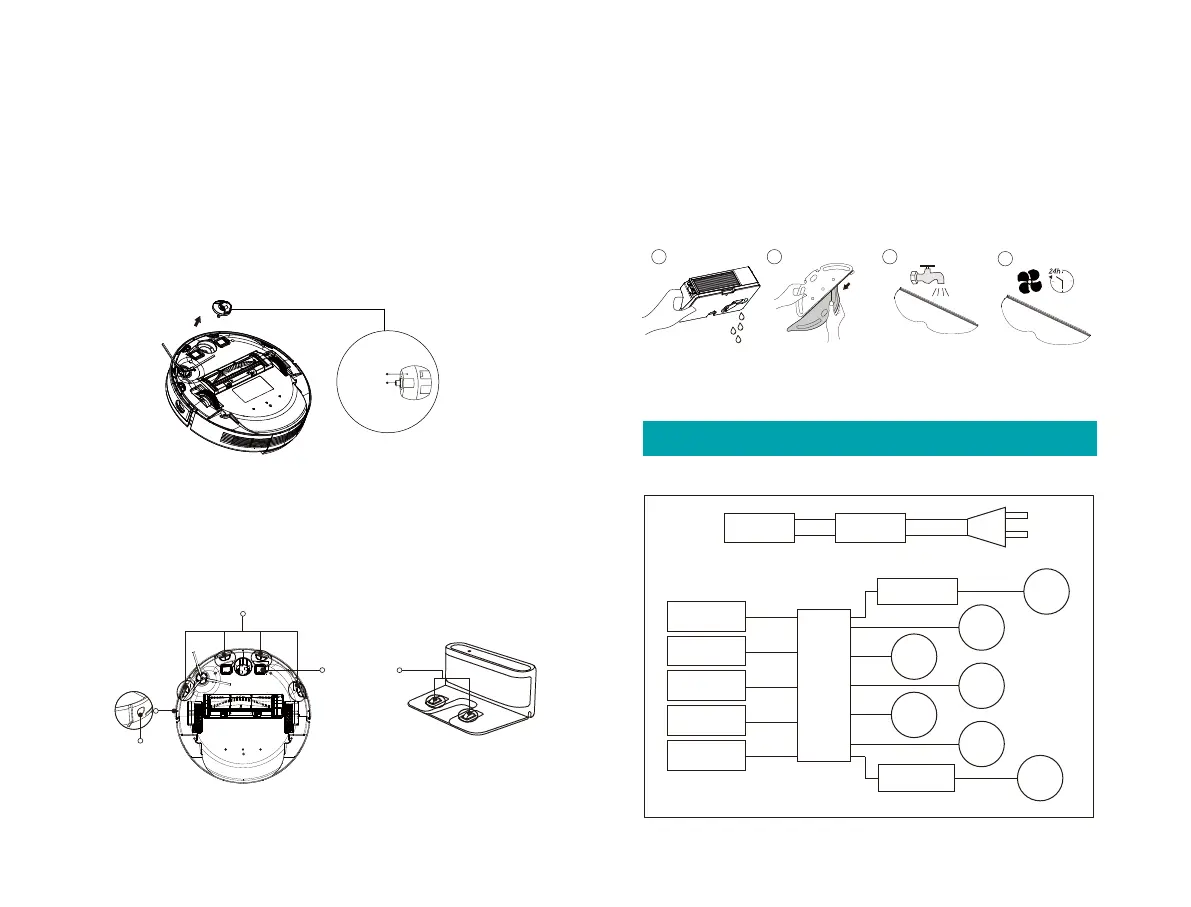

4. Clean casters
Hair or dust particles tend to be entangled around casters. Clean
them regularly or as needed.
A. Pull up casters to take them out.
B. Clean any hair or sundries entangled around casters or in any
caster chamber.
C. Reinstall casters and push them in till they click into place.
6. Clean the mop module
It is recommended to empty the water accumulated in the water
tank, wash the mopping cloth with water, and air dry it aer using
the mop module every time to avoid mildew or peculiar smell.
5. Clean sensors and charging electrodes
In order to ensure optimum operating conditions, please clean
sensors and charging electrode regularly, and wipe dust off them
with a so dry cloth or sweep brush.
Caster
Sha
Anti-drop sensor
Charging
electrode
Along-wall
sensor
D
A B C
Electrical Diagram
Charging Board Power Adapter
Control Board
Baery
Charging Port
Mop Sensor
Le Wheel
Speed Sensor
Side Brush
Motor
Fan
Radar
Main Brush
Motor
Le Wheel
Motor
Right Wheel
Motor
Power
Plug
Dust Compartment
Sensor Board
Water Tank Sensor
Right Wheel
Speed Sensor
Water
Pump
Motor

VIOMI V3 Max Specifications
