Section 3: Product Overview

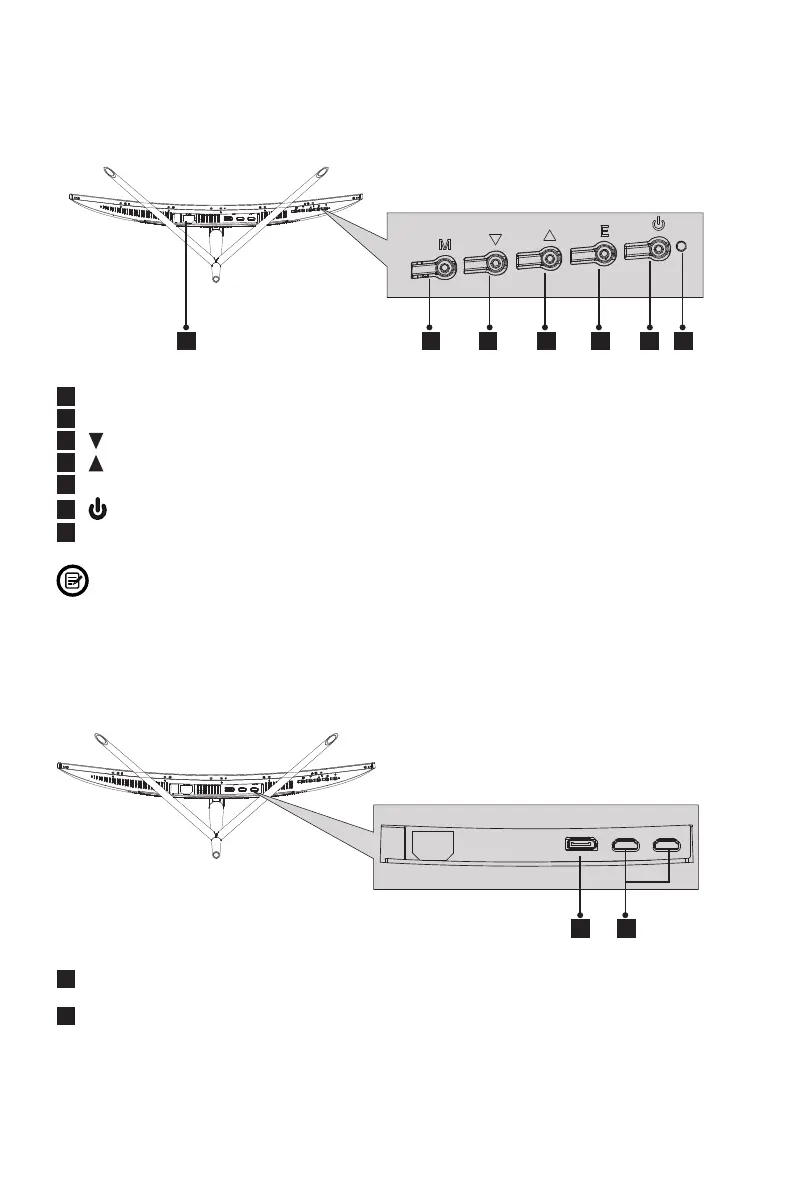

3.1 – Monitor Buttons
8
DP Connector: Insert one end of the DP cable into the computer’s DP output and
connect the other end to the monitor’s DP port.
9
HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output
and connect the other end to the monitor’s HDMI port.
8 9
1 3 4 5 6 7 2
1
Power Connector: Insert the power cable to supply power to the monitor.
2
M Menu Button
: Press to display the OSD menu or enter sub-menus.
3
Down Button: Press to move down in the menus.
4
Up Button: Press to move up in the menus.
5
E Exit Button: Press to exit.
6
Power Button: Press to turn the monitor on/off.
7
LED Indicator: Changes colors to indicate status. Refer to Section 8.
The E button can also be used to switch between two color gamuts when a compatible
graphics card and either HDMI or DP connections are in use.
