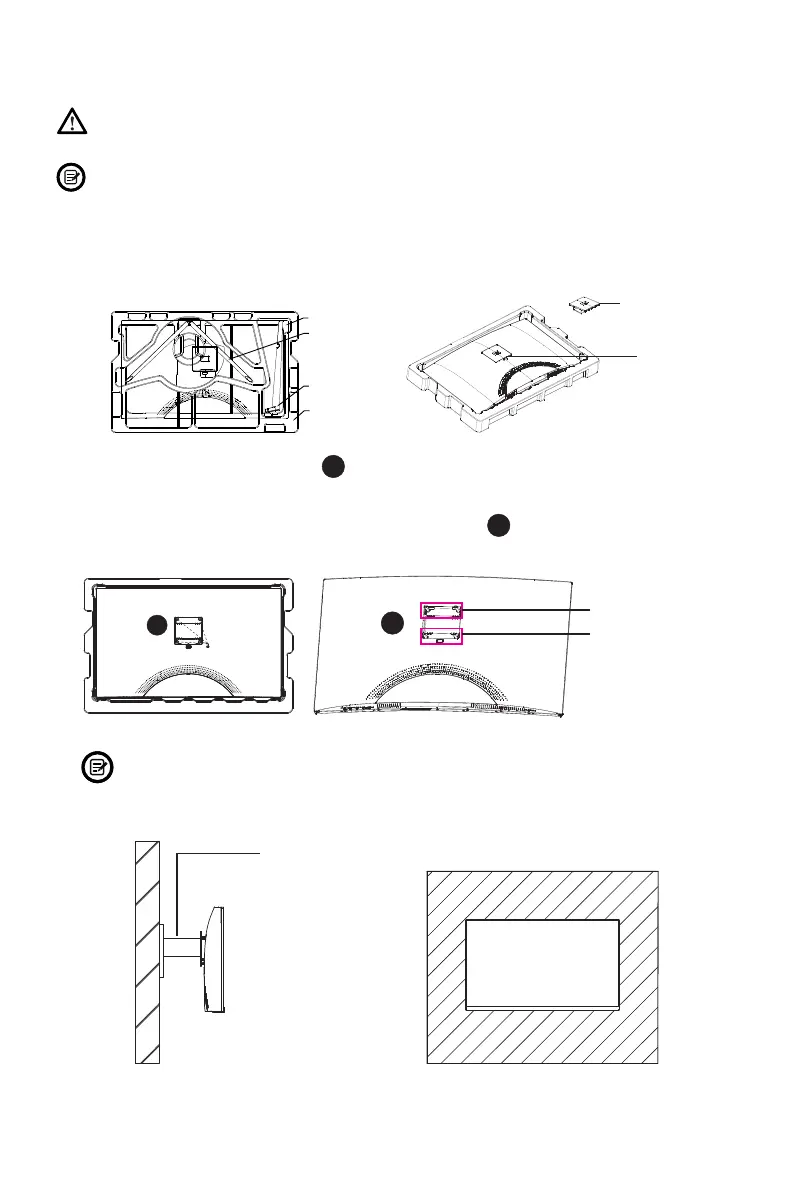

Section 5: Mount Installation
This monitor ONLY includes screws which may be used when attaching the monitor to a e
mount. No mount or mounting accessory is included.
Keep the foam underneath the monitor before attaching the stand to a mount or
accessory.
1. Open the package, take out the product with foam still attached, and gently place it on a
desktop or table. Remove the extra parts and the foam covering the back of the monitor
and press the button to remove the stand plate. If the monitor is already attached to the
stand, remove the stand.
Monitor
Stand Base
Foam
Stand Stem
Button
Stand Plate
2. Remove the original screws x 4 (
1
) from the opening in the back of the monitor. Follow
the directions received with your mount, stand, or accessory and install the monitor on the
wall or xture as desired. Remember to use the included NO. 2 screws when attaching
anything to the back of the monitor. Refer to the image (
2
) for correct screw placement.
1
Use the 30mm
NO. 2 Screws x 2
Use the 26mm
NO. 2 Screws x 2
2
- Do not discard the original screws.
- Use only the NO. 2 Screws (30 mm x 2 pcs, 26mm x 2 pcs) provided. You MUST
follow the gure above to nish the installation.
Mount
(Not included)
To Next Page
