H1/11 RED (+)12V constant power input
Before connecting this wire, remove the supplied fuse. Connect to the battery
positive terminal or the constant 12V supply to the ignition switch.
NOTE: Always use a fuse within 12 inches of the point you obtain (+)12V.
Do not use the 15 amp fuse in the harness for this purpose. This fuse protects
the module itself.

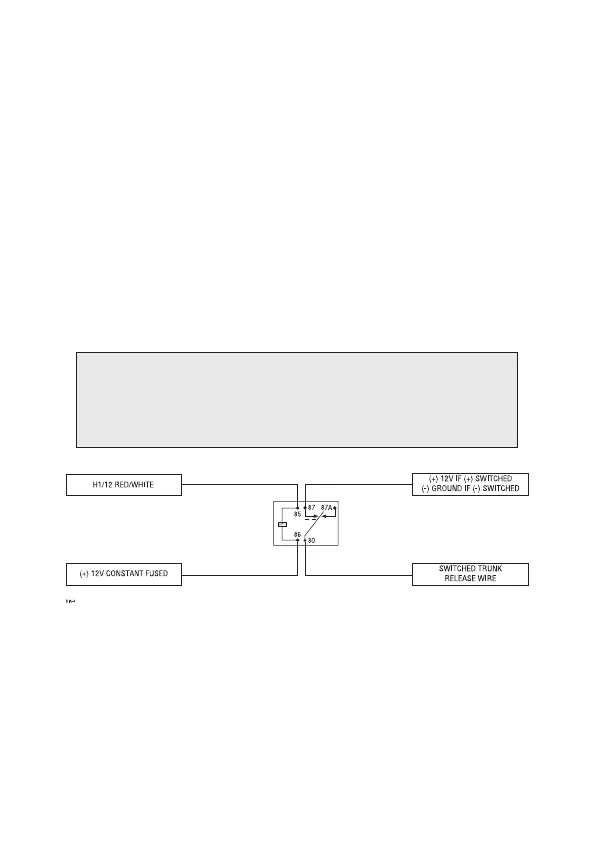

H1/12 RED/WHITE 200 mA (-) channel 2 output
When the system receives the code controlling channel 2 for longer than 1.5
seconds, the RED/WHITE will supply an output as long as the transmission
continues. This is often used to operate a trunk/hatch release or other relay/
driven function.
IMPORTANT! Never use this wire to drive anything but a relay
or a low-current input! The transistorized output can only supply
200 mA of current. Connecting directly to a solenoid, motor, or
other high-current device will cause it to fail
.
