82089E (1) – 2012-04-10 FANG 20 / FANG 20T 9
USER MANUAL
ENGLISH

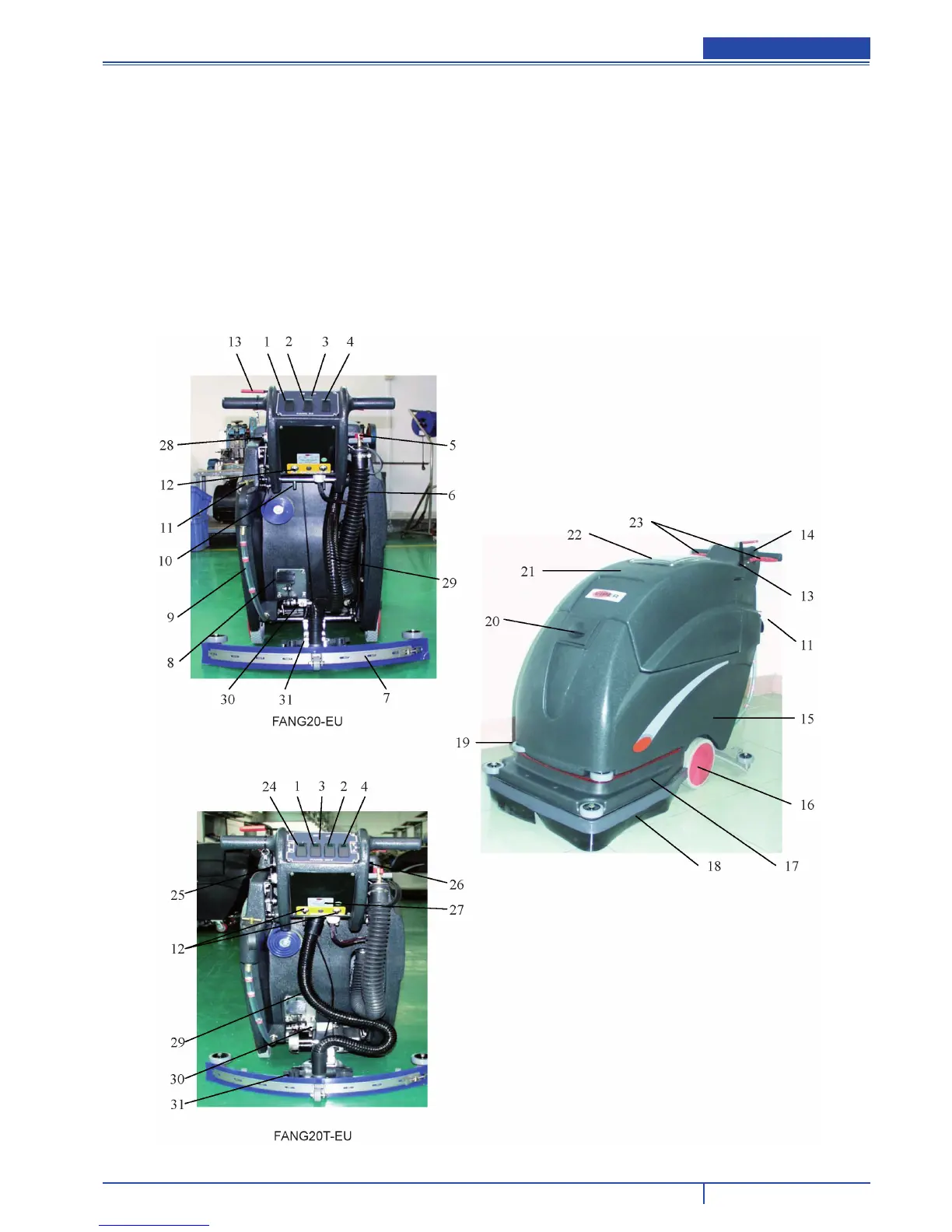

MACHINE DESCRIPTION
MACHINE STRUCTURE
(1) Vacuum ON/OFF switch
(2) Brush ON/OFF switch
(3) Battery level light
(4) Solution ON/OFF switch
(5) Solution control knob
(6) Recovery tank drain hose
(7) Squeegee assembly
(8) Brush lift foot pedal
(9) Solution tank level sight tube
(10) Console adjustment levers
(11) Rear solution fill
(12) Circuit breakers
(13) Squeegee lift lever
(14) Control housing
(15) Solution tank
(16) Transport wheels
(17) Scrub head
(18) Scrub head skirt
(19) Protective rollers
(20) Front solution fill
(21) Recovery tank
(22) Recovery tank lid
(23) Operating triggers
(24) Main power ON/OFF switch
(25) Reverse switch
(26) Speed control knob
(27) Name plate/technical data
(28) Key switch
(29) Squeegee vacuum hose
(30) Squeegee adjustment nut & shaft
(31) Squeegee mounting handwheel
