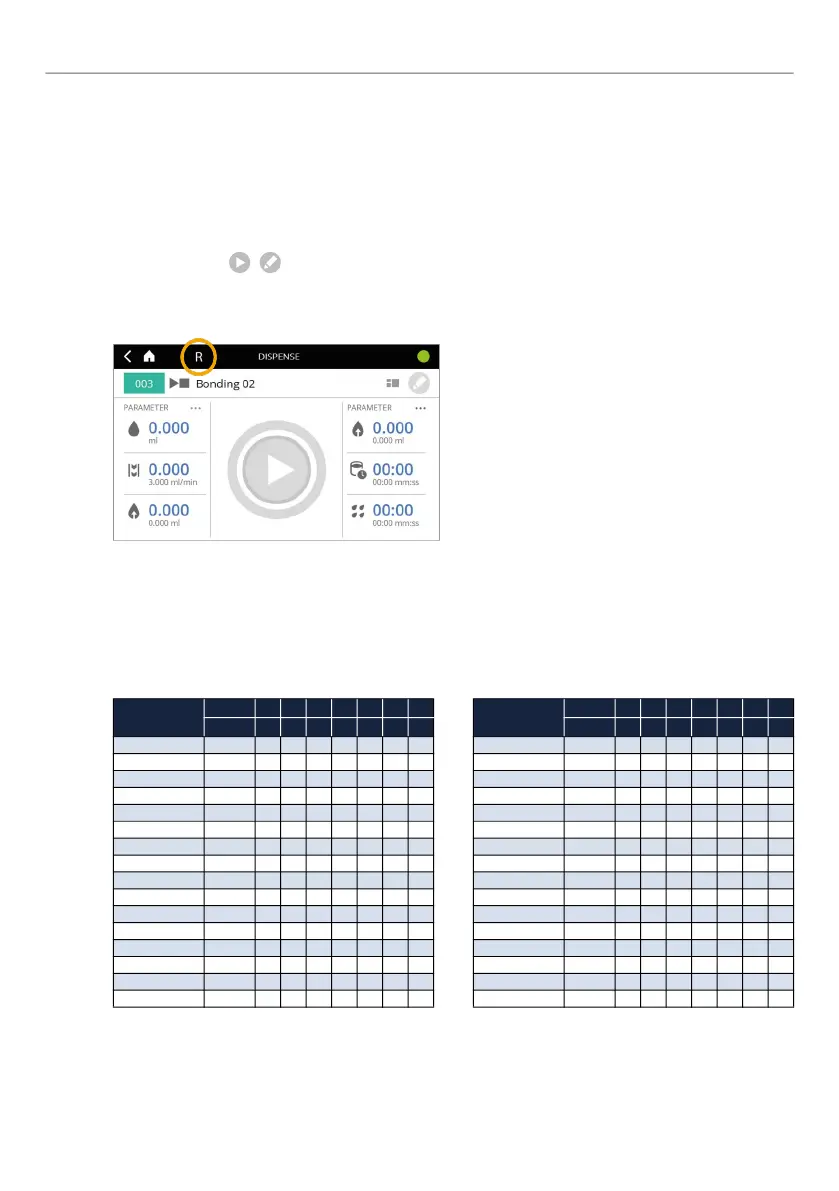

90 / 120 INST-007080 / Eeco-CONTROL EC200 2.0
EXPLANATIONS OF THE OPERATING MODES
7.3 Dosing using external control unit
7.3.1
Signal value for external program selection
The program can be determined using 7 digital inputs (see table below).
External operation is activated using the digital input X3.11. The user interface switches to
the last program used and is locked.
In this mode, the user can no longer perform any manual operations and the operating
elements (e. g. , ) are greyed out (Fig. 163). Starting dosing (X1.16) and changing
program (X3.4) can thus only be carried out from an external control unit. An R is displayed
in the header.
Fig. 163
Prog. No.
Pin X3
10 3 9 2 8 1 7
Prog. No.
Pin X3
10 3 9 2 8 1 7
Bit
6 5 4 3 2 1 0
Bit
6 5 4 3 2 1 0
0
0 0 0 0 0 0 0
1
0 0 0 0 0 0 1
2
0 0 0 0 0 1 0
3
0 0 0 0 0 1 1
4
0 0 0 0 1 0 0
5
0 0 0 0 1 0 1
6
0 0 0 0 1 1 0
7
0 0 0 0 1 1 1
8
0 0 0 1 0 0 0
9
0 0 0 1 0 0 1
10
0 0 0 1 0 1 0
11
0 0 0 1 0 1 1
12
0 0 0 1 1 0 0
13
0 0 0 1 1 0 1
14
0 0 0 1 1 1 0
15
0 0 0 1 1 1 1
16
0 0 1 0 0 0 0
17
0 0 1 0 0 0 1
18
0 0 1 0 0 1 0
19
0 0 1 0 0 1 1
20
0 0 1 0 1 0 0
21
0 0 1 0 1 0 1
22
0 0 1 0 1 1 0
23
0 0 1 0 1 1 1
24
0 0 1 1 0 0 0
25
0 0 1 1 0 0 1
26
0 0 1 1 0 1 0
27
0 0 1 1 0 1 1
28
0 0 1 1 1 0 0
29
0 0 1 1 1 0 1
30
0 0 1 1 1 1 0
31
0 0 1 1 1 1 1
