This is to awake the CPU of the UPS without the
presence of utility power.
Green LED lights up to indicate Utility is normal.
Amber LED lights up to indicate the UPS inverter is
on.
Red LED lights up to indicate the UPS is in an
abnormal condition.
By pressing the button for 3 ~5 seconds to start up
the Inverter. Press 3~5 seconds again to turn off the
UPS.
To scroll up the selectable items on LCD display
To scroll down the selectable items on LCD display
By pressing the button, the Alarm will be
automatically in silence.
By pressing the button, the UPS will enter into Self-
test mode.
This is to indicate the measurements of the UPS,
including Input Voltage, Output Voltage, Output
Frequency, Load Percentage, Inner Ambient
Temperature, Battery Voltage, Fault Conditions.
This is an interface to send signals to and receive
signals from the computer. Compatible UPS
software may be required. Please refer to Chapter
1.5 for its pin assignments.

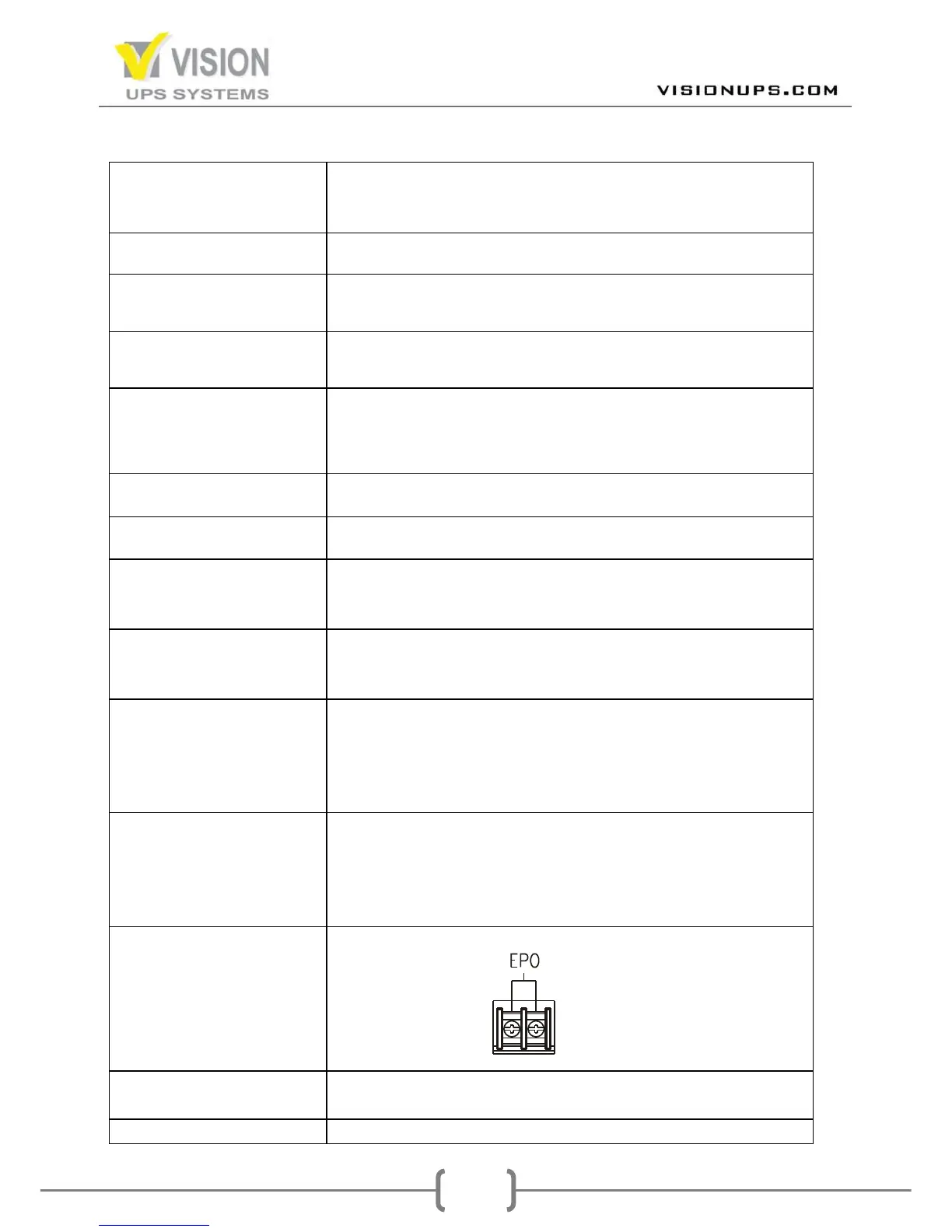

12. UPS O/P Control
Terminal
It provides a signal for Emergency Power Off
purpose.
It is an optional feature used for SNMP card and
other communication card.
It is a DC 100A/660Vac or 63A/660Vac x 2pcs fuses
To Next Page
