Vista 12 - Enclosure Assembly; STEP 1 | TOP; STEP 2

To Next Page

To Previous Page

TRUGOLF

8 9

VISTA 10/12

ENCLOSURE

STEP 1 | TOP

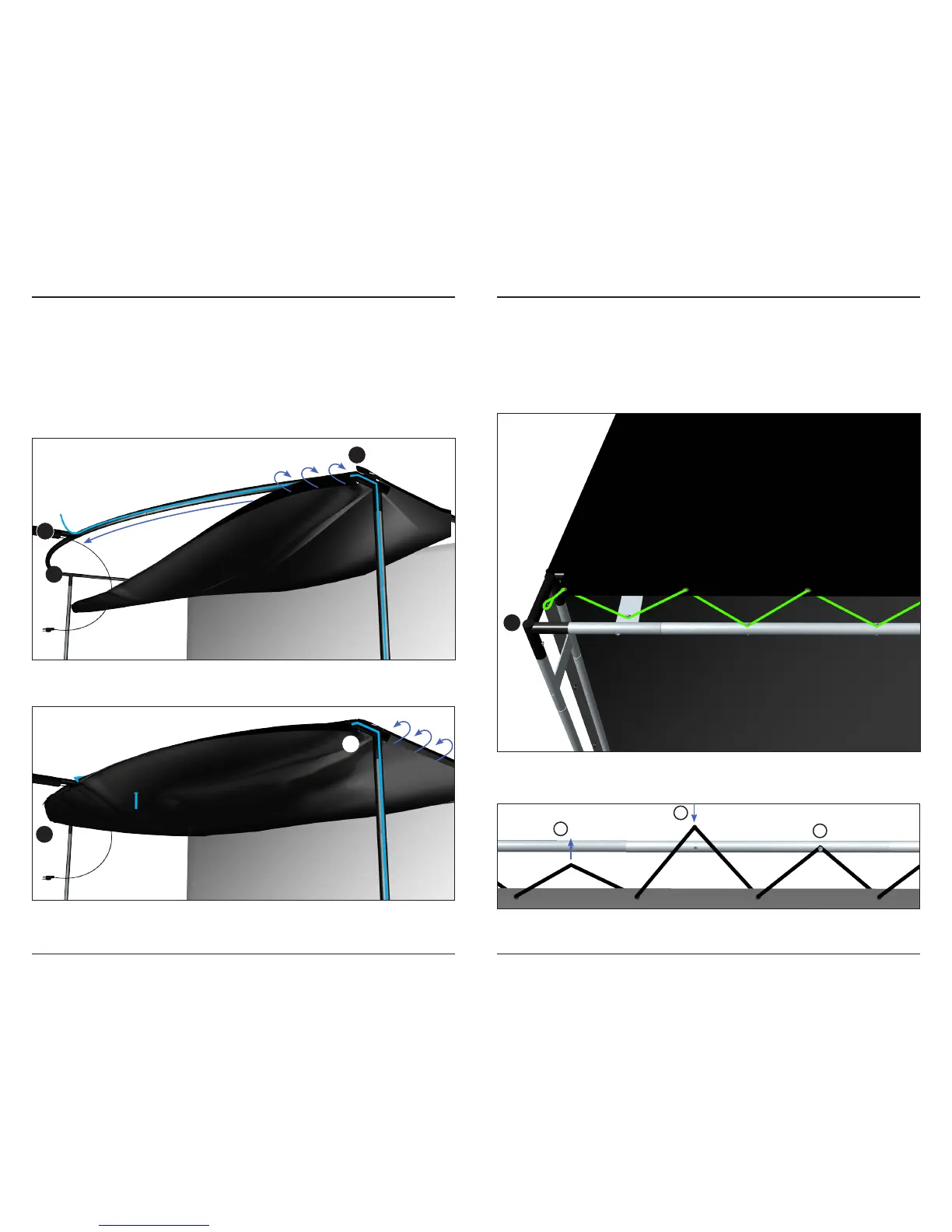

The enclosure is attached by stretching the fabric around the frame attaching

the fabric back onto itself using the Velcro.

2 Cables will need to be run along the frame as you wrap.

1. BNC cable (50ft)

2. Power Extension cord for overhead light

Begin installing the top enclosure at pieces [CC] & [DD] working your way

towards [Q], include the cables as you go. Feed BNC cable end through the

hole in the ceiling

Next, starting from [CC] & [DD] work your way long the sides towards the

back of the frame, stretching the fabric around the frame attaching the

fabric back onto itself using the Velcro.

STEP 2 | TOP BUNGEES

Once the top sides have been attached, continue securing the enclosure

back edge to the frame using the integrated bungee system.

TIP: This is done in a similar fashion used to attach the screen.

First, attach the ends of the bungee cord to the frame as shown below.

Next, stretch bungee cord onto the TOP KNOBS to create a zigzag pattern,

moving from the center out to the ends.
