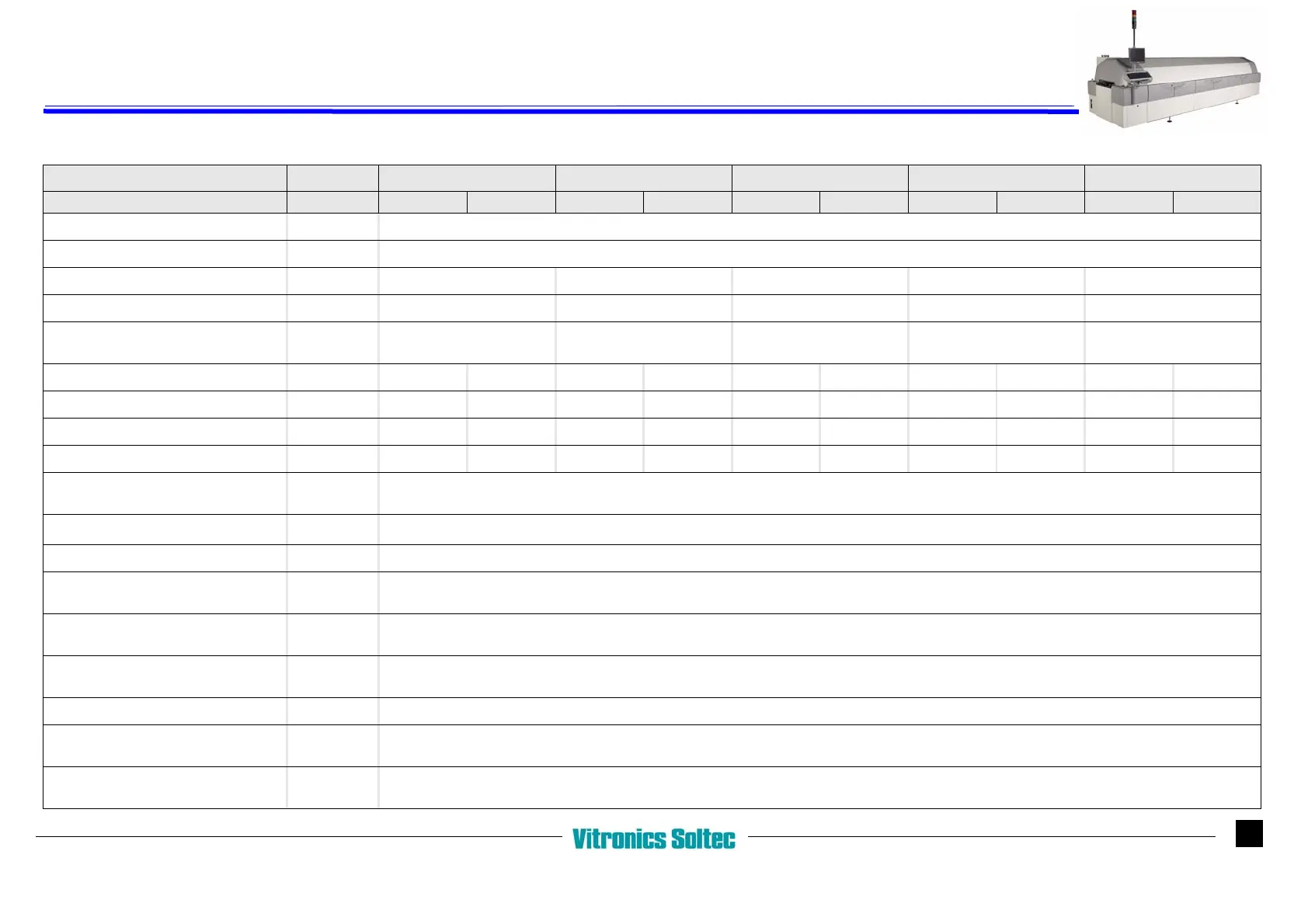

DESCRIPTION UNITS MR 820 MR 930 MR 1020 MR 1040 MR1130
AIR OR NITROGEN A N A N A N A N A N
Input Voltage V 3 x 400 (Supply tolerance +10%, -10%)
Frequency Hz 50/60
Start-Up power kVA 54 55 55 56 56
Slow Start-Up power kVA 44 44 44 44 44
Power required at setpoint (depending on
configuration, load and setpoints)
kVA 9 10 10 11 11
Weight machine (maximum) kg/lb 2300/5071 2500/5522 2200/4850 2700/5952 2200/4850 2700/5952 2700/5952 2900/6393 2700/5952 2900/6393
Force per leveling foot N 5750 6250 6250 6750 6250 6750 6750 3625 6750 3625
Pressure per leveling foot N/cm² 90.75 98.64 98.64 106.53 98.64 106.53 106.53 57.21 106.53 57.21
Pressure per leveling foot N/inch² 585 6.36 6.36 687 6.36 687 687 369 687 369
Nitrogen requirements minimum (only for
nitrogen machine)
bar/PSI 4.8 / 70
Nitrogen supply, maximum rate
m
3
/hr / cfh
50 / 1766
Nitrogen connection type 1/2” female NPT
Air Mode-No GRS - Exhaust volume at
single connection point (maximum)
m³/hr / cfm 450 /265 @ 300Pa
Air Mode-GRS-Nitrogen - Exhaust volume
at single connection point (maximum)
m³/hr / cfm 20 0/ 118@ 100Pa
Exhaust for Fast Cool Down (FCD) requires
two exhaust ports
m³/hr / cfm 800 / 470 @ 300
Exhaust connection mm / inch 165 / 6.50
Clearance for operate & maintenance
front,-, infeed,- and outfeedside
mm / inch 120 / 47.25
Clearance for operate & maintenance
backside
mm / inch 150 / 59.05
Installation sheets
myReflow 7038
VERSION November 2009
