This feature provides additional PID
information:
- Control Module Voltage (Volt):
Calculated Battery Voltage
- Fuel Level
- Barometric Pressure:
Shows calculations when
altitude changes occur.
Note: The list of PID’s shown are for
demonstration purposes only and the
actual PID’s show on your vehicle will
vary.
ENGINE ONE

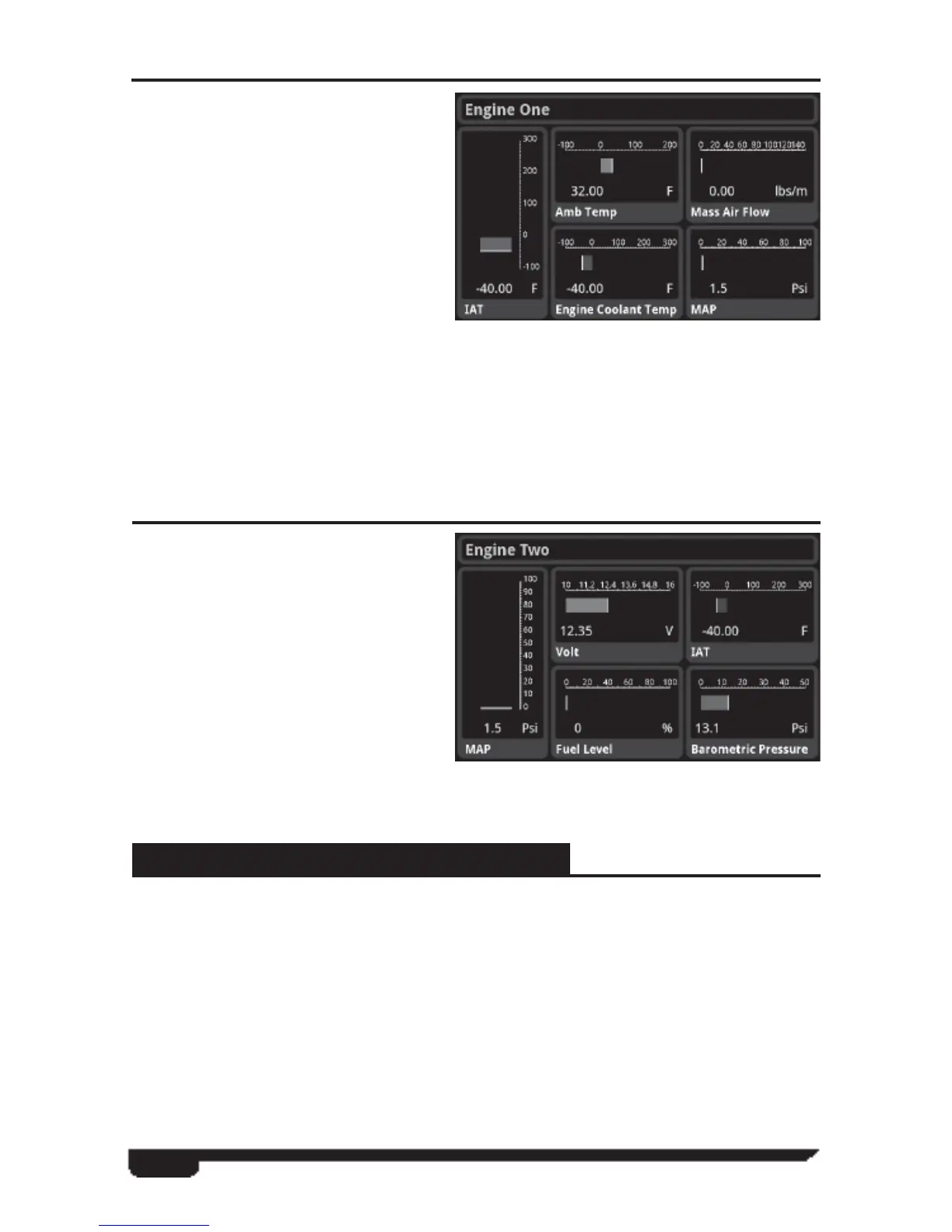

This feature provides you with
additional data. Here is a sample of
the different types of information that
can be monitored (display will vary by
application):
* Intake Air Temperature (IAT):
Monitors the temperature of the
incoming air into the engine.
* Ambient Air Temperature
(Amb Temp): Monitors outside
temperatures.
* Mass Air Flow: Airfl ow rate as measured by a mass
air fl ow sensor (MAF) if equipped.
* Engine Coolant Temperature
* Manifold ABS Pressure: Calculated air density from
the ECU determining the engines air mass fl ow rate.
CHANGING PID MEASURES IN DAQ
The three main DAQ features–Power Group, Engine One and Engine Two–have the
ability to adjust the diagnostic PID’s to be monitored. By touching and holding an
individual graph a list of additional PID’s are provided to customize the gauge.
PID Recording: This feature saves the data to a .CSV format on the ARCHOS that
you can save a copy to their PC for review at a later date. To record the data the user
would go into the specifi c application to be recorded, select the menu icon then start
recording. The user will be prompted to enter the name for the Log.
At this point you can customize the fi le name by touching the fi le name box and
entering the name with the ARCHOS keyboard. Select the Done Icon to move back.
Select ok to start recording.
These PID’s may be changed
on all engine screens
These PID’s may be changed
on all engine screens
