Vivint Element CT200 - Mounting Plate Installation

Wiring
Vivint Element CT200 Installation Guide
C
W
RH
G
Y

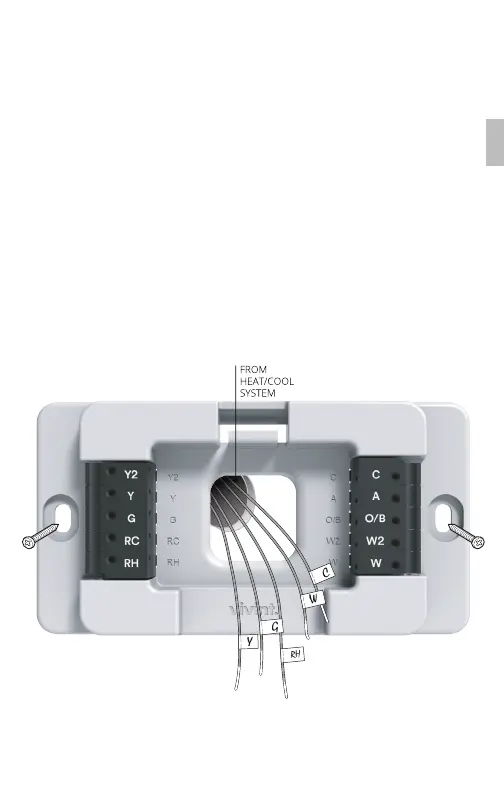

Attaching the Mounting Plate to the wall
1. Carefully pull the labeled wires through the center hole in the
mounting plate.
2. Position thermostat for best appearance to cover the hole in the
wall.
3. Mark rst and drill a ¼ in. (6mm) hole at each screw location.
4. If you are mounting the Thermostat to sheet rock or if you are
using the old mounting holes, use the plastic anchors provided.
5. Attach the Thermostat to the wall with the screws provided.
9
