A-STEP 7: Install Connector Brackets
G
F
N
S-A
T-A
D
E
M
S-A
T-A

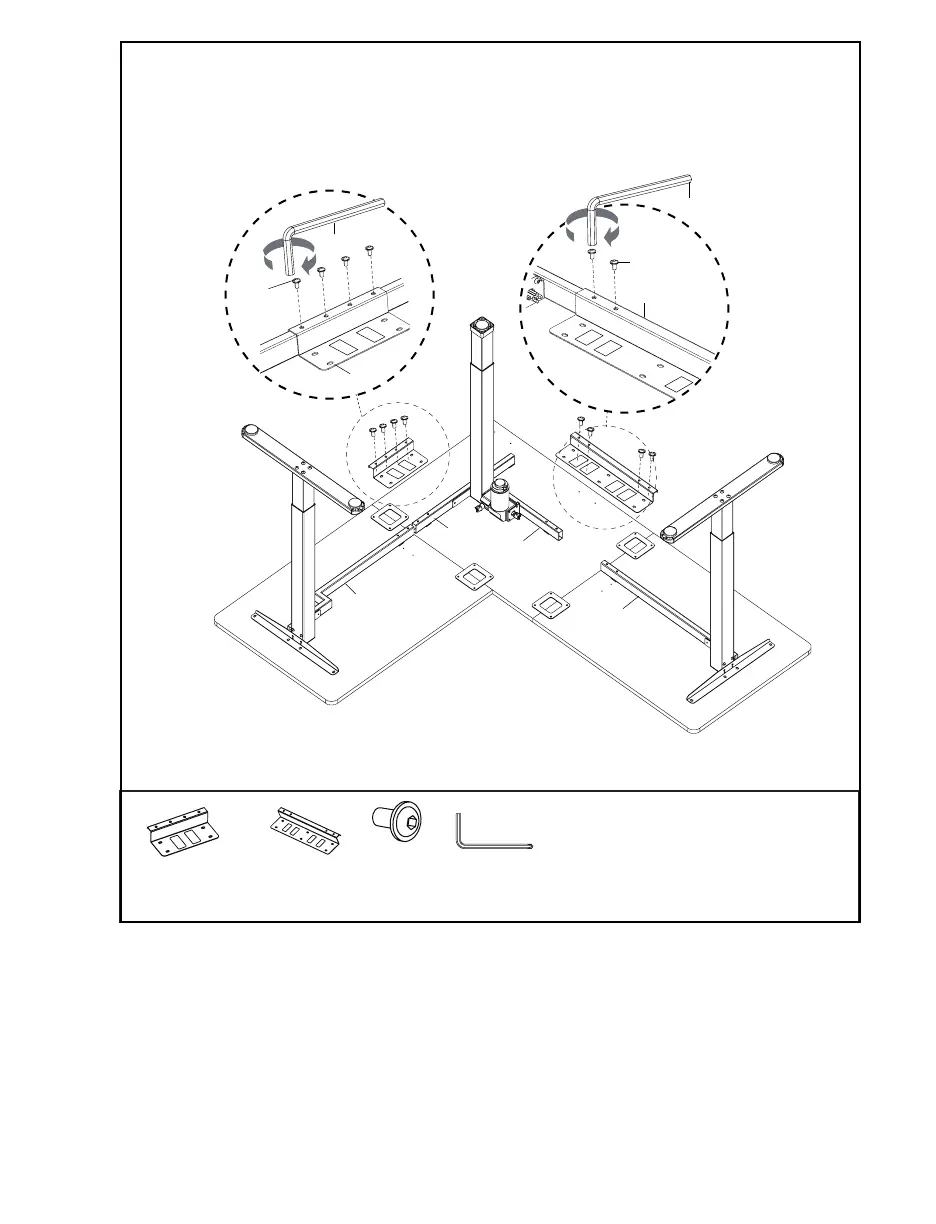

Begin connecting frame to desktop by placing assemblies on desktop as shown below. Connect
Angled Right Crossbar (G) and Right Crossbar (F) to Long Connector Bracket (N), M6x8mm
Screws (S-A), and 5mm Allen Wrench (T-A). Connect Short Connector Bracket (M) to Short Le
Crossbar (E) and Le Crossbar (D), using M6x8mm Screws (S-A), and 5mm Allen Wrench (T-A).
S-A x8)
M6x8mm
Screw
M x1)
Short Connector
Bracket
N x1)
Long Connector
Bracket
T-A
5mm Allen
Wrench
