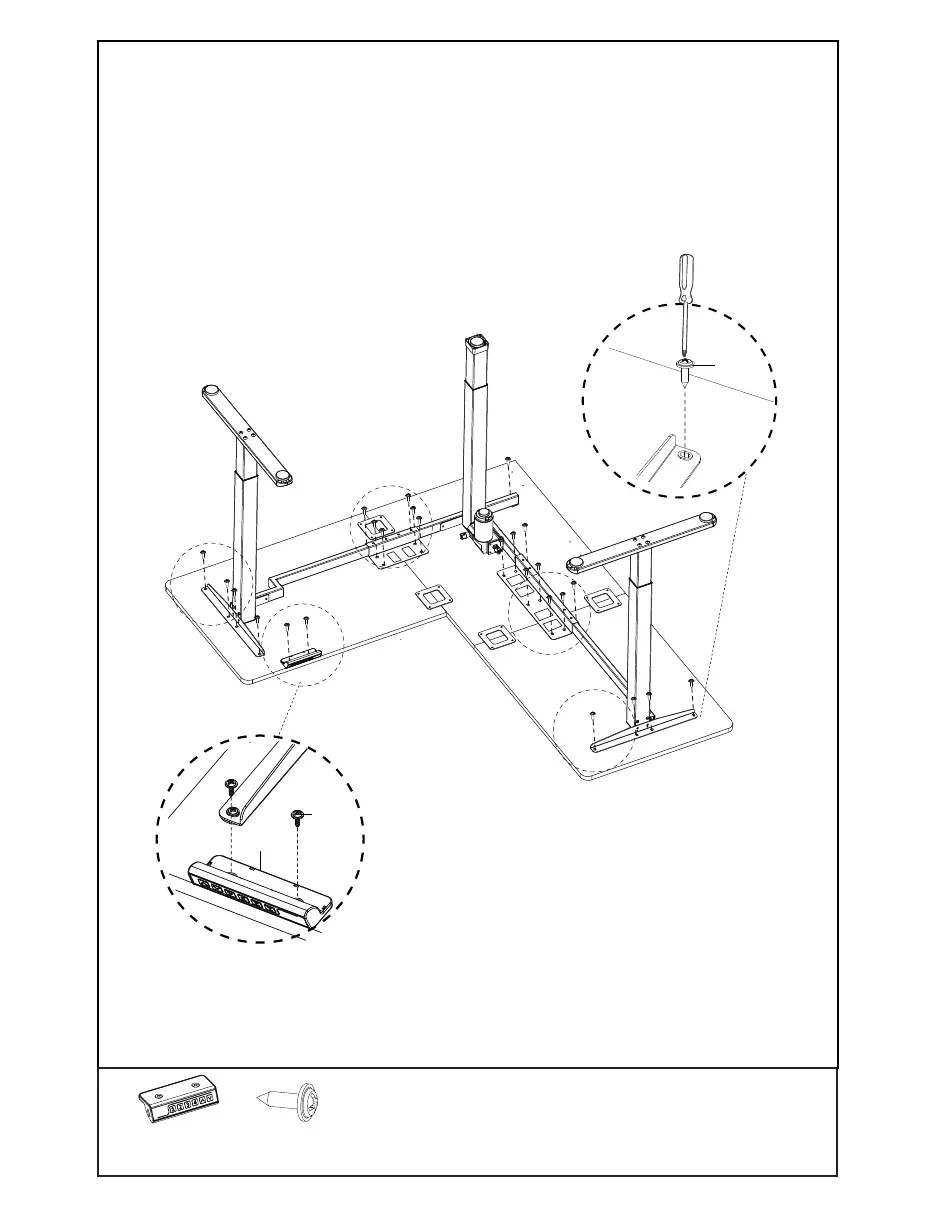

A-STEP 8: Secure Frame & Desktop
Q (x1)
Control Panel
Secure to desktop with M5x16mm Screws (S-C) and a Phillips screwdriver, using the screw
locations shown below. Connect Control Panel (Q) to desktop using M5x16mm Screws (S-C)
and a Phillips screwdriver.
Q
S-C
S-C
S-C (x25)
M5x16mm Screw
PLEASE NOTE: Some mounting locations may not be predrilled, requiring extra force to
install screws. For easier installation, mark mounting locations and predrill 3/8” (10mm)
deep holes using a 1/8” (3mm) drill bit.
