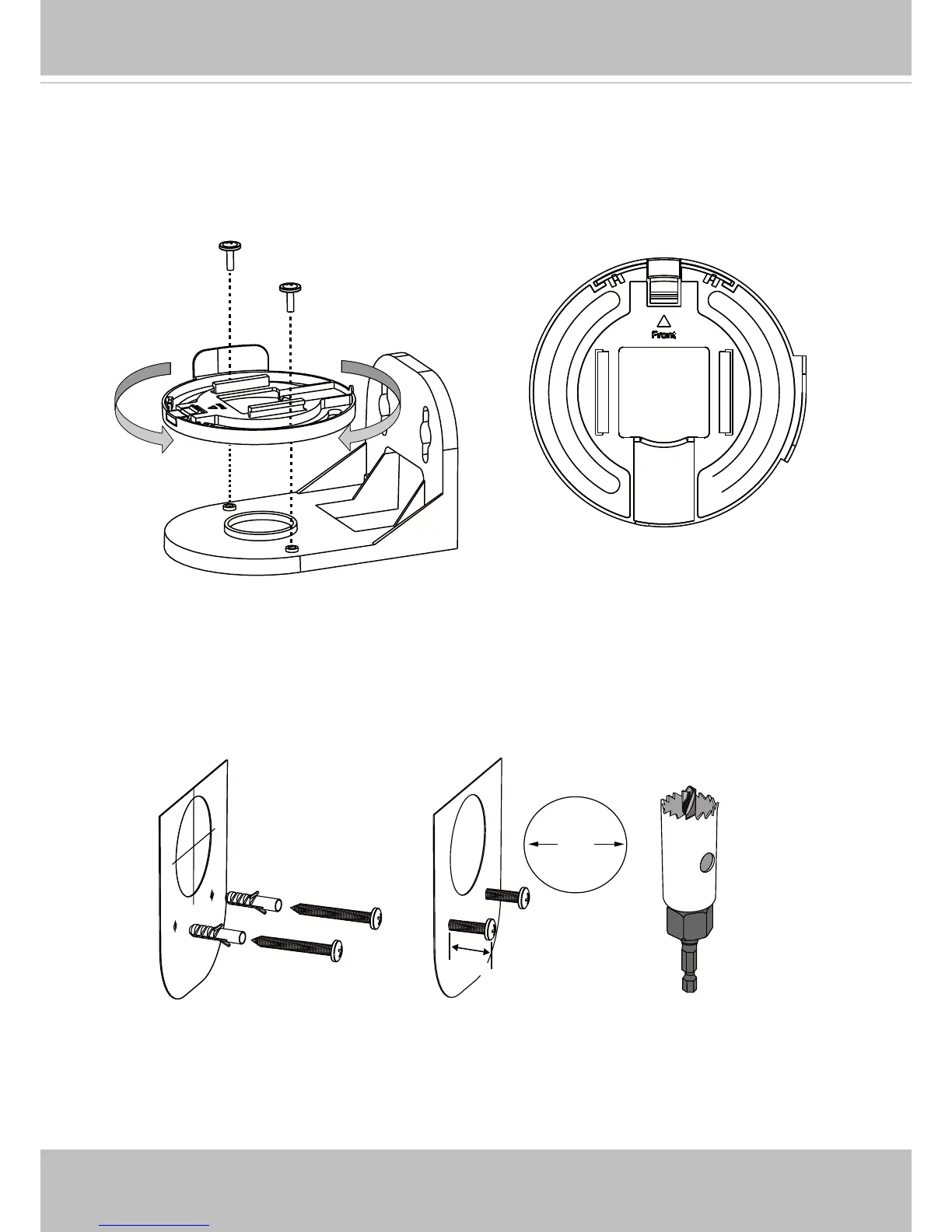

1. Attach the mount bracket to the wall-mount bracket, with the Front mark facing the shooting
direction. Note that you should turn the bracket to aim the Front mark at the shooting
direction.
2. Attach the alignment sticker to a preferred location.
3. Mark the drill holes and drive screws into the wall. Leave 15mm of the screws off the wall
surface.
4. If preferred, drill a 30mm cabling hole on the wall.
Wall Mount Procedure:
